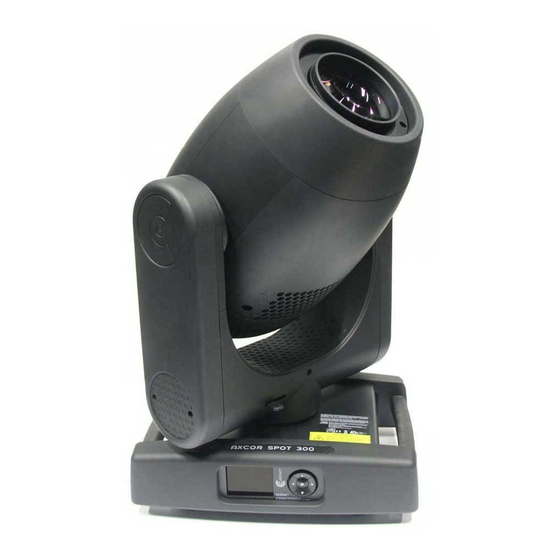

Claypaky AXCOR SPOT 300 Instruction Manual

Hide thumbs Also See for AXCOR SPOT 300:

Advertisement

Quick Links

INDEX
Page
Contents
2
3
4
5
7
15
15
AXCOR SPOT 3
INSTRUCTION MANUAL
Congratulations on choosing a Claypaky product
We thank you for your custom.
Please note that this product, as all the others in the rich
Claypaky range, has been designed and made with total
quality to ensure excellent performance and best meet your
expectations and requirements.
1
C61505

Advertisement

loading
Need help?

Need help?

Do you have a question about the AXCOR SPOT 300 and is the answer not in the manual?

Questions and answers

Related Manuals for Claypaky AXCOR SPOT 300

Summary of Contents for Claypaky AXCOR SPOT 300

  • Page 1: Table Of Contents

    We thank you for your custom. Please note that this product, as all the others in the rich Safety Information Claypaky range, has been designed and made with total quality to ensure excellent performance and best meet your Unpacking and preparation expectations and requirements.

  • Page 2: Safety Information

    SAFETY INFORMATION SAFETY INFORMATION IMPORTANT: Claypaky recommends you carefully read and keep the safety information on this product, also http://www.claypaky.it/en available in digital format at the following link: Ref: [FIS01A – Safety Information Axcor 300 series] INFORMAZIONI DI SICUREZZA IMPORTANTE: Claypaky raccomanda di leggere accuratamente e conservare le informazioni di sicurezza relative http://www.claypaky.it/en/download...

  • Page 3: Unpacking And Preparation

    UNPACKING AND PREPARATION Packing contents - Fig. 1 LOCKED UNLOCKED PAN Mechanism Lock and Release (every 90°) - Fig. 2 TILT Mechanism Lock and Release (every 45°) - Fig. 3 AXCOR SPOT 3...

  • Page 4: Installation And Start-Up

    INSTALLATION AND START-UP Installing the projector - Fig. 4 WARNING: with the exception of when the projector is positioned on the floor, the safety cable must be fitted. Cod. 105041/003 available on request). The projector can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall. This must be securely fixed to the support structure of the projector and then connected to the fixing point at the centre of the base.

  • Page 5: Control Panel

    NB: connecting one Axcor Spot 300 to the mains, it is possible to connect up to a maximum of 8 @200-240Vac - 3 @100-120Vac Axcor Spot 300 in parallel at the same time. Connecting to the mains supply - Fig. 6 DMX 512...
  • Page 6 Reversal of the display - Fig. 9 To activate this function, press UP and DOWN keys simultaneously while the display is in the rest mode. This status will be memorised and Setting the projector starting address maintained even for the next time it will be switched on. To return to the initial state, repeat the operation all over again. On each projector, the starting address must be set for the control signal (addresses from 1 to 512).

  • Page 7: Maintenance

    MAINTENANCE 1/4 Turn 1/4 Turn Locking and releasing Pan and Tilt movements - Refer to the instructions in the UNPACKING AND PREPARATION section. Opening the head covers - Fig. 10. Closing the head covers - Fig. 11. Continue AXCOR SPOT 3...
  • Page 8 Replacing rotating gobos (ø 22.9 mm - max 18 mm image – thickness max 1.1 mm) - Fig. 13 IMPORTANT: Use only glass gobos on the rotating gobos wheel. WARNING: Before using custom gobos contact Claypaky. COATED GLASS GOBOS TYPE 1...
  • Page 9 • Restoring lubrication of all parts subject to friction, using lubricants specifically supplied by Claypaky. • General visual check of the internal components, cabling, mechanical parts, etc.
  • Page 10 Cleaning of the filters - Fig. 16 AXCOR SPOT 3...
  • Page 11 Upper Side Upper Side Extraction of the effect modules - Fig. 17 IMPORTANT: Grasp the modules using the support structure and not the details which could get damaged. Insertion of the effect modules: Repeat the operations indicated in Fig. 17 and 18 in reverse order. Continue AXCOR SPOT 3...
  • Page 12 Upper Side Upper Side Extraction of the effect modules - Fig. 18 IMPORTANT: Grasp the modules using the support structure and not the details which could get damaged. Insertion of the effect modules: Repeat the operations indicated in Fig. 17 and 18 in reverse order. AXCOR SPOT 3...
  • Page 13 Fuse 5x20mm - T5A 250V Replacing fuse - Fig. 19 Continue AXCOR SPOT 3...
  • Page 14 Battery removal - Fig. 20 This product contains a rechargeable battery. To preserve the environment, please dispose the battery at the end of its life according to the regulation in force. AXCOR SPOT 3...

  • Page 15: Technical Information

    TECHNICAL INFORMATION LIGHT SOURCE (14.88") 180W White LED engine (7000 K) OPTICS 8°-40° linear zoom Motorised focus lens COLOR SYSTEM (14.88") CMY System One color wheel with 7 colors (including 1 CTO filter) EFFECTS SECTION One wheel with 7 rotating gobos One wheel with 10 fixed gobos Rotating 4-facet prism Mechanical Iris...
  • Page 16 Clay Paky - Via Pastrengo, 3/b - 24068 Seriate (BG) Italy - Tel. +39-035-654311 - Fax +39-035-301876 - www.claypaky.it S.p.A.
