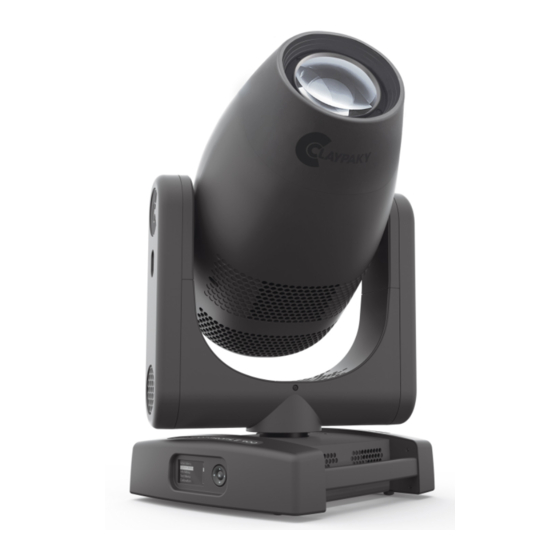

AXCOR PROFILE 600
AXCOR PROFILE 600 HC
INSTRUCTION MANUAL
INDEX
Congratulations on choosing a Claypaky product!
We thank you for your custom.
Please note that this product, as all the others in the
rich Claypaky range, has been designed and made with
total quality to ensure excellent performance and best
meet your expectations and requirements.
C61705
C61706
Advertisement
Table of Contents
Related Manuals for Claypaky AXCOR PROFILE 600
Summary of Contents for Claypaky AXCOR PROFILE 600
-
Page 1: Table Of Contents
We thank you for your custom. Page Contents Please note that this product, as all the others in the rich Claypaky range, has been designed and made with Safety information total quality to ensure excellent performance and best Unpacking and preparation meet your expectations and requirements. -
Page 2: Safety Information
1. SAFETY INFORMATION IMPORTANT: Claypaky recommends you carefully read and keep the safety information on this product, also SAFETY INFORMATION available in digital format at the following link: Ref: FIS00W - Safety Information Axcor 600 series www.claypaky.com IMPORTANTE: Claypaky raccomanda di leggere accuratamente e conservare le informazioni di sicurezza relative... -
Page 3: Unpacking And Preparation
2. UNPACKING AND PREPARATION 2 x 183102/805 Packing contents - Fig. 1 LOCKED UNLOCKED PAN Mechanism Lock and Release (every 90°) - Fig. 2 TILT Mechanism Lock and Release (every 45°) - Fig. 3 AXCOR PROFILE 600 600 HC... -
Page 4: 3.1 Installing The Fixture
This must be securely fixed to the support structure of the projector and then connected to the fixing point at the centre of the base. 3.2 Connecting to manis supply Connecting and disconnecting power cable - Fig. 5 AXCOR PROFILE 600 600 HC... -
Page 5: Connecting The Control Signal Line: Dmx / Art-Net
During menu setting status, after a wait time (about 30 seconds) without any key having been pressed, the display automatically returns to rest status. It should be noted than when this condition occurs, any possible value that has been modified but not yet confirmed with the key will be cancelled. Continue AXCOR PROFILE 600 600 HC... - Page 6 All that is needed is to press to momentarily activate the display and thus access the settings. Once the required operations have been carried out, the display will switch off again after a wait time of 30 seconds. AXCOR PROFILE 600 600 HC...
-
Page 7: Opening The Covers Maintenance
1/4 Turn CLICK!! Locking and releasing Pan and Tilt movements - Refer to the instructions in the UNPACKING AND PREPARATION section. Opening the head covers - Fig. 10. Closing the head covers - Fig. 11. Continue AXCOR PROFILE 600 600 HC... -
Page 8: Periodical Cleaning
• General cleaning of internal parts. • Restoring lubrication of all parts subject to friction, using lubricants specifically supplied by Claypaky. • General visual check of the internal components, cabling, mechanical parts, etc. -
Page 9: Effects Module Removal
Extraction of the effect modules: Preliminary operations - Fig. 13. NOTE: - Do not disconnect wiring harnesses when the fixtures is switched-on, to avoid to damage electronic boards. - Do not switch-on the fixtures with wiring harness disconnected. Continue AXCOR PROFILE 600 600 HC... - Page 10 Extraction of the effect modules: Preliminary operations - Fig. 14. NOTE: - Do not disconnect wiring harnesses when the fixtures is switched-on, to avoid to damage electronic boards. - Do not switch-on the fixtures with wiring harness disconnected. AXCOR PROFILE 600 600 HC...
- Page 11 Insertion of the effect modules: Repeat the operations indicated in Fig. 15, 16, 17 and 18 in reverse order. IMPORTANT: Grasp the modules using the support structure and not the details which could get damaged. Continue AXCOR PROFILE 600 600 HC...
- Page 12 Insertion of the effect modules: Repeat the operations indicated in Fig. 15, 16, 17 and 18 in reverse order. IMPORTANT: Grasp the modules using the support structure and not the details which could get damaged. AXCOR PROFILE 600 600 HC...
- Page 13 Insertion of the effect modules: Repeat the operations indicated in Fig. 15, 16, 17 and 18 in reverse order. IMPORTANT: Grasp the modules using the support structure and not the details which could get damaged. Continue AXCOR PROFILE 600 600 HC...
-
Page 14: Cleaning Of The Filters
4.4 - Cleaning of the filters 1/4 Turn Cleaning of the filters - Fig. 18. AXCOR PROFILE 600 600 HC... - Page 15 1/4 Turn Cleaning of the filters - Fig. 19. Continue AXCOR PROFILE 600 600 HC...
-
Page 16: Rotating Gobos
25 ±0.1 Replacing rotating gobos (max 20 mm image – thickness 1 mm) - Fig. 21 - Before use custom gobos contact Claypaky; - The original gobos have a special coating designed specifically to resist to the high temperatures; - The rotating gobo wheel only use dichroic glass gobos (it is not possible to use metal gobos);... -
Page 17: Battery Removal
4.6 Battery removal This product contains a rechargeable battery. To preserve the environment, please dispose the battery at the end of its life according to the regulation in force. AXCOR PROFILE 600 600 HC... -
Page 18: Specifications
- CRI: at least 70, CT 6500K (Axcor Profile 600) Dimmer 16 bit electronic and linear; 3 dimmer curves - CRI: at least 90, CT 5600K (Axcor Profile 600 HC) Strobe 25 flash/sec, electronic, instant open and blackout Framing System 4 focal planes... - Page 20 - Via Pastrengo, 3/b - 24068 Seriate (BG) Italy - Tel. +39-035-654311 - Fax +39-035-301876 - www.claypaky.com Clay Paky S.p.A.
