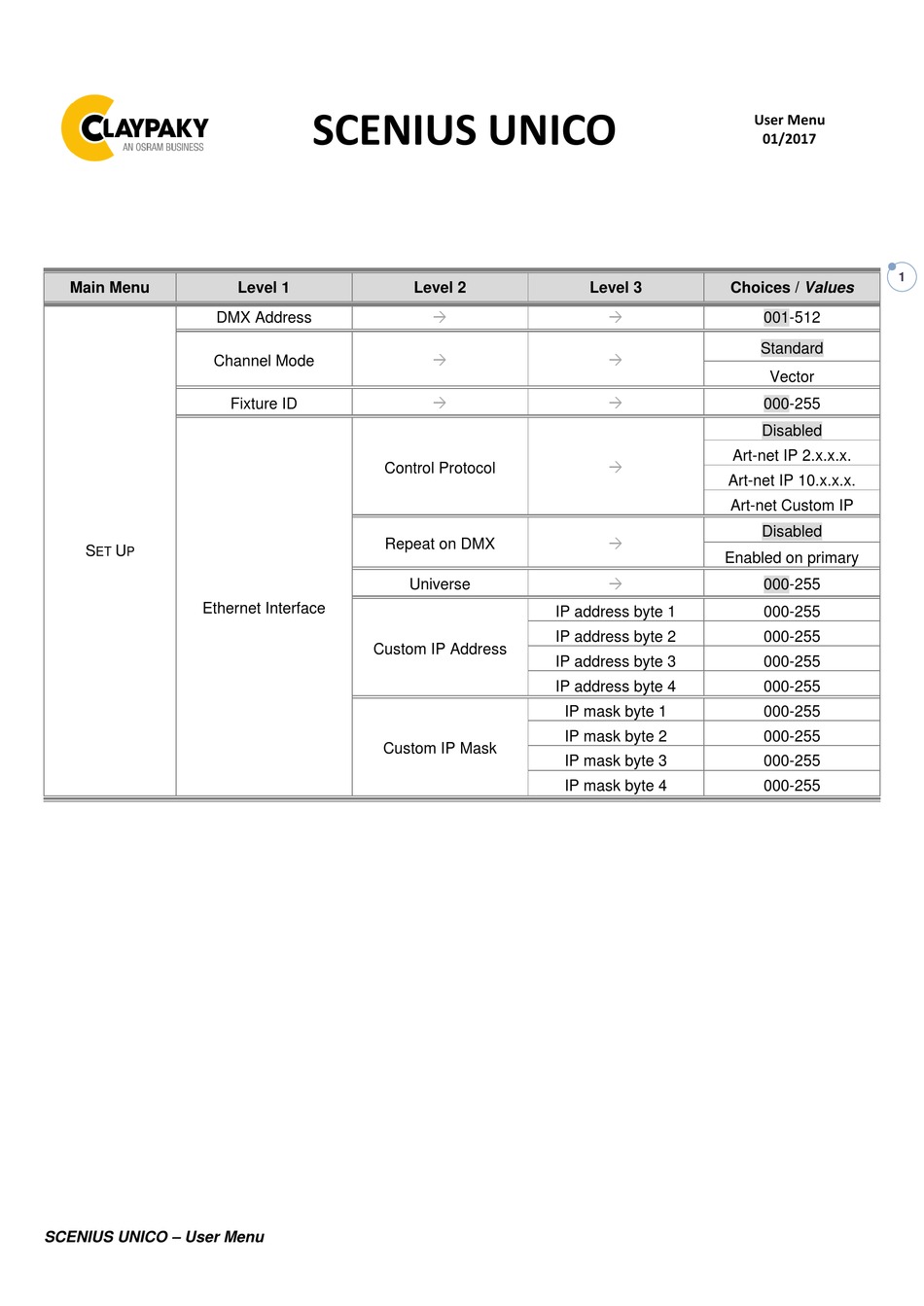

Page 1
Custom IP Address IP address byte 3 000-255 IP address byte 4 000-255 IP mask byte 1 000-255 IP mask byte 2 000-255 Custom IP Mask IP mask byte 3 000-255 IP mask byte 4 000-255 SCENIUS UNICO – User Menu...
Page 2
Setting Load preset 2 Are you sure ? User Preset 2 Save to preset 2 Yes / No Load preset 3 Are you sure ? User Preset 3 Save to preset 3 Yes / No SCENIUS UNICO – User Menu...
Page 3
Blades Speed (RPM) Lamp Speed (RPM) Sensor status Channels n.a / On / Off Indexing Active Rot. Gobo Indexing Indexing Required IP Address Network parameters IP Mask MAC Address SCENIUS UNICO – User Menu...
Page 4
Are you sure ? Changing …….. Setup Model Yes / No Access Code 1234 DVANCED Calibration Channels 000 - 255 Starting procedure ….. Rot. Gobo Indexing Yes / No Menu Locking Unlock Code XXXX SCENIUS UNICO – User Menu...
Page 5
It lets you to set the select the “IP Address” Art-net to be assigned, according to the control unit used, with values between 000 and 255. Custom IP Mask It lets you to set the select the “IP Mask” Art-net to be assigned, according to the control unit used, with values between 000 and 255. SCENIUS UNICO – User Menu...
Page 6
CMY color mixing mode (Cyan Magenta Yellow) Fixed wheel short-cut Used for optimizing color change time (select ON) so that the disc turns in the direction that requires shorter movement. Select OFF to turn off or disable this option. SCENIUS UNICO – User Menu...
Page 7
It lets you select the speed of the Blades from the two available: Normal Fast (default) DISPLAY It lets you activate (ON) display brightness reduction after about 30 seconds in idle status. Select OFF to turn off or disable this option. SCENIUS UNICO – User Menu...
Page 8
(*) DEFAULT PRESET It lets you restore default values on all option menu items and relevant submenus. Press the left and right arrows/keys simultaneously in the "main menu” to quickly restore default values (DEFAULT PRESET). SCENIUS UNICO – User Menu...
Page 9
It lets you view the hardware and software versions for each electronic board in the projector. CPU brd (CPU board) 0: PT-3f (Pan / Tilt board) 1: 8-Ch (8-channel board) 2: 8-Ch (8-channel board) 3: 8-Ch (8-channel board) 4: 8-Ch (8-channel board) SCENIUS UNICO – User Menu...
Page 10
NETWORK PARAMS Lets you view the projector "Network" parameters meaning: IP address: Internet Protocol address (two projectors must not have the same IP address) IP mask: 255.0.0.0 Mac address: Media Access Control; the projector’s Ethernet Address. SCENIUS UNICO – User Menu...
Page 11
It lets you run the rotating gobo wheel gobo indexing procedure. This operation may be necessary after projector maintenance/cleaning. MENU LOCKING It allows you to assign a password to lock the access to the user menu, so that only users know the password can change settings. The password is 4-digit number. SCENIUS UNICO – User Menu...
We thank you for your custom. Please note that this product, as all the others in the rich Safety information Claypaky range, has been designed and made with total quality Unpacking and preparation to ensure excellent performance and best meet your expectations and requirements.
SAFETY INFORMATION SAFETY INSTRUCTIONS IMPORTANT: Claypaky recommends you carefully read and keep the safety information on this product, also available in digital format at the following link: http://www.claypaky.it/en Ref: [FIS00L – Safety Information Scenius] INFORMAZIONI DI SICUREZZA IMPORTANTE: Claypaky raccomanda di leggere accuratamente e conservare le informazioni di sicurezza relative a questo prodotto, sempre reperibili in versione digitale al seguente link: http://www.claypaky.it/en/download...
UNPACKING AND PREPARATION 2 x 183102/805 LAM00I (fitted into fixture) Packing contents - Fig. 1 UNLOCKED LOCKED UNLOCKED LOCKED PAN Mechanism Lock and Release every 90°) - Fig. 2 TILT Mechanism Lock and Release every 45°) - Fig. 3 S ENIUS UNI O...
INSTALLATION AND START-UP Installing the projector - Fig. 4 The projector can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall. WARNING: with the exception of when the projector is positioned on the floor, the safety cable must be fitted. (Cod. 105041/001 available on request). This must be securely fixed to the support structure of the projector and then connected to the fixing point at the centre of the base.
CONTROL PANEL Mains Connecting to the mains supply - Fig. 6 DMX 512 5 PIN SCREEN SIGNAL SIGNAL Connecting to the control signal line DMX) - Fig. 7 Use a cable conforming to specifications EIA RS-485: 2-pole twisted, shielded, 120Ohm characteristic impedance, 22-24 AWG, low capacity. Do not use microphone cable or other cable with characteristics differing from those specified.
Page 17
Reversal of the display - Fig. 9 To activate this function, press UP and DOWN keys simultaneously while the display is in the rest mode. This status will be memorised and maintained even for the next time it will be switched on. To return to the initial state, repeat the operation all over again. Setting the projector starting address On each projector, the starting address must be set for the control signal (addresses from 1 to 512).
MAINTENANCE 1/4 Turn 1/4 Turn 1/4 Turn CLICK!! Locking and releasing Pan and Tilt movements - Refer to the instructions in the UNPACKING AND PREPARATION section. Opening the head covers - Fig. 10. Closing the head covers - Fig. 11. Continue S ENIUS UNI O...
Page 19
• General cleaning of internal parts. • Restoring lubrication of all parts subject to friction, using lubricants specifically supplied by Claypaky. • General visual check of the internal components, cabling, mechanical parts, etc.
Page 20
Cleaning of the filters - Fig. 13. Continue S ENIUS UNI O...
Page 21
Upper Side Upper Side Lower Side Extraction of the effect modules: Preliminary operations - Fig. 14. S ENIUS UNI O...
Page 22
Upper Side Lower Side Extraction of the effect modules: Preliminary operations - Fig. 15. Continue S ENIUS UNI O...
Page 23
Upper Side Extraction of the effect modules - Fig. 16. IMPORTANT: Grasp the modules using the support structure and not the details which could get damaged. Insertion of the effect modules: Repeat the operations indicated in Fig. 14, 15, 16, 17 and 18 in reverse order. S ENIUS UNI O...
Page 24
Upper Side Extraction of the effect modules - Fig. 17. IMPORTANT: Grasp the modules using the support structure and not the details which could get damaged. Insertion of the effect modules: Repeat the operations indicated in Fig. 14, 15, 16, 17 and 18 in reverse order. Continue S ENIUS UNI O...
Page 25
Upper Side Upper Side Lower Side Lower Side Lower Side Lower Side Extraction of the effect modules - Fig. 18. IMPORTANT: Grasp the modules using the support structure and not the details which could get damaged. Insertion of the effect modules: Repeat the operations indicated in Fig. 14, 15, 16, 17 and 18 in reverse order. S ENIUS UNI O...
Page 26
Upper Side Lower Side Lamp change - Fig 20 Take the new lamp out of its package and insert in the fitting. WARNING: do not touch the lamp s envelope with bare hands. Should this happen, clean the bulb with a cloth soaked in alcohol and dry it with a clean, dry cloth.
Page 27
Bearing group replacement - Fig. 22 GOBO ROTANTI COATED GLASS GOBOS Grey/Black side away from lamp Reflective side towards the lamp Gobo orientation - Fig. 24 The pictures shown the correct gobos orientation. S ENIUS UNI O...
Page 28
Battery removal - Fig. 25 This product contains a rechargeable lithium iron tetraphosphate battery. To preserve the environment, please dispose the battery at the end of its life according to the regulation in force. LiFePO4 S ENIUS UNI O...
TECHNICAL INFORMATION (24.68") (23.93") (19.13") (31.61") (25.39") (16.14") (14.17") (14.50") POWER SUPPLIES EFFECTS SECTION ELECTRONICS 200-240V 50/60 Hz • One wheel with 6 rotating gobos • Long life self-charging buffer battery • Animation Wheel • ON/OFF lamp control from the lighting desk •...
