INDEX
Page Contents
2
Safety information
3
Unpacking and preparation
4
Installation and start-up
5
Control panel
8
Maintenance
11
Technical information

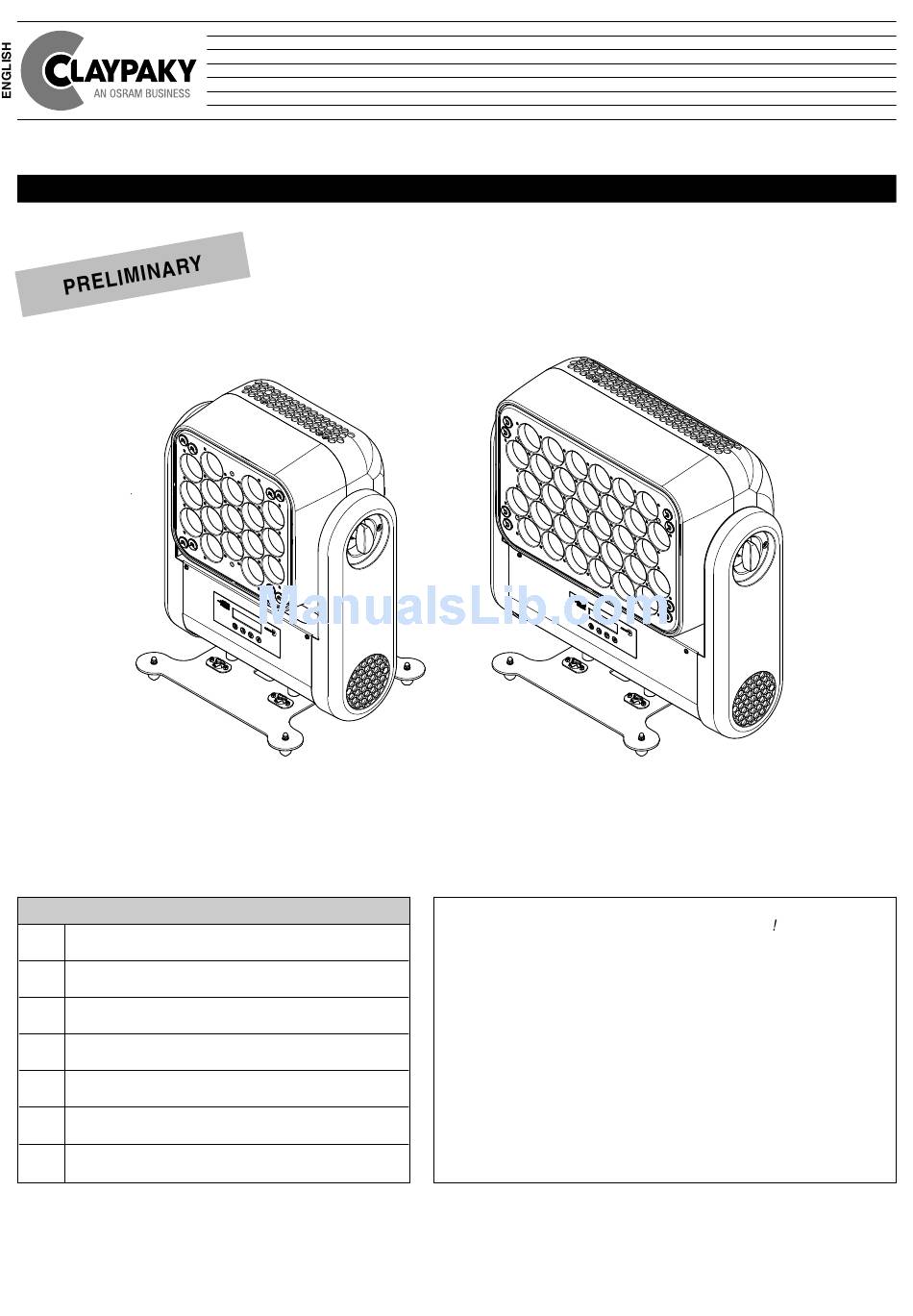

K-EYE S10 HCR
K-EYE S20 HCR
INSTRUCTION MANUAL
Congratulations on choosing a Claypaky product
We thank you for your custom.
Please note that this product, as all the others in the rich
Claypaky range, has been designed and made with total quality
to ensure excellent performance and best meet your expectations
and requirements.
1
C71320
C71310
Advertisement
Table of Contents
Related Manuals for Claypaky K-EYE S20 HCR
Summary of Contents for Claypaky K-EYE S20 HCR
- Page 1 We thank you for your custom. Please note that this product, as all the others in the rich Safety information Claypaky range, has been designed and made with total quality Unpacking and preparation to ensure excellent performance and best meet your expectations and requirements.
-
Page 2: Safety Information
SAFETY INFORMATION SAFETY INFORMATION IMPORTANT: Claypaky recommends you carefully read and keep the safety information on this product, also available in digital format at the following link: http://www.claypaky.it/en Ref: [FIS016 - Safety Information A.leda K-EYE series] INFORMAZIONI DI SICUREZZA IMPORTANTE: Claypaky raccomanda di leggere accuratamente e conservare le informazioni di sicurezza relative a questo prodotto, sempre reperibili in versione digitale al seguente link: http://www.claypaky.it/en/download... -
Page 3: Unpacking And Preparation
UNPACKING AND PREPARATION 2 x 183102/805 Packing contents - Fig. 1 Head tilt adjustment - Fig. 2 K-EYE S10 S20 HCR... -
Page 4: Installation And Start-Up
INSTALLATION AND START-UP Installing the projector - Fig. 3 WARNING: with the exception of when the projector is positioned on the floor, the safety cable must be fitted. (Cod. 105041/003 available on request). The projector can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall. This must be securely fixed to the support structure of the projector and then connected to the fixing point at the centre of the base. -
Page 5: Control Panel
CONTROL PANEL Mains Connecting to the mains supply - Fig. 5 DMX 512 5 PIN SCREEN SIGNAL SIGNAL DMX 512 3 PIN SIGNAL SCREEN SIGNAL Connecting to the control signal line (DMX) - Fig. 6 Use a cable conforming to specifications EIA RS-485: 2-pole twisted, shielded, 120Ohm characteristic impedance, 22-24 AWG, low capacity. Do not use microphone cable or other cable with characteristics differing from those specified. - Page 6 Reversal of the display - Fig. 9 To activate this function, press UP and DOWN keys simultaneously while the display is in the rest mode. This status will be memorised and maintained even for the next time it will be switched on. To return to the initial state, repeat the operation all over again. Setting the projector starting address On each projector, the starting address must be set for the control signal (addresses from 1 to 512).
- Page 7 - General cleaning of internal parts. - Restoring lubrication of all parts subject to friction, using lubricants specifically supplied by Claypaky. - General visual check of the internal components, cabling, mechanical parts, etc. - Electrical, photometric and functional checks; eventual repairs.
-
Page 8: Maintenance
MAINTENANCE Battery removal - Fig. 10 This product contains a rechargeable battery. To preserve the environment, please dispose the battery at the end of its life according to the regulation in force. K-EYE S10 S20 HCR... - Page 9 Opening the covers - Fig. 11 Continue K-EYE S10 S20 HCR...
- Page 10 Cleaning of the filters - Fig. 12 K-EYE S10 S20 HCR...
-
Page 11: Cause And Solution Of Problems
CAUSE AND SOLUTION OF PROBLEMS THE PROJECTOR WILL NOT SWITCH ON PROBLEMS ELECTRONICS NON-OPERATIONAL DEFECTIVE PROJECTION POSSIBLE CAUSES CHECKS AND REMEDIES REDUCED LUMINOSITY No mains supply. Check the power supply voltage. LED exhausted or defective. Call an authorised technician. Signal transmission cable faulty or disconnected. Replace the cables. - Page 12 Gamma Wave: Different chromatic curves for Firmware transfer from one light to another each color Macro: Dedicated color macro channel with 80 preselected colors Clay Paky - Via Pastrengo, 3/b - 24068 Seriate (BG) Italy - Tel. +39-035-654311 - Fax +39-035-301876 - www.claypaky.it S.p.A.
