INDEX
Page
Contents
2
Safety information
3
Unpacking and preparation
4
Installation and start-up
5
Control panel
7
Maintenance
14
Technical information

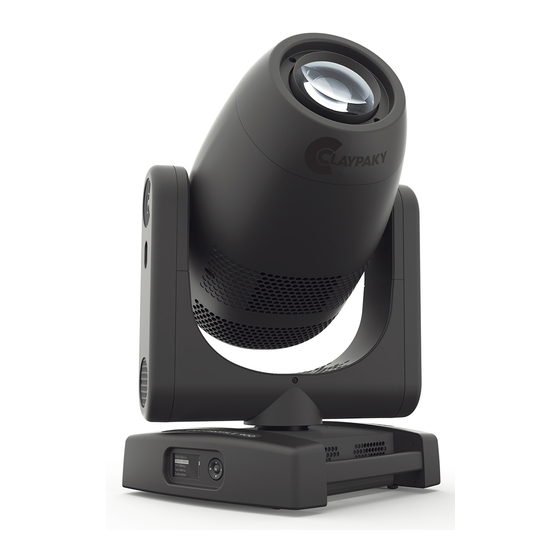

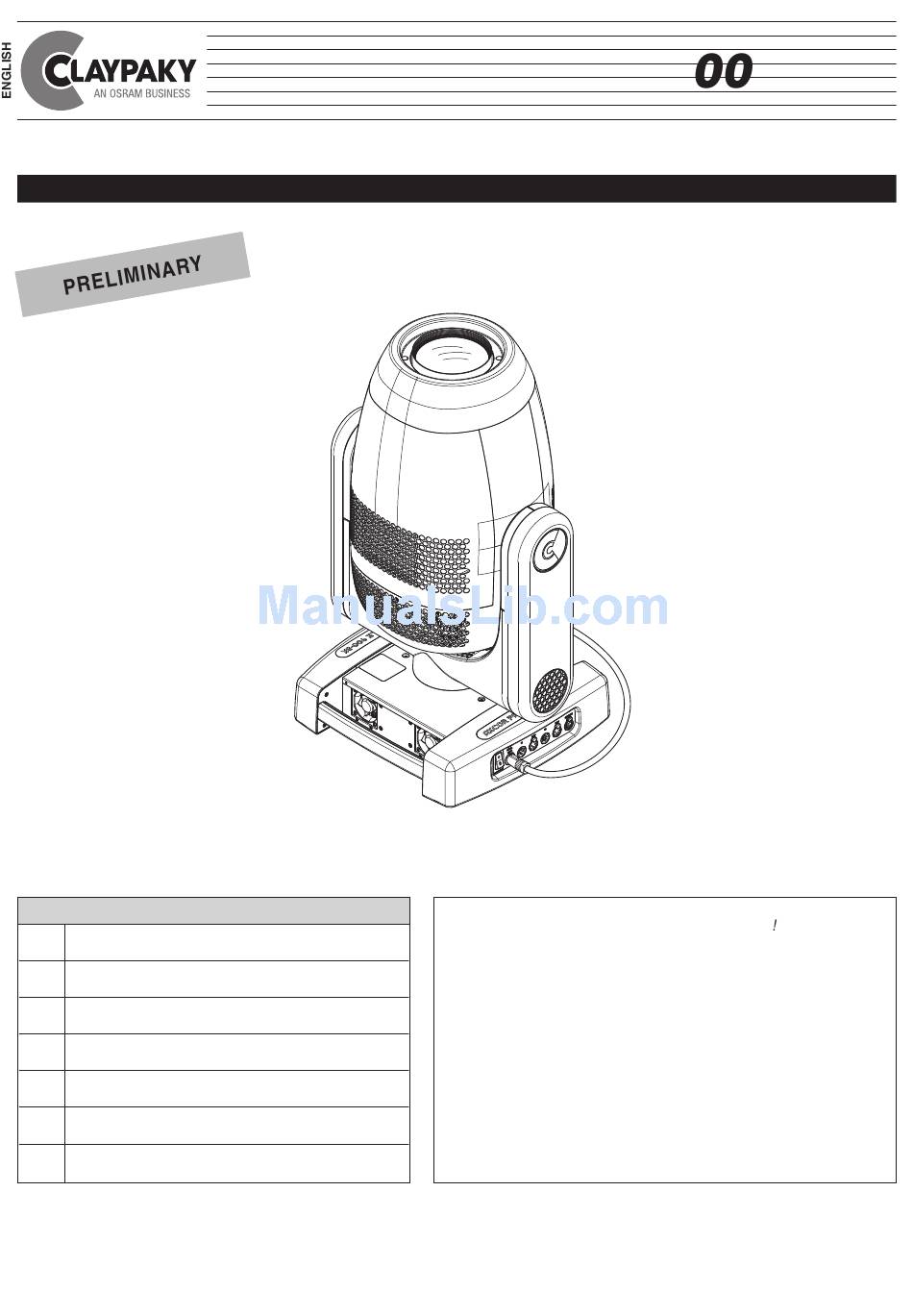

AXCOR PROFILE 9
INSTRUCTION MANUAL
Congratulations on choosing a Claypaky product
We thank you for your custom.
Please note that this product, as all the others in the rich
Claypaky range, has been designed and made with total quality
to ensure excellent performance and best meet your expectations
and requirements.
1
C61700
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Claypaky AXCOR PROFILE 900
Summary of Contents for Claypaky AXCOR PROFILE 900
- Page 1 We thank you for your custom. Please note that this product, as all the others in the rich Safety information Claypaky range, has been designed and made with total quality Unpacking and preparation to ensure excellent performance and best meet your expectations and requirements.
-
Page 2: Safety Information
SAFETY INFORMATION SAFETY INSTRUCTIONS IMPORTANT: Claypaky recommends you carefully read and keep the safety information on this product, also available in digital format at the following link: http://www.claypaky.it/en Ref: FIS017 - Safety Information Axcor series INFORMAZIONI DI SICUREZZA IMPORTANTE: Claypaky raccomanda di leggere accuratamente e conservare le informazioni di sicurezza relative a questo prodotto, sempre reperibili in versione digitale al seguente link: http://www.claypaky.it/en/download... - Page 3 UNPACKING AND PREPARATION 2 x 183102/805 Packing contents - Fig. 1 LOCKED UNLOCKED PAN Mechanism Lock and Release every 90°) - Fig. 2 TILT Mechanism Lock and Release every 45°) - Fig. 3 AXCOR PROFILE 9...
-
Page 4: Warning: With The Exception Of When The Projector Is Positioned On The Floor, The Safety Cable Must Be Fitted. (Cod. 105041/003 Available On Request). The Projector Can Be Installed On The Floor Resting On Special Rubber Feet, On A Truss Or On The Ceiling
INSTALLATION AND START-UP Installing the projector - Fig. 4 WARNING: with the exception of when the projector is positioned on the floor, the safety cable must be fitted. (Cod. 105041/003 available on request). The projector can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall. This must be securely fixed to the support structure of the projector and then connected to the fixing point at the centre of the base. -
Page 5: Control Panel
CONTROL PANEL Mains Connecting to the mains supply - Fig. 6 DMX 512 5 PIN SCREEN SIGNAL SIGNAL Connecting to the control signal line DMX) - Fig. 7 Use a cable conforming to specifications EIA RS-485: 2-pole twisted, shielded, 120Ohm characteristic impedance, 22-24 AWG, low capacity. Do not use microphone cable or other cable with characteristics differing from those specified. - Page 6 Reversal of the display - Fig. 9 To activate this function, press UP and DOWN keys simultaneously while the display is in the rest mode. This status will be memorised and maintained even for the next time it will be switched on. To return to the initial state, repeat the operation all over again. Setting the projector starting address On each projector, the starting address must be set for the control signal (addresses from 1 to 512).
-
Page 7: Maintenance
MAINTENANCE 1/4 Turn 1/4 Turn 1/4 Turn CLICK!! Locking and releasing Pan and Tilt movements - Refer to the instructions in the UNPACKING AND PREPARATION section. Opening the head covers - Fig. 10. Closing the head covers - Fig. 11. Continue AXCOR PROFILE 9... -
Page 8: Axcor Profile
• General cleaning of internal parts. • Restoring lubrication of all parts subject to friction, using lubricants specifically supplied by Claypaky. • General visual check of the internal components, cabling, mechanical parts, etc. -
Page 9: Axcor Profile
Extraction of the effect modules: Preliminary operations - Fig. 13. NOTE: - Do not disconnect wiring harnesses when the fixtures is switched-on, to avoid to damage electronic boards. - Do not switch-on the fixtures with wiring harness disconnected. Continue AXCOR PROFILE 9... - Page 10 Extraction of the effect modules - Fig. 14. IMPORTANT: Grasp the modules using the support structure and not the details which could get damaged. Insertion of the effect modules: Repeat the operations indicated in Fig. 13, 14 and 15 in reverse order. AXCOR PROFILE 9...
- Page 11 Extraction of the effect modules - Fig. 15. IMPORTANT: Grasp the modules using the support structure and not the details which could get damaged. Insertion of the effect modules: Repeat the operations indicated in Fig. 13, 14 and 15 in reverse order. Continue AXCOR PROFILE 9...
- Page 12 Replacing rotating gobos ø 32.8 mm - max 23 mm image – thickness 1.1 mm) - Fig. 17 - Before use custom gobos contact Claypaky; - The original gobos have a special coating designed specifically to resist to the high temperatures;...
- Page 13 Battery removal - Fig. 18 This product contains a rechargeable lithium iron tetraphosphate battery. To preserve the environment, please dispose the battery at the end of its life according to the regulation in force. LiFePO4 AXCOR PROFILE 9...
-
Page 14: Minimum Distance From Flammable Materials: 0.2 Meters (8
(19.72") (34.41") (26.53") (17.40") (16.69") AXCOR PROFILE 900 THERMAL SPECIFICATIONS • Category: High wattage moving head LED spotlight • Minimum distance of illuminated objects: 3 meters (9’ 10”) • Total lumen output: 24,000 lumen • Minimum distance from flammable materials: 0.2 meters (8”) LIGHT SOURCE •... - Page 15 CLAYPAKY - Via Pastrengo, 3/b - 24068 Seriate (BG) Italy - Tel. +39-035-654311 - Fax +39-035-301876 - www.claypaky.it S.p.A.
