BLOTZ B28-WW2-300 Instructions

28mm submarine: main deck

28mm Submarine: Main Deck

B28-WW2-300

Please read these instructions fully before starting construction.

PVA or equivalent glue will be required to stick sections together.

Sand paper can be used to gently clean any joints.

A sharp modelling knife will be required to remove sections from the sprue. Please use knives with due care and remember

to cut away from yourself at all times.

During the construction of this model, you may find it convenient to use pegs / elastic bands to hold pieces in place while

you allow glue to dry.

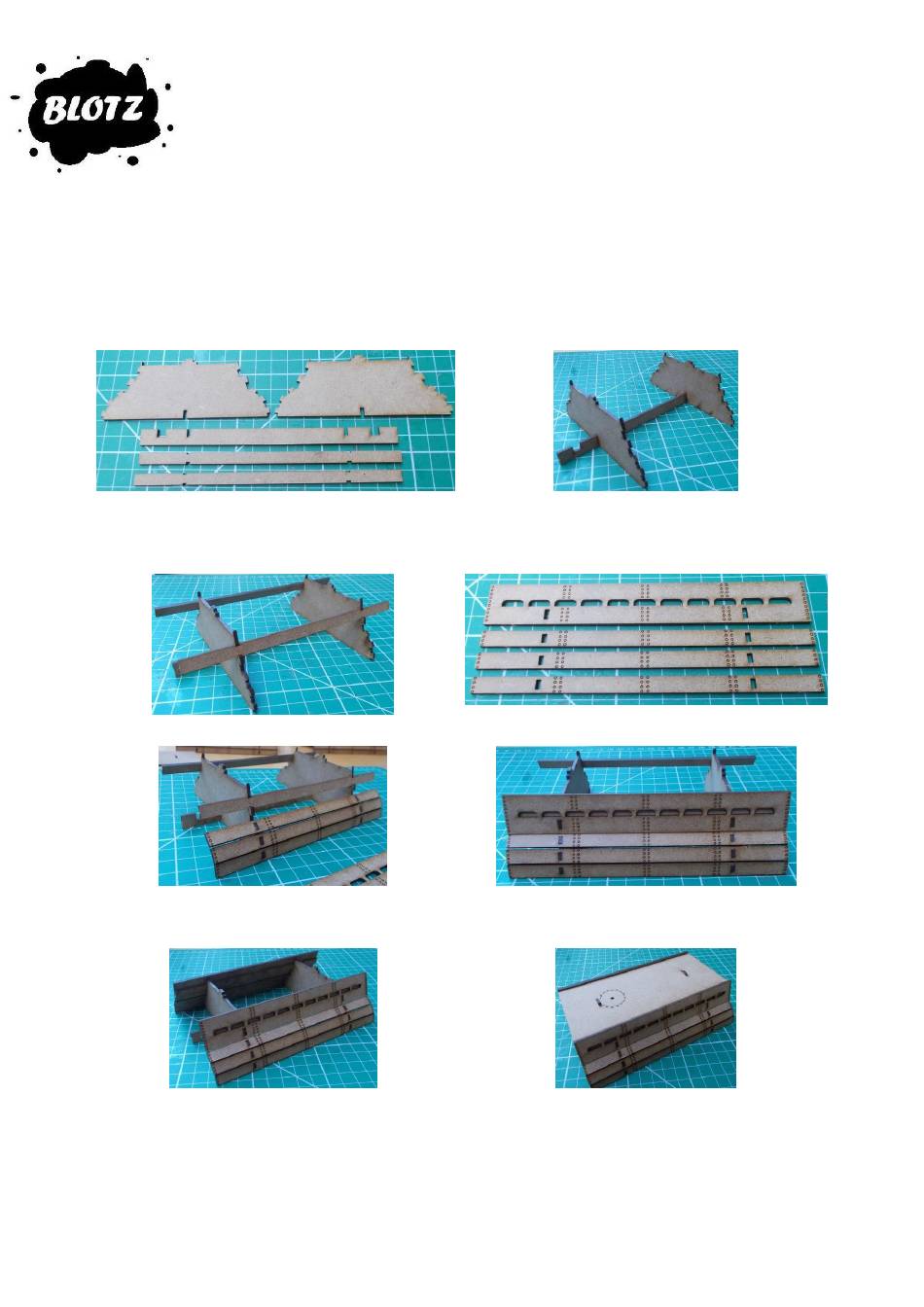

Remove the front and rear main supports plus the

central cross beam and two side supports from

the sprue as shown above.

Attach the side supports into the gaps provided.

Starting from the bottom, glue each strip into

Repeat this on the other side of the model.

place.

Glue the cross beam to the front and rear supports.

Take the side pieces shown above from the sprue.

Then attach the upper strip.

Glue the top plate into position.

Table of Contents

Need help?

Do you have a question about the B28-WW2-300 and is the answer not in the manual?

Page 1 28mm Submarine: Main Deck B28-WW2-300 Please read these instructions fully before starting construction. PVA or equivalent glue will be required to stick sections together. Sand paper can be used to gently clean any joints. A sharp modelling knife will be required to remove sections from the sprue. Please use knives with due care and remember to cut away from yourself at all times.

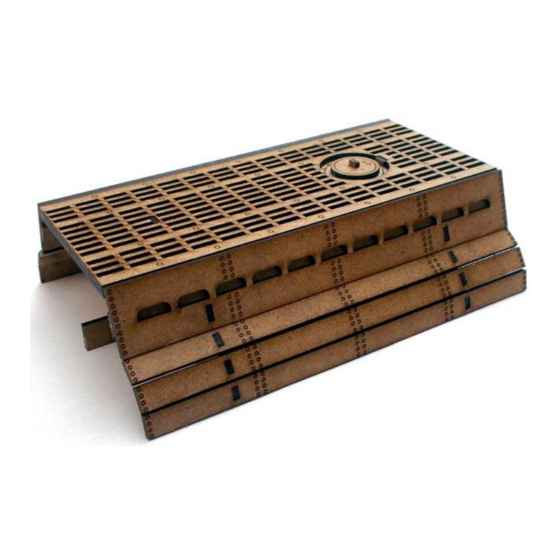

Page 2 The hatch is made from the two pieces shown Glue these to the top plate. above. Finally attach the deck plate. The finished model. Linking the Components The individual components can be attached together using the supplied rectangular link pieces. Hold the components upside down and slide the link over the lugs on the cross beam of each section.
