28mm Submarine: Conning Tower

B28-WW2-303

Please read these instructions fully before starting construction.

PVA or equivalent glue will be required to stick sections together.

Sand paper can be used to gently clean any joints.

A sharp modelling knife will be required to remove sections from the sprue. Please use knives with due care and remember

to cut away from yourself at all times.

During the construction of this model, you may find it convenient to use pegs / elastic bands to hold pieces in place while

you allow glue to dry.

Remove the front and rear main supports plus the

central cross beam and two side supports from

the sprue as shown above.

Starting from the bottom, glue each strip into

place.

Glue the cross beam to the front and rear supports.

Then attach the upper strip.

Table of Contents

Do you have a question about the B28-WW2-303 and is the answer not in the manual?

Page 1 28mm Submarine: Conning Tower B28-WW2-303 Please read these instructions fully before starting construction. PVA or equivalent glue will be required to stick sections together. Sand paper can be used to gently clean any joints. A sharp modelling knife will be required to remove sections from the sprue. Please use knives with due care and remember to cut away from yourself at all times.
Page 2 Attach the deck plate. Take the seven pieces shown above. Attach them to the deck as shown above. The two inner plates… ..should be inserted inside the tower (see pic) Add the deck section. Poke your finger / a pencil / etc through the hole in the main deck to help align the lugs.

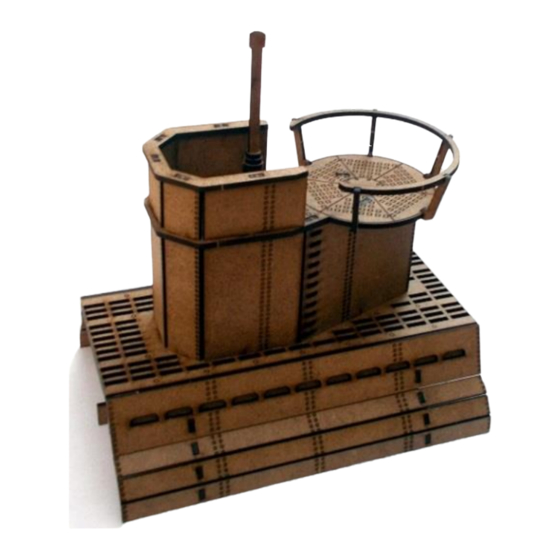

Page 3 Glue them together as shown, leaving a gap at the base so it can be slotted into the hole in the tower Place (do not glue) the snorkel into position. This deck (see next pic) can be removed to aid storage. The finished model.
