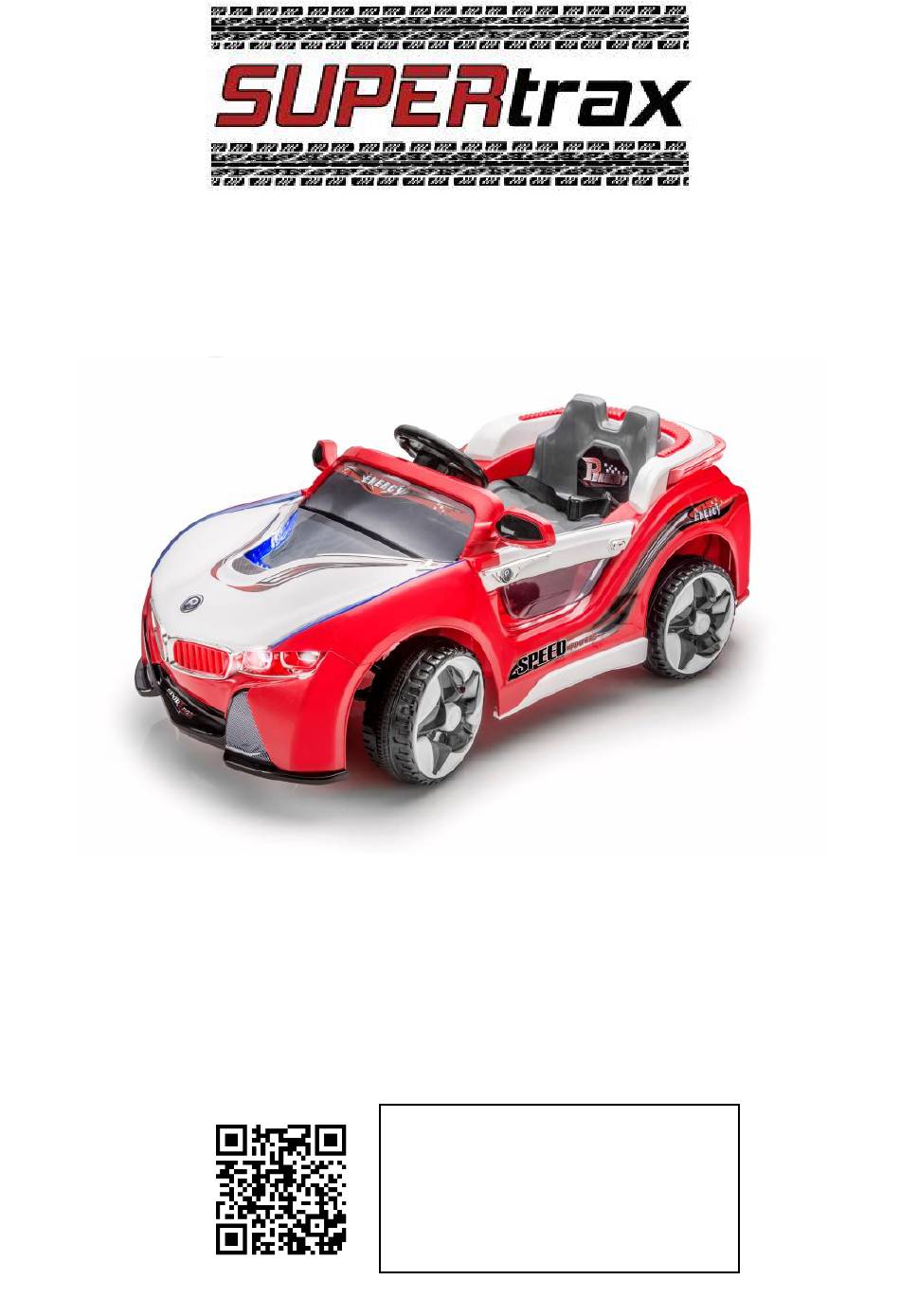

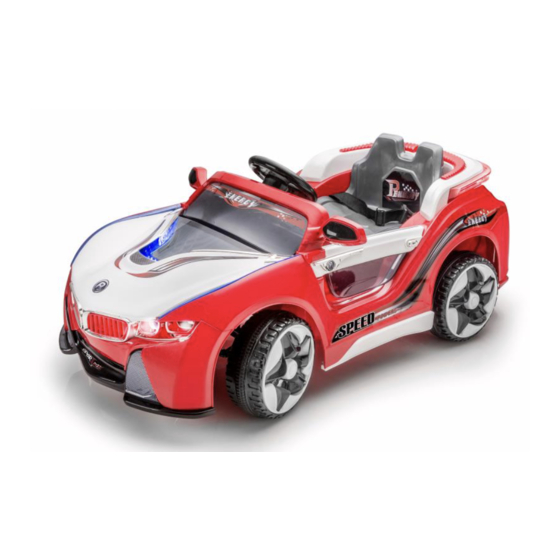

SuperCar Kids Ride on Car
Installation and Operation Instructions
Please read this instruction manual carefully. It is important to read and
follow all the steps during assembly to ensure proper operation and safety of
the child. Please keep this manual for future reference.
Scan this QR Code
to view the
Assembly Video
Advertisement
Table of Contents
Related Manuals for Supertrax BMW i8 Style
Summary of Contents for Supertrax BMW i8 Style
- Page 1 SuperCar Kids Ride on Car Installation and Operation Instructions Please read this instruction manual carefully. It is important to read and follow all the steps during assembly to ensure proper operation and safety of the child. Please keep this manual for future reference. Scan this QR Code to view the Assembly Video...
-
Page 2: Specifications
SPECIFICATIONS: Car Type: BMW i8 Style Battery Type: 2 x 6V7AH Electric Motor: 12V35W(Drive) 12V35W(Steering) Age Range: 2 – 6 Years Max. Weight: 65 lbs Product Size: 42”L x 26”W x 24”H Avg. Speed: 2 – 4 MPH Charging time: 8-12 hrs Avg. -
Page 3: Parts List
PARTS LIST: Name of Part Name of Part Nam of Part Car Body L - Gearbox Rear Bumper Rear Axle R - Gearbox Battery Bracket Front Wheel R - Mirror Battery Wheel Cover L – Mirror Remote Control Washer Grill Cotter Pin Decal Seat... -
Page 4: Installing The Windshield
All assembly videos can be found on YouTube under SPORTrax ASSEMBLY INSTRUCTIONS: Installing Rear Wheels & Gearboxes Remove car from box and plastic. Prop rear of car up so rear axle is off the ground. Locate the Motors/Gearboxes in the area where the batteries are located. -
Page 5: Installing The Steering Wheel
Installing the Trunk Lid Install the trunk lid as shown in the picture. Tabs on each side of the trunk lid need to be placed in the corresponding slots in the body of the car in the trunk location. Installing the Steering Wheel Plug the electrical connector on the steering wheel to the connector located near the steering rod close to... -
Page 6: Charging Port
Charging Port: The charging port is located on dashboard of car. Once charger is connected to the car, plug into wall outlet. BATTERY MUST BE CHARGED FOR A MINIMUM OF 12 HOURS BEFORE INITIAL USE TO AVOID DAMAGE TO THE BATTERY. If the charger is plugged into the charging port, the car will not power up regardless if the charger is plugged into the wall outlet or not. -
Page 7: Operating The Remote Control
Operating the remote control 1. Install batteries. 2. Remote lights will flash briefly and then go out. 2. With the lights on the remote off and the car “OFF” press and hold the car select button. (The lights on the remote will come on.) While holding the “car select” button, turn on the car. Continue holding the “car select”... -
Page 8: Troubleshooting Guide
• Park the vehicle indoors or cover it with a tarp to protect it from wet weather. • Keep the vehicle away from sources of heat, such as stoves and heaters. Plastic parts may melt. • Recharge the battery after each use. Only an adult should handle the battery. Recharge the battery at least once a month when not being used. - Page 9 Car needs a push to go Poor contact of wires and/or Check that the battery forward connectors connectors are firmly plugged into each other. If wires are loose around the motor, contact the distributor’s service department “Dead Spot” on motor A dead spot means the electric power is not being delivered to the terminal...
