TV Mode Support [Disable]
The options are: Disable, NTSC-M, NTSC-J, PAL-M, PAL-BDGHI, PAL-N,
PAL-NC.
K7NCTS Card Support [TV]
The options are: TV, CRTB.
USB2.0 Turning [Disable]
The options are: Enable and Disable.

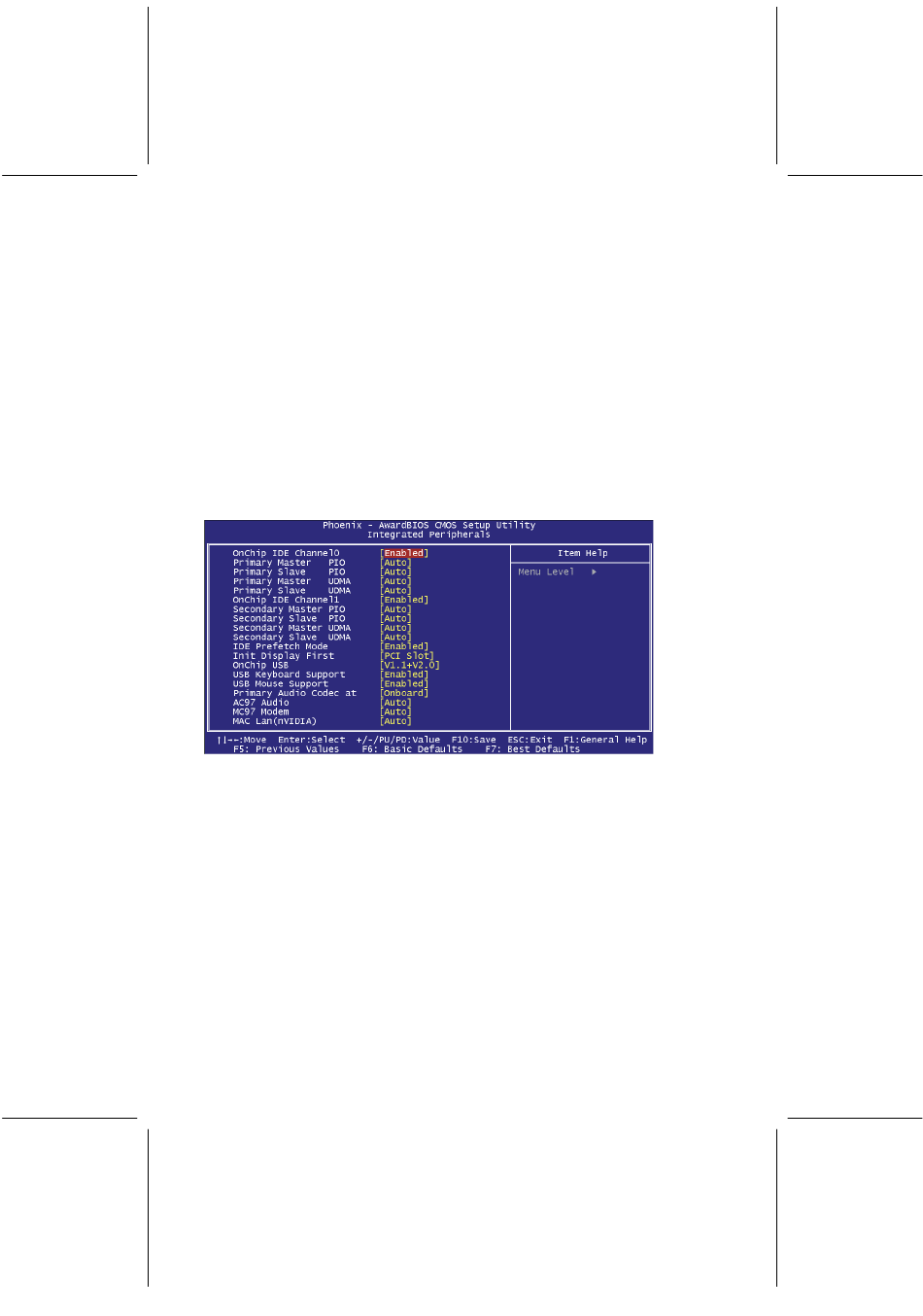

4.5. Integrated Peripherals

This Menu Setup allows you to configure your IDE, USB keyboard, Floppy Drive,
Parallel Port, Serial Port, and IR function.
* The Item Help column contains the description of selected item.
On-Chip IDE Channel0 [Enabled]
Selecting Enabled allows you to adjust the functions of Primary PIO and UDMA.
On-Chip IDE Channel1 [Enabled]
Selecting Enabled allows you to adjust the functions of Secondary PIO and UDMA.
Primary Master/Slave PIO, Secondary Master/Slave PIO [Auto]
The four IDE PIO (Programmed Input/Output) fields let you set a PIO mode (0-4)
for each of the four IDE devices that the onboard IDE interface supports. Modes 0
through 4 provide successively increased performance. In Auto mode, the system
automatically determines the best mode for each device. The options are: Auto,
Mode 0, Mode 1, Mode 2, Mode 3, and Mode 4.
Primary Master/Slave UDMA, Secondary Master/Slave UDMA [Auto]
Ultra ATA 66/100 implementation is possible only if your IDE hard drive supports it
and the operating environment includes a DMA driver (Windows 95 OSR2 or a
23
