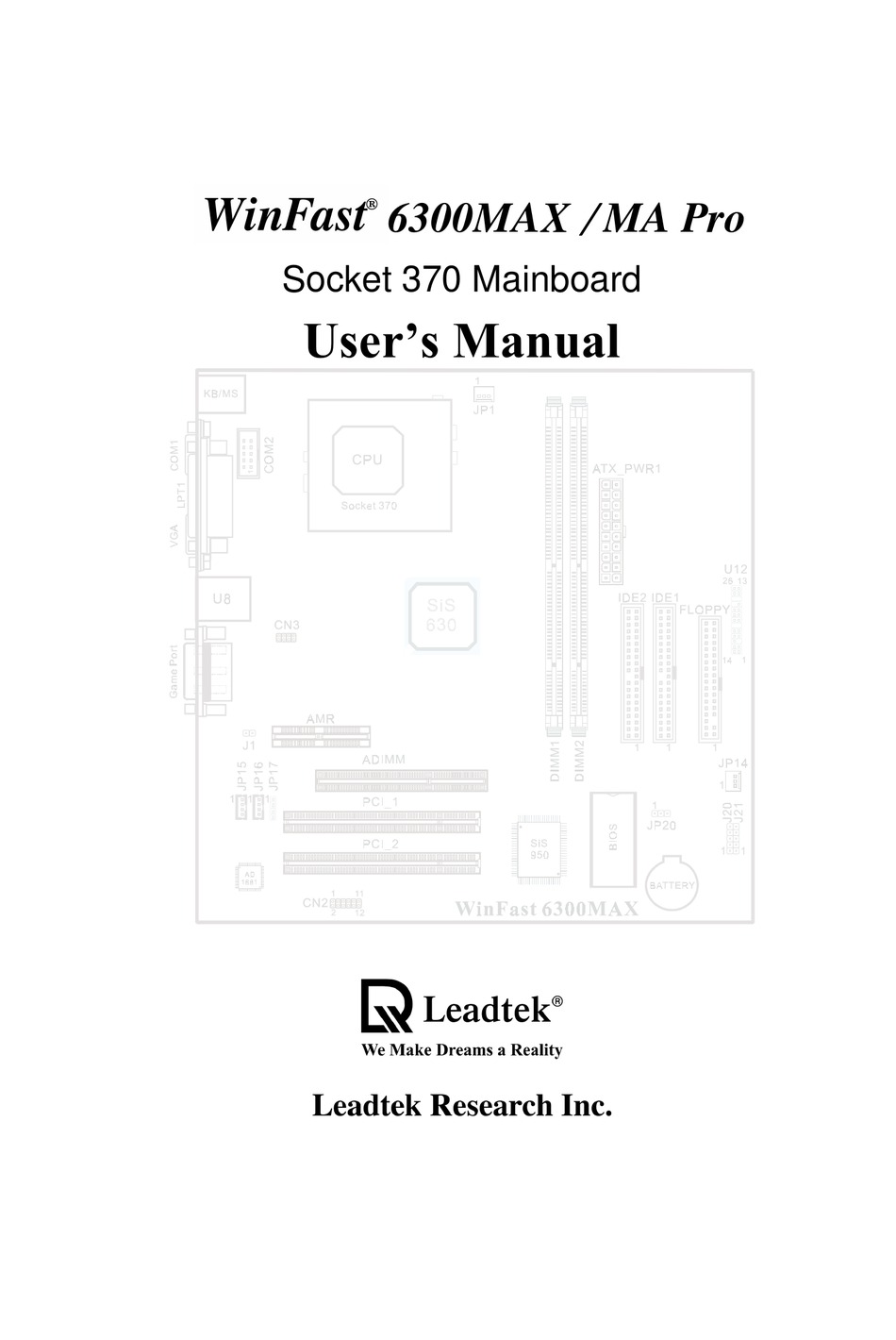

- Page 1 6300MAX MA Pro Socket 370 Mainboard ...
- Page 2 The information in this document is subject to change without notice. Leadtek reserves the right to make revisions to this publication without obligation to notify any person or entity of any such changes.
-
Page 3: Table Of Contents
Table of Contents Quick Setting..............1 WinFast 6300MAX/MA Pro Mainboard Layout......1 Jumper/Connector Listing............1 CPU and SDRAM Clock Frequency Selection ......2 Introduction................ 3 Overview ................3 Specifications.................4 Package Content ..............4 Hardware Setup ..............5 CPU Installation ..............5 Memory Installation (DIMM1, DIMM2)........5 ADIMM Installation (ADIMM) ..........6 Case Signal Connector (U12) ..........6... - Page 4 Integrated Peripherals............15 Power Management Setup ..........17 PnP/PCI Configurations ............19 PC Health Status ..............19 X-BIOS.................20 4.10 Load Basic Defaults .............20 4.11 Load Best Defaults...............20 4.12 Set Supervisor/User Password..........20 4.13 Save & Exit Setup ..............21 4.14 Exit Without Saving..............21 Software Setup ..............22 Windows 95/98 ..............22 5.1.1 Gamma Correction ............23 5.1.2 Video Setting .............23...
-
Page 5: Quick Setting
WinFast 6300MAX Mainboard Layout Jumper/Connector Listing Jumper/Connector Description For VGA shared memory card (WinFast ADIMM-128) or TV, VGA and DVI card (WinFast ADIMM-DCT) ADIMM Note: WinFast 6300MA Pro does not support this connector. Audio Modem Riser WinFast 6300MAX/MA Pro User’s Manual... -
Page 6: Cpu And Sdram Clock Frequency Selection
Press and hold the <INS> key until the monitor displays. This action will make the system set up to its default (66/100) automatically. NOTE: If you shut down your engine very quickly after booting, say “within 3~4 seconds” after turning on the engine, the BIOS may misjudge and resulting circumstances like the above. Leadtek Research Inc. -
Page 7: Introduction
Introduction Overview The WinFast 6300MAX/MA Pro - a Socket 370 Processor based Micro ATX Mainboard, integrating with onboard AC’97 Audio and Super AGP VGA for Hardware 2D/3D Video/Graphics Accelerators, is a high performance/cost index Desktop solution for Intel Socket 370 Celeron, CuMine Series and other compatible CPUs. -
Page 8: Specifications
! Onboard audio driver ! Onboard LAN driver Optional Accessories: ! 3D glasses connector, COM2 ! AWARD flash utility ! 3D glasses x 1 ! User’s manual ! USB module x 1 ! WinFast ADIMM-DCT ! WinFast ADIMM-128 Leadtek Research Inc. -
Page 9: Hardware Setup
The mainboard provides two 168-pin DIMM (Double In-Line Memory Module) slots, DIMM1 and DIMM2. You can use SDRAM from 8, 16, 32, 64, 128, 256 to 512MB per DIMM slot, or you can use VCM from 32, 64, and 128MB. WinFast 6300MAX/MA Pro User’s Manual... -
Page 10: Adimm Installation (Adimm)
All IDE devices have jumpers, which allow the user to configure the device as either “Master” or “Slave”. A Master device is one that is ALONE on the IDE cable, whereas a Slave device is installed as a SECOND device on the same cable. Keep in mind that the Master device will Leadtek Research Inc. -
Page 11: Floppy Disk Connector (Floppy)
A 25-pin D-Sub header is provided on the back panel for a multi-mode bi-directional parallel port. One 9-pin D-Sub headers is provided on the back panel for Serial port COM1. One VGA port is also provided. WinFast 6300MAX/MA Pro User’s Manual... -
Page 12: Irda-Compliant Infrared Module Connector (J20, J21)
3D glasses connection Connected to Providing two 3D glasses COM2 on Mainboard connection socket for two COM2 persons simultaneously. Connected to on Mainboard COM2 connector only: 3.17 USB Connector (CN2) Connecting a three-USB-connector on the back panel. Leadtek Research Inc. -
Page 13: Bios Setup
F1:General Help F5:Previous Values F6:Basic Defaults F7:Best Defaults Date [mm:dd:yy] This item indicates the current date information. If you are running a Windows OS, this item is automatically updated whenever you make changes to the Windows Date. WinFast 6300MAX/MA Pro User’s Manual... - Page 14 All, But Disk/Key: Post does not stop for the keyboard/disk error, but stops for all other errors. All Errors: If the BIOS detects any non-fatal error, POST stops and prompts you to take corrective action. No Errors: Post does not stop for any error. Leadtek Research Inc.
-
Page 15: Advanced Bios Features
Cache memory is additional memory that is much faster than conventional DRAM (system memory). When the CPU requests data, the system transfers the requested data from the main DRAM into cache memory, for even faster access by the CPU. WinFast 6300MAX/MA Pro User’s Manual... - Page 16 Onboard FDC Controller field. You should select “Yes” if your operating system is Windows 95 and without a floppy disk equipped in your computer. Video BIOS Shadow [Enabled] Enabled: the contents of the video ROM is copied from ROM to RAM for faster execution. Leadtek Research Inc.
-
Page 17: Advanced Chipset Features
Strobe) to CAS (Column Address Strobe). SDRAM Background Command [Normal] When set to “Delay 1T”, background commands are issued 1 clock behind memory address (MA). When set to “Normal”, background command and MA are issued at the same time. WinFast 6300MAX/MA Pro User’s Manual... - Page 18 Enable or Disable Memory/PCI bus utilization optimized. CPU Pipeline Control [Enabled] This item is set a timing parameter for CPU access. PCI Delay Transaction [Enabled] If the chipset of your mainboard has an embedded 32-bit write buffer to support delay Leadtek Research Inc.
-
Page 19: Integrated Peripherals
The four IDE PIO (Programmed Input/Output) fields let you set a PIO mode (0-4) for each of the four IDE devices that the onboard IDE interface supports. Modes 0 through 4 provide successively increased performance. In Auto mode, the system automatically determines the best mode for each device. WinFast 6300MAX/MA Pro User’s Manual... - Page 20 Select an infrared port mode - Normal, Askir and IrDA. UR2 Duplex Mode [Half] Choose an infrared mode in full duplex or half duplex. Onboard Parallel Port [378/IRQ7] Determine the I/O address to access onboard parallel port controller. Leadtek Research Inc.
-
Page 21: Power Management Setup
PCIPME Power Up Control Disabled KB Power ON Password Enter Power Up by Alarm Enabled Month Alarm Day of Month Alarm Time (hh:mm:ss) Alarm :Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help F5:Previous Values F6:Basic Defaults F7:Best Defaults WinFast 6300MAX/MA Pro User’s Manual... - Page 22 When this item is enabled, it allows you to power up your system with the remote control. PCIPME Power Up Control [Disabled] When this item is enables, it allows you to power up your system with the remote control by using the PCI device. Leadtek Research Inc.
-
Page 23: Pnp/Pci Configurations
Auto: If your ISA card and PCI card are all PNP cards. Set this field to "Auto". The BIOS will assign the interrupt resource automatically. PC Health Status This menu shows the current temperature and voltage, and allows you to set up “CPU Warning Temperature” and “ Shutdown Temperature”. WinFast 6300MAX/MA Pro User’s Manual... -
Page 24: X-Bios
4.11 Load Best Defaults The “Load Best Defaults” function loads the system manufacture default data. This is the default setting from Leadtek. This function will be necessary when the system CMOS data is corrupted or you forget your settings. 4.12... -
Page 25: Save & Exit Setup
4.14 Exit Without Saving The “EXIT WITHOUT SAVING” option will bring you back to normal boot up procedure without saving any data into CMOS RAM, and will not destroy all the old data in CMOS WinFast 6300MAX/MA Pro User’s Manual... -
Page 26: Software Setup
“Display Modes” window. Click “Advanced...” tab to pop up the “Advanced Setting” window: Select “Multimonitor” in the “Driver mode” tab. The “Secondary display device” will then be available to choose among Auto, VGA, TV, and LCD devices. Leadtek Research Inc. -
Page 27: Gamma Correction
Reset: Clicking on the “Reset” button will resume performance to medium. Default: Clicking on the “Default” button will resume performance to medium. Full Screen: Clicking on the “Full Screen” button will WinFast 6300MAX/MA Pro User’s Manual... -
Page 28: Information
The product information of 6300MAX is recorded in this tab. You can identify the product name, chip type, software version, DRAM size, file version…etc directly and easily. It also helps Leadtek’s customer service team to identify your configuration in order to provide prompt and effective technical support. -
Page 29: Windows Nt 4.0
Step 3: Select and click “Install LAN Driver”. You will see a popup menu showing “For Windows 95/98” and “For Windows NT 4.0”. Select the desired operating system and click. WinFast 6300MAX/MA Pro User’s Manual... -
Page 30: Appendix A. Bios Flash Utility
If you get a new floppy disk or CD_ROM from your local dealer which contains a new version of the BIOS binary file, or you obtain the new BIOS binary file directly from our Web Site (www.leadtek.com.tw), please follow the steps below to update the BIOS. NOTE: Please contact your dealer first to see if you need to update your BIOS. -
Page 31: Appendix C. Troubleshooting Flowchart
1long 3 short beeps Number of Remove Memory Beeps Video Card 1long beep intervals Problem Speaker Memory Problem Beeps Check Memory Check CPU & BIOS Correct Setting & Reboot OK Speaker Beeps Mainboard Good Replace Mainboard WinFast 6300MAX/MA Pro User’s Manual... -
Page 32: Appendix D. Fcc Statement
Appendix E. Limited Warranty Leadtek warrants to the original purchaser of this product that it shall be free of defects resulting from workmanship or components for a period of one (1) year from the date of sale. Defects covered by this Limited Warranty shall be corrected either by repair or, at Leadtek’s discretion by replacement.
