2. Quick Setting

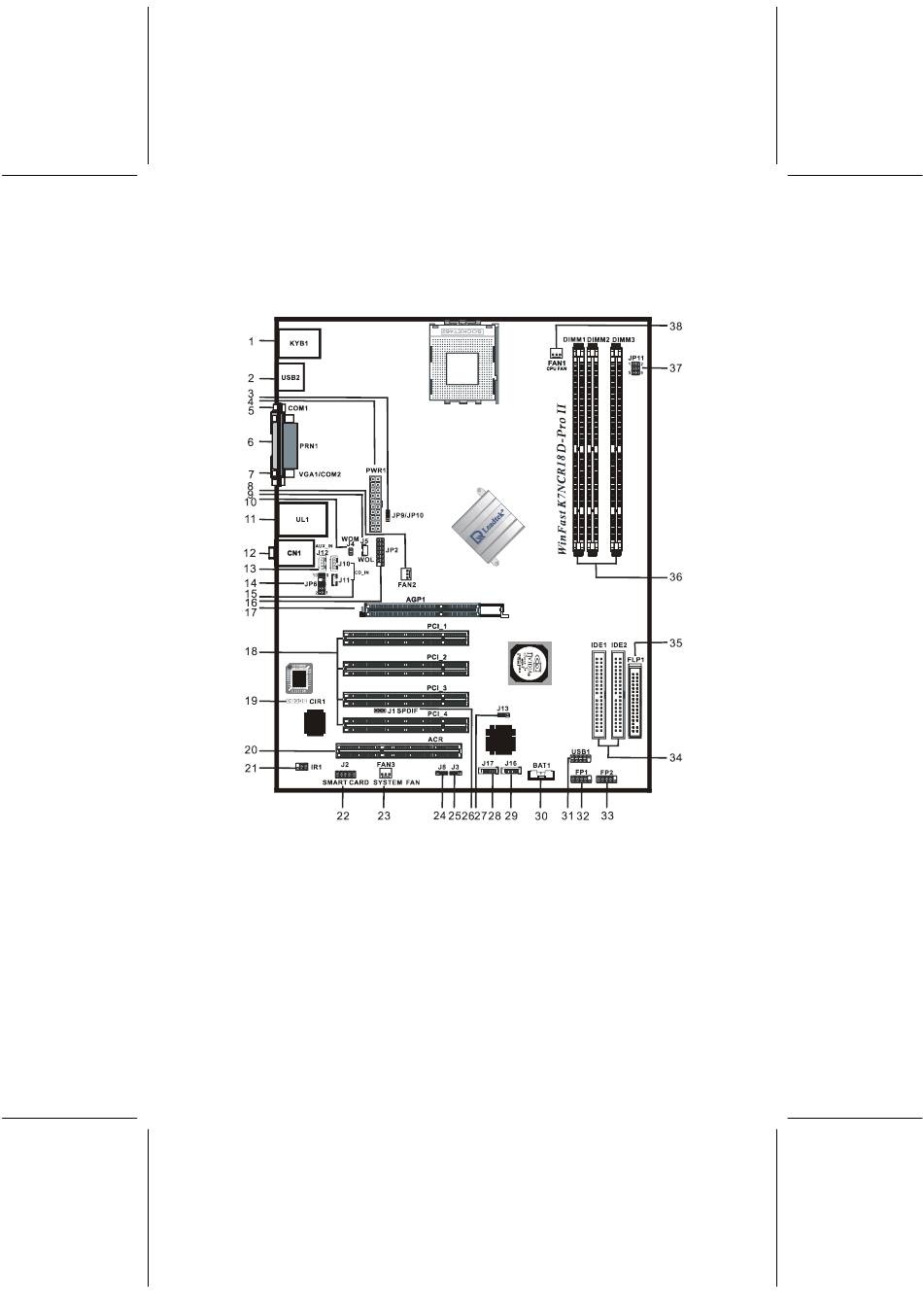

2.1. Jumper Position

1. KYB1 10. J4
2. USB1 11. UL1
3. JP9 (Version A)/ 12. CN1
JP10 (Version D)
4. PWR1 13. J12
5. COM1 14. JP6
6. PRN1 15. J10, J11
7. VGA1(18G series) 16. JP2 (18G series)
COM2 (18D series) 17. AGP1
8. FAN2 18. PCI1-4
9. J5 19. CIR1
20. ACR 30. BAT1
21. IR1 31. USB2
22. J2 32. FP1
23. FAN3 33. FP2
24. J8 34. IDE1,IDE2
25. J3 35. FLP1
26. J1 36. DIMM1-3
27. J13 37. JP11
28. J17 38. FAN1
29. J16
3
