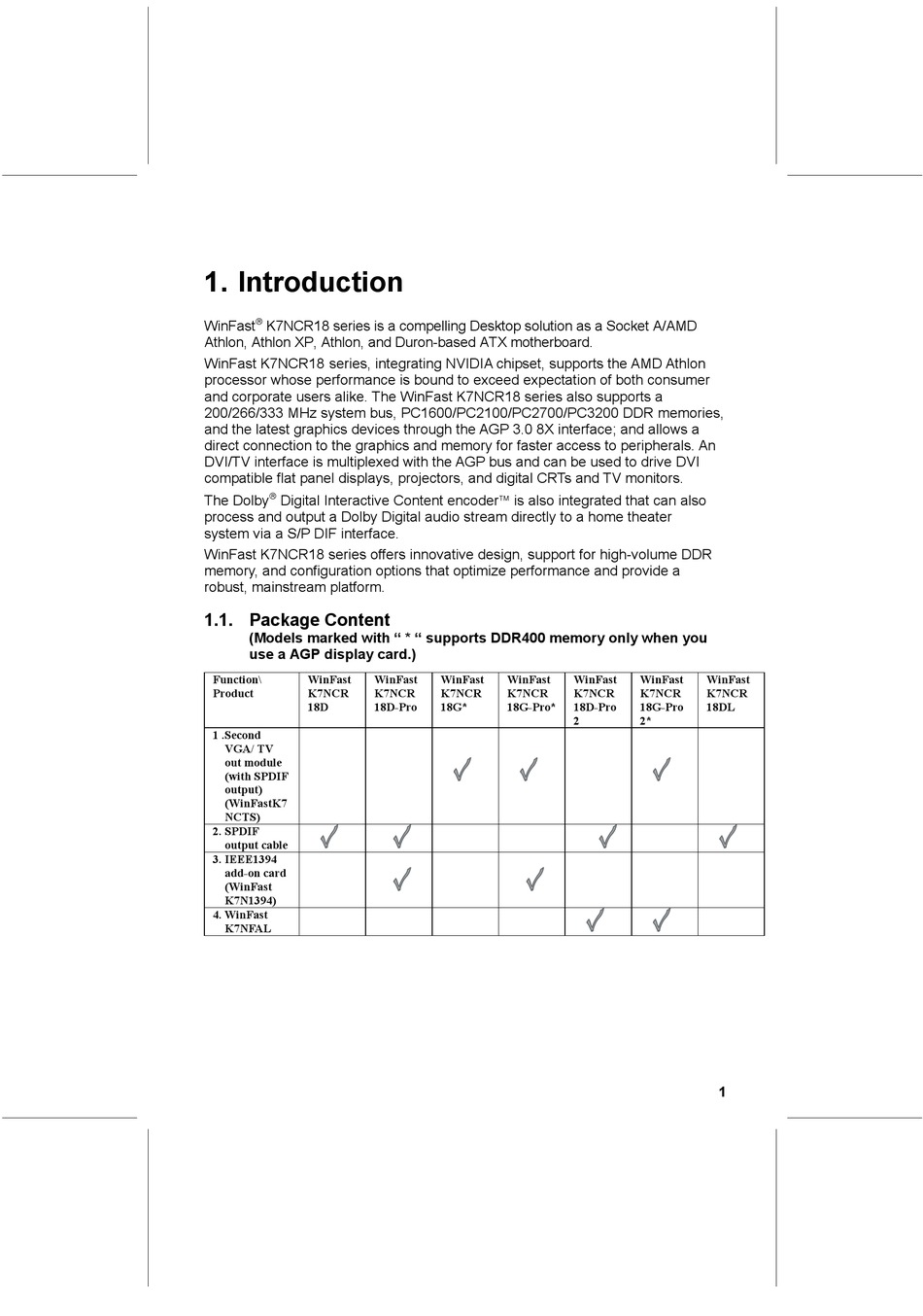

1. Introduction


WinFast K7NCR18 series is a compelling Desktop solution as a Socket A/AMD
Athlon, Athlon XP, Athlon, and Duron-based ATX motherboard.
WinFast K7NCR18 series, integrating NVIDIA chipset, supports the AMD Athlon
processor whose performance is bound to exceed expectation of both consumer
and corporate users alike. The WinFast K7NCR18 series also supports a
200/266/333 MHz system bus, PC1600/PC2100/PC2700/PC3200 DDR memories,
and the latest graphics devices through the AGP 3.0 8X interface; and allows a
direct connection to the graphics and memory for faster access to peripherals. An
DVI/TV interface is multiplexed with the AGP bus and can be used to drive DVI
compatible flat panel displays, projectors, and digital CRTs and TV monitors.

The Dolby Digital Interactive Content encoder is also integrated that can also
process and output a Dolby Digital audio stream directly to a home theater
system via a S/P DIF interface.
WinFast K7NCR18 series offers innovative design, support for high-volume DDR
memory, and configuration options that optimize performance and provide a
robust, mainstream platform.

1.1. Package Content

(Models marked with " * " supports DDR400 memory only when you
use a AGP display card.)
Function\ WinFast WinFast
Product K7NCR K7NCR
18D 18D-Pro
1 .Second
VGA/ TV
out module
(with SPDIF
output)
(WinFastK7
NCTS)
2. SPDIF
output cable
3. IEEE1394
add-on card
(WinFast
K7N1394)
4. WinFast
K7NFAL
WinFast WinFast WinFast
K7NCR K7NCR K7NCR
18G* 18G-Pro* 18D-Pro
2
WinFast WinFast
K7NCR K7NCR
18G-Pro 18DL
2*
1
