LOAD FIRMWARE
Firmware update of the controller is only necessary if
updated features are desired or to address specific issues
with earlier revisions of the firmware.
View Version
>Load Firmware
No Package Present
Incompatible Flash Drive Or Firmware

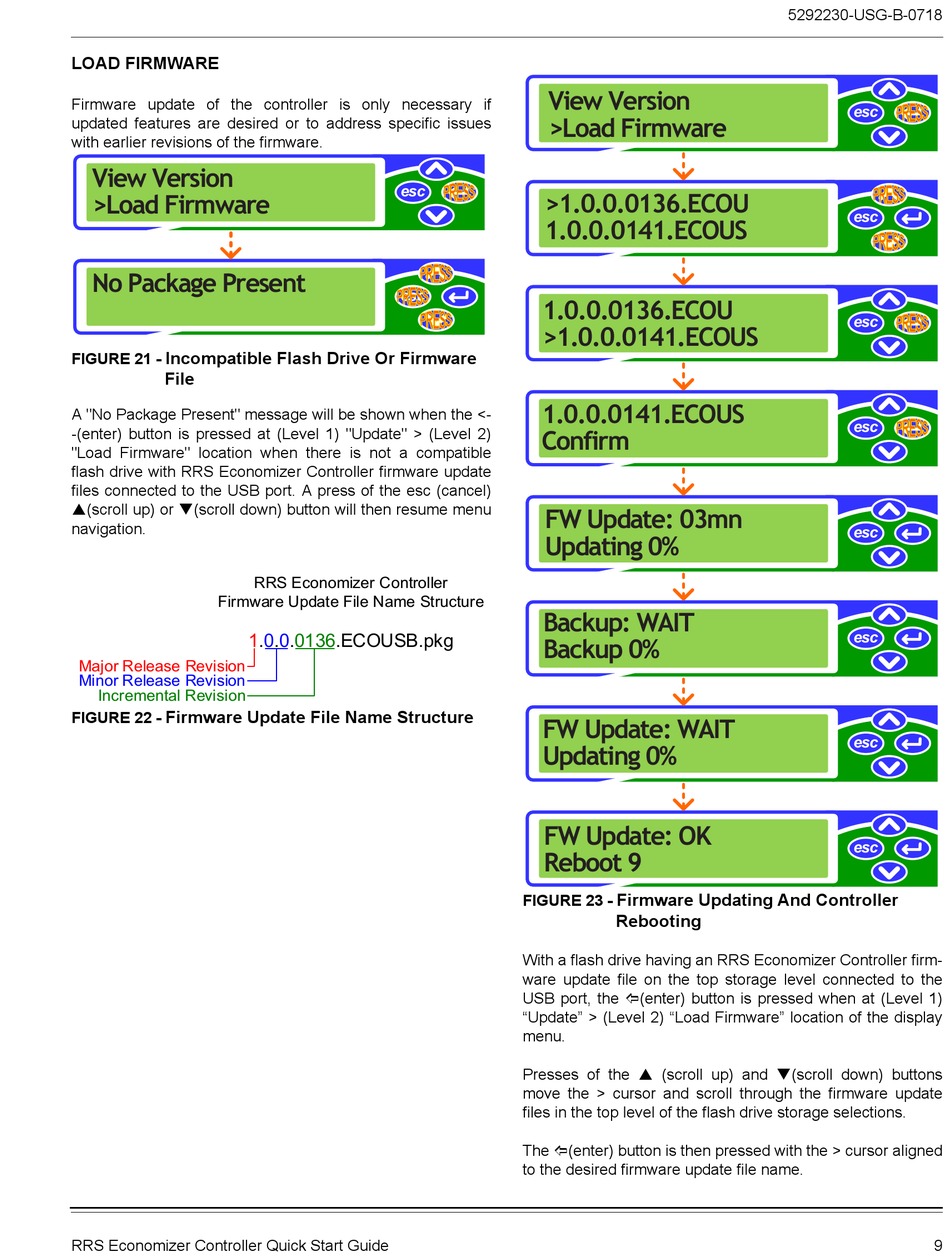

FIGURE 21 -
File
A "No Package Present" message will be shown when the <-
-(enter) button is pressed at (Level 1) "Update" > (Level 2)
"Load Firmware" location when there is not a compatible
flash drive with RRS Economizer Controller firmware update
files connected to the USB port. A press of the esc (cancel)
(scroll up) or (scroll down) button will then resume menu
navigation.
Firmware Update File Name Structure
1.0.0.0136.ECOUSB.pkg
Major Release Revision
Minor Release Revision
Incremental Revision
Firmware Update File Name Structure
FIGURE 22 -
RRS Economizer Controller Quick Start Guide
esc
esc
RRS Economizer Controller
View Version
>Load Firmware
>1.0.0.0136.ECOU
1.0.0.0141.ECOUS
1.0.0.0136.ECOU
>1.0.0.0141.ECOUS
1.0.0.0141.ECOUS
Confirm
FW Update: 03mn
Updating 0%
Backup: WAIT
Backup 0%
FW Update: WAIT
Updating 0%
FW Update: OK
Reboot 9
Firmware Updating And Controller
FIGURE 23 -
Rebooting
With a flash drive having an RRS Economizer Controller firm-
ware update file on the top storage level connected to the
USB port, the (enter) button is pressed when at (Level 1)
"Update" > (Level 2) "Load Firmware" location of the display
menu.
Presses of the  (scroll up) and (scroll down) buttons
move the > cursor and scroll through the firmware update
files in the top level of the flash drive storage selections.
The (enter) button is then pressed with the > cursor aligned
to the desired firmware update file name.
