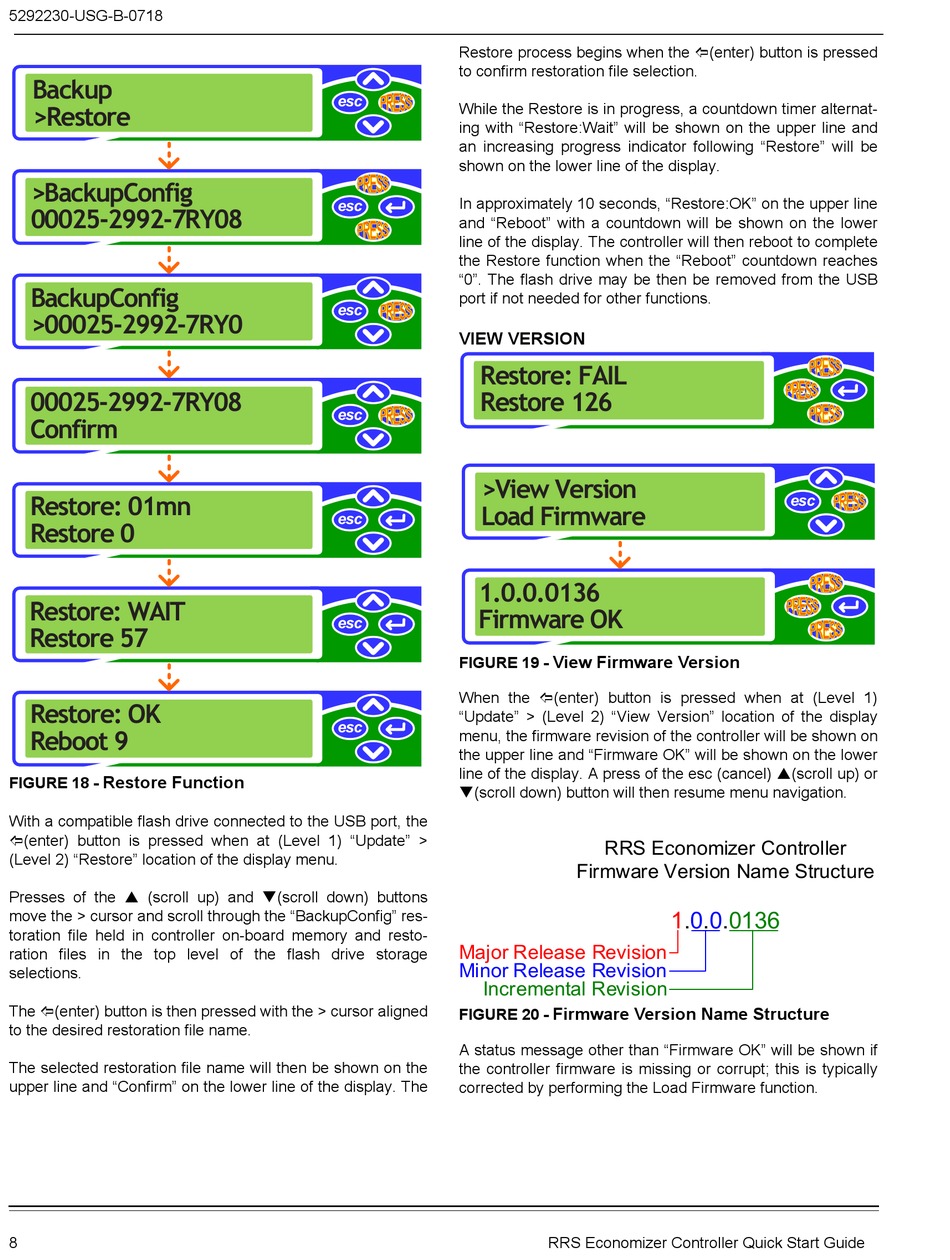

Restore Function
FIGURE 18 -
With a compatible flash drive connected to the USB port, the
(enter) button is pressed when at (Level 1) "Update" >
(Level 2) "Restore" location of the display menu.
Presses of the  (scroll up) and (scroll down) buttons
move the > cursor and scroll through the "BackupConfig" res-
toration file held in controller on-board memory and resto-
ration files in the top level of the flash drive storage
selections.
The (enter) button is then pressed with the > cursor aligned
to the desired restoration file name.
The selected restoration file name will then be shown on the
upper line and "Confirm" on the lower line of the display. The
8
Restore process begins when the (enter) button is pressed
to confirm restoration file selection.
esc
While the Restore is in progress, a countdown timer alternat-
ing with "Restore:Wait" will be shown on the upper line and
an increasing progress indicator following "Restore" will be
shown on the lower line of the display.
In approximately 10 seconds, "Restore:OK" on the upper line
esc
and "Reboot" with a countdown will be shown on the lower
line of the display. The controller will then reboot to complete
the Restore function when the "Reboot" countdown reaches
"0". The flash drive may be then be removed from the USB
port if not needed for other functions.
esc
VIEW VERSION
Restore: FAIL
Restore 126
esc
>View Version
Load Firmware
esc
1.0.0.0136
Firmware OK
esc
FIGURE 19 -
When the (enter) button is pressed when at (Level 1)
"Update" > (Level 2) "View Version" location of the display
esc
menu, the firmware revision of the controller will be shown on
the upper line and "Firmware OK" will be shown on the lower
line of the display. A press of the esc (cancel) (scroll up) or
(scroll down) button will then resume menu navigation.
Major Release Revision
Minor Release Revision
Incremental Revision
FIGURE 20 -
A status message other than "Firmware OK" will be shown if
the controller firmware is missing or corrupt; this is typically
corrected by performing the Load Firmware function.
View Firmware Version
RRS Economizer Controller
Firmware Version Name Structure
1.0.0.0136
Firmware Version Name Structure
