Metasys Ventilation Controller Application

Metasys Ventilation Controller Application for the DX-9100 .............3

Introduction........................................................................................................*3

Key Concepts...................................................................................................... 5

Johnson Controls CO 2 Concentration Samplers............................................................ *5

MVC-2000-1 Package ................................................................................................... *5

Universal Packaging Module (UPM) ............................................................................... 6

DX-9100 ........................................................................................................................ *7

CO 2 Sensor................................................................................................................... *7

Air Valve ......................................................................................................................... 8

Air Pump......................................................................................................................... 8

Air Filter ......................................................................................................................... *8

Return, Supply, and Outdoor Air Ports............................................................................ 8

Sample System ............................................................................................................. *9

HVAC System Requirements........................................................................................ 10

Location Considerations ............................................................................................... 10

Procedure Overview ........................................................................................*12

Detailed Procedures ......................................................................................... 13

Installing a UPM........................................................................................................... *13

Installing Air Sampling Devices and Tubing .................................................................. 14

Trending Data.............................................................................................................. *15

Checking the Solenoid Valves ..................................................................................... *16

Calculating the OA Flow .............................................................................................. *16

Checking the Controller Application ............................................................................. *17

Reloading the Controller Application ............................................................................ *17

* Indicates those sections where changes have occurred since the last printing.

Part No. 24-8395-26 Rev. -

Code No. LIT-653425

Metasys Ventilation Controller Section

ECHNICAL

ULLETIN

for the DX-9100

M-Applications

653

Issue Date

1000

www.johnsoncontrols.com

Table of Contents

Need help?

Do you have a question about the Metasys DX-9100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Johnson Controls Metasys DX-9100

Page 1: Table Of Contents
Metasys Ventilation Controller Application for the DX-9100 Metasys Ventilation Controller Application for the DX-9100 .....3 Introduction......................*3 Key Concepts...................... 5 Johnson Controls CO 2 Concentration Samplers............*5 MVC-2000-1 Package ....................*5 Universal Packaging Module (UPM) ................6 DX-9100 ........................*7 CO 2 Sensor........................*7 Air Valve .........................
Page 2 Metasys Ventilation Controller...
Page 3: Metasys Ventilation Controller Application For The Dx-9100
Metasys Ventilation Controller Application for the DX-9100 Introduction A Johnson Controls Building Automation System (BAS), along with the Metasys® Ventilation Controller (MVC) 2000-1 Multipoint Gas Concentration Sampler, can provide building managers with a cost-effective method of addressing the Ventilation Rate Procedure found in ASHRAE (American Society of Heating, Refrigeration, and Air Conditioning Engineers) Standard 62-1999.
Page 4 Metasys Ventilation Controller This technical bulletin describes how to: • install a Universal Packaging Module (UPM) • install air sampling devices and tubing • trend data • check the solenoid valves • calculate the Outdoor Air (OA) flow • check the controller application •...
Page 5: Key Concepts
Metasys Ventilation Controller Application for the DX-9100 Key Concepts Johnson Controls CO Concentration Samplers Johnson Controls offers two 3-point, multiplexed CO measurement devices, as shown in Table 1. Table 1: Attributes of the MVC-2000-1 Product Intended Use Enclosure Controller Software...
Page 6: Universal Packaging Module (Upm)
Metasys Ventilation Controller Air Pump Sensor Air Filter 3-Way Valves Ports for Outside, Return, and Supply Air DX-9100 Mvc2000B Figure 1: Components of an MVC-2000-1 Universal Packaging Module (UPM) The MVC-2000-1 product line utilizes the EN-EWC35-0 UPM. Each EWC number ends with a “5,” which means that the UPM enclosure with cover also comes equipped with a transformer and a power box.
Page 7: Co 2 Sensor

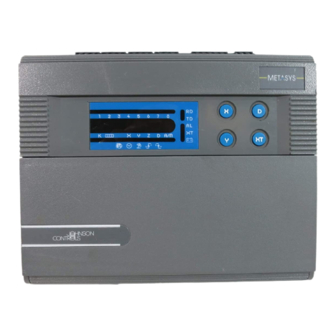

Metasys Ventilation Controller Application for the DX-9100 DX-9100 The DX-9100 is a controller manufactured and marketed by Johnson Controls. The Metasys Ventilation Controller Application of the GX-9100 Software Tool is used to program the DX-9100. DX-9100 Hardware The MVC-2000-1 product utilizes one DX-9100. The DX-9100 is factory installed in the MVC-2000-1.
Page 8: Air Valve
Metasys Ventilation Controller The CO sensor is factory mounted and wired in the MVC-2000-1 enclosure. Since it is also factory calibrated, there is no need to calibrate the CO sensor before starting the MVCA. Air Valve Each MVC-2000-1 contains two solenoid air valves. These two V11HGA-100 3-way solenoid air valves switch the input source of sampled air from one of three sampling tubes to the CO sensor.
Page 9: Sample System
Metasys Ventilation Controller Application for the DX-9100 Sample System Figure 2 shows a sample system with an MVC-2000-1 connected to a Metasys Supervisory Controller that supports the DX-9100 via an N2 Bus. The Metasys Supervisory Controller is optional and the workstation is only required for visual trending of data.
Page 10: Hvac System Requirements
HVAC system prior to installation. Refer to items that are appropriate to the installation. If any items below are questionable, contact a Johnson Controls technical support representative. • Is the HVAC system in good working condition? •...
Page 11 Metasys Ventilation Controller Application for the DX-9100 • Position: Mount the enclosure vertically. • Air Sampling Locations: Remote or local sensing is acceptable; the outdoor and return air sampling devices can be mounted up to 30.5 m (100 ft) away from the unit. The supply air sampling device can be mounted up to 9.2 m (30 ft) away from the unit.
Page 12: Procedure Overview
Metasys Ventilation Controller Procedure Overview Table 2: Using the MVCA with the DX-9100 To Do This Follow These Steps: Install a UPM In a secure location, install the UPM according to procedures listed in the Universal Packaging Module Technical Bulletin (LIT-6363070). Note shock and equipment damage hazards.
Page 13: Detailed Procedures
Metasys Ventilation Controller Application for the DX-9100 Detailed Procedures Installing a UPM To install a UPM: 1. Decide on a location for the enclosure based on the Location Considerations section of this document. 2. Install the MVC-2000-1 enclosure by following the procedures in the Universal Packaging Module Technical Bulletin (LIT-6363070).
Page 14: Installing Air Sampling Devices And Tubing
Metasys Ventilation Controller 4. For additional maneuvering space during the wiring operation, remove the bottom endcap of the UPM by disconnecting the two assembly screws. 5. Complete the field wiring to the DX-9100. 6. Reassemble the lower UPM endcap. 7. Take care not to pinch any wires. Note: Be aware that in low lighting conditions or cramped spaces, reassembly of the endcap may be difficult.
Page 15: Trending Data
Metasys Ventilation Controller Application for the DX-9100 Air Pump Sensor Direction Air Sampling of Flow Location 2 Air Filter To Air Sampling Location 1 Air Sampling Device 3-Way Valves Ports for Outside, Return, and Supply Air To Air Sampling Location 3 DX-9100 Sampling Figure 3: Air Sampling Device Installation...
Page 16: Checking The Solenoid Valves
Metasys Ventilation Controller Checking the Solenoid Valves To check the solenoid valves: 1. Listen to the valves. They produce an audible click when changing states. This should happen approximately every sixty seconds. 2. Time the changes in the valves. Are the solenoid valves changing state in the proper sequence (as detailed in Table 3)? Table 3: Commanded States of Solenoid Valves Relative to Air Sampling Sites...
Page 17: Checking The Controller Application
Metasys Ventilation Controller Application for the DX-9100 Checking the Controller Application Note: Check the controller application to verify that the system remains stable when changing from the ventilation control strategy to the temperature control strategy and that the controller that demands the highest output is in control of the system.
Page 18 Metasys Ventilation Controller Notes...
Page 19 Metasys Ventilation Controller Application for the DX-9100 Notes...
Page 20 Metasys Ventilation Controller Notes Controls Group www.johnsoncontrols.com 507 E. Michigan Street FAN 653 P.O. Box 423 M-Applications Milwaukee, WI 53201 Printed in U.S.A.
