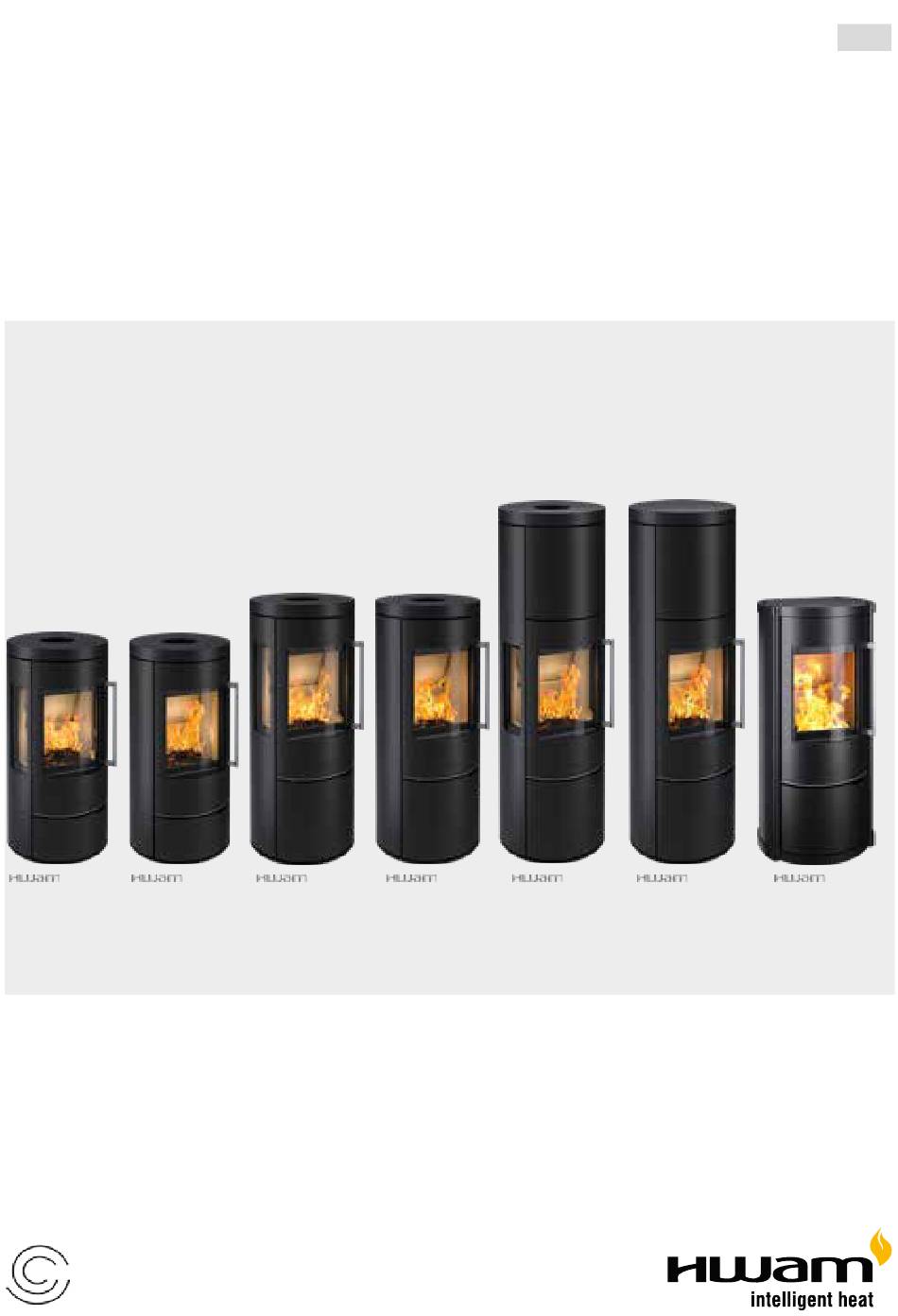

- Page 1 User's Manual 4110 4120 4130 4140 4150 4160 4240 15.09.2020 / 97-9706 www.hwam.com AUTOPILOT...
-
Page 3: Table Of Contents
Table of contents, English Drawings ........... .5-9 Installation . - Page 4 Format: Fax (+45) 86 92 22 18 29-05-2020 KHO Created Format: Fax (+45) 86 92 22 18 1:10 Scale: Created by: Item: Illustrationer Hwam 4100 Item number: 1:10 Illustrationer Hwam 4100 Item number: Scale: Created by: Item: 29-05-2020 Thickness: Created date:...
-
Page 5: Drawings
Page 5 of 20 pages... - Page 6 Page 6 of 20 pages...
- Page 7 Page 7 of 20 pages...
- Page 8 Danskan: Alpha - Christ Novo - Solo H Karat - Topo - Twist - Dom N (Dom Classic (Prisma - DK Danskan DSB Vecto - Nero Orbit - Sirio Danos Modus Nuro - Logo Page 8 of 20 pages...
- Page 9 Page 9 of 20 pages...
-
Page 10: Installation
In general Congratulations on your new HWAM woodburning stove. We are pleased that you have chosen a HWAM woodburning stove and confident that it will give you much pleasure. To ensure optimum operation and safety, we recommend that the installation should be carried out by an authorised HWAM retailer or a fitter recommended by the retailer. - Page 11 The combustion chamber opening is 28.4 cm wide. Distance to inflammable materials Your HWAM woodburning stove should always be installed on a non-combustible hearth. If it is installed on a wooden floor or similar, the floor must be covered with a non-combustible material.
- Page 12 The chimney and flue duct must be of flue class T400 and be CE marked. Furthermore, it must have obtained the classification of G in soot fire testing. The required distance to combustible material must be complied with in accordance with the brand label. Ask your HWAM retailer for further information.
- Page 13 The chimney draft is created by the differences in temperature inside and outside the chimney. The higher the temperature within the chimney, the greater the draft. It is therefore crucial that the chimney is heated well through before regulating the air supply and thus limiting the combustion in the stove (a brick chimney takes longer to warm up than a steel chimney).
-
Page 14: Firing Manual - Wood
Storage of wood A moisture content of 12-18% is achieved by storing recently felled wood outdoors under a lean-to for at least one year, preferably 2 years. Wood stored indoors has a tendency to become too dry and combust too quickly. However, it might be advantageous to store fuel for lighting a fire indoors for a few days prior to use. - Page 15 There is a suitable layer of embers when the bottom of the stove is covered completely and the embers are glowing in a circle around the shaking grate. Put at least 2 pieces of wood into the stove, weighing up to 1 kg each. HWAM Autopilot™manages the regulation of air supply. The temperature can, ®...
-
Page 16: Firing In General
Insufficient firing If the fireproof materials in the combustion chamber are blackened after a fire, then the stove is polluting, and the HWAM Autopilot™ system is malfunctioning. Therefore, more air must be supplied by pushing ®... -
Page 17: Maintenance
However, it should be replaced, if there are actual holes due to parts of the lining falling off or when, due to wear and tear, it has been reduced to less than half its original thickness. HWAM Autopilot™ ®... -
Page 18: Operational Problems
Door/glass A sooty glass door can easily be cleaned with a piece of moist kitchen roll dipped in ash. Go about it in vertical movements (up and down). Follow up with a dry piece of kitchen roll. Seals Check frequently to ensure that seals in the door and ash pan are intact and not brittle. Failing this, they should be replaced. -
Page 19: Declaration Of Performance
EclaratIon oF ErFormancE The DoP can be downloaded from our website via the following links: www.hwam.com/dop/4100 www.hwam.com/dop/4200 Page 19 of 20 pages... - Page 20 www.hwam.com...
