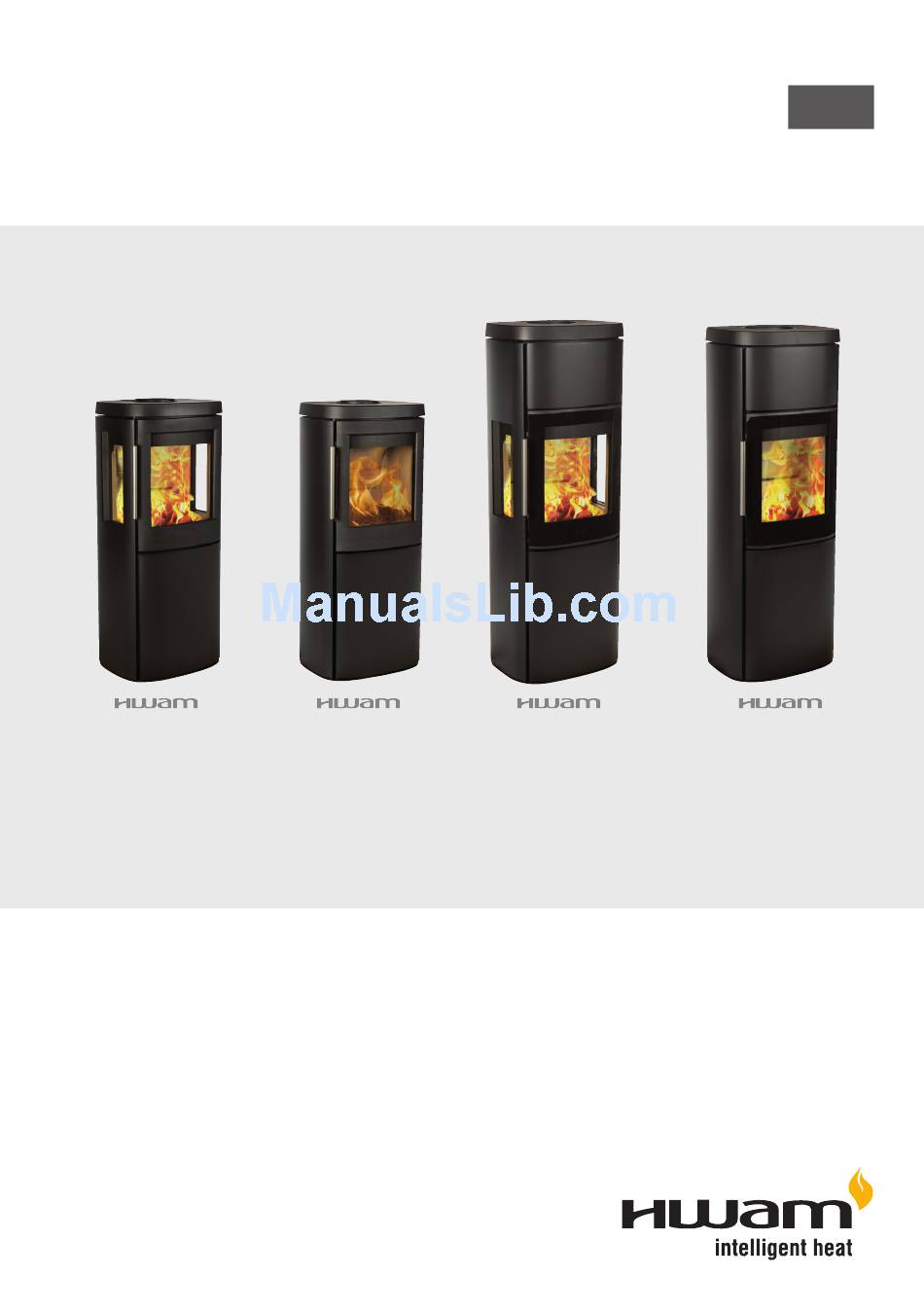

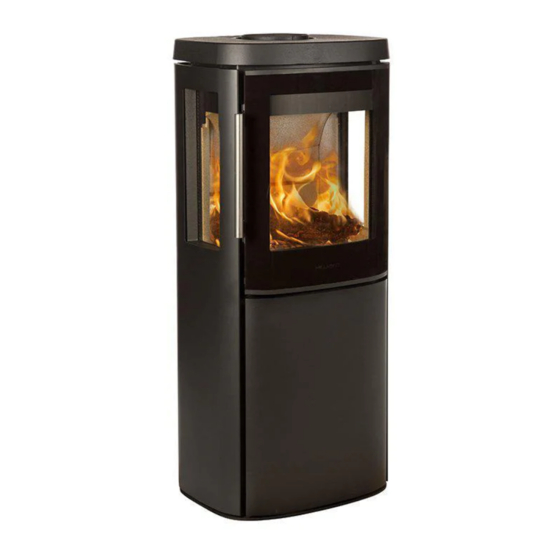

- Page 1 User's Manual 4530 4560 4540 4550 27.05.2016 / 97-9687 www.hwam.com...
-
Page 3: Table Of Contents
Table of contents, English Drawings ............Installation. -
Page 9: Installation
A window that opens or an adjustable air vent should be sufficient, but it is also possible to connect the stove to a HWAM fresh air system. The air inlet/grating must be placed so that they do not become blocked. -
Page 10: Drawings
The chimney must have an easily accessible soot door. Smoke pipe and chimney must always be suitable for a stove connection. Ask your HWAM dealer for more information. -
Page 11: Drawings
5. Wall rosette. Covers disruption to wall around pipe sleeve. 6. Joint. Sealed with packing material. 7. Smoke outlets of the HWAM stove. 8. Cover plate in the external rear plate – break off if a rear outlet is required. -
Page 12: Firing Manual - Wood
trick is to quickly get some flames going. Split the wood into extra fine pieces, use an extra firelighter, etc. If the stove has not been used for a longer period, it is important to check that the chimney pipe is not blocked. It is possible to connect several devices to the same chimney. - Page 13 Fuel type Length in cm Diameter in cm Wood for kindling a fire (finely chopped) 20-31 Chopped wood 20-31 Special fire lighting guide for stoves with soapstone or sandstone cladding Soapstone and sandstone are natural products which need to adjust to temperature changes. We recommend following the procedure below: 1.
-
Page 14: Firing In General
The maximum allowed amount of fuel per hour is: Model Wood HWAM 4500 2.4 kg If these limits are exceeded, the stove will no longer be covered by the factory guarantee, and it may also become damaged due to excessive heat. The stove has been approved for intermittent use. -
Page 15: Maintenance
and the automatic air flow regulation system is malfunctioning. Therefore, more air must be supplied by turning the regulator clockwise (to the right). It may also be necessary to burn more wood. How to achieve the best combustion • Use clean and dry wood. Wet wood results in inefficient combustion, plenty of smoke, and soot. - Page 16 HWAM Autopilot™ (Drawing G) Lift the top plate off the stove. Remove the rear plate by loosening the two screws. On a cold stove, the starting point of the feeler is controlled.
-
Page 17: Operational Problems
• If the steel plates in the combustion chamber develop scales or become deformed, this is due to exces- sive heat. Stop using the stove and contact the dealer. At interruptions that you cannot yourself rectify, you should contact the dealer. EclaratIon oF ErFormancE The DoP can be downloaded from our website via the following links: www.hwam.com/dop/4500... - Page 20 www.hwam.com...
