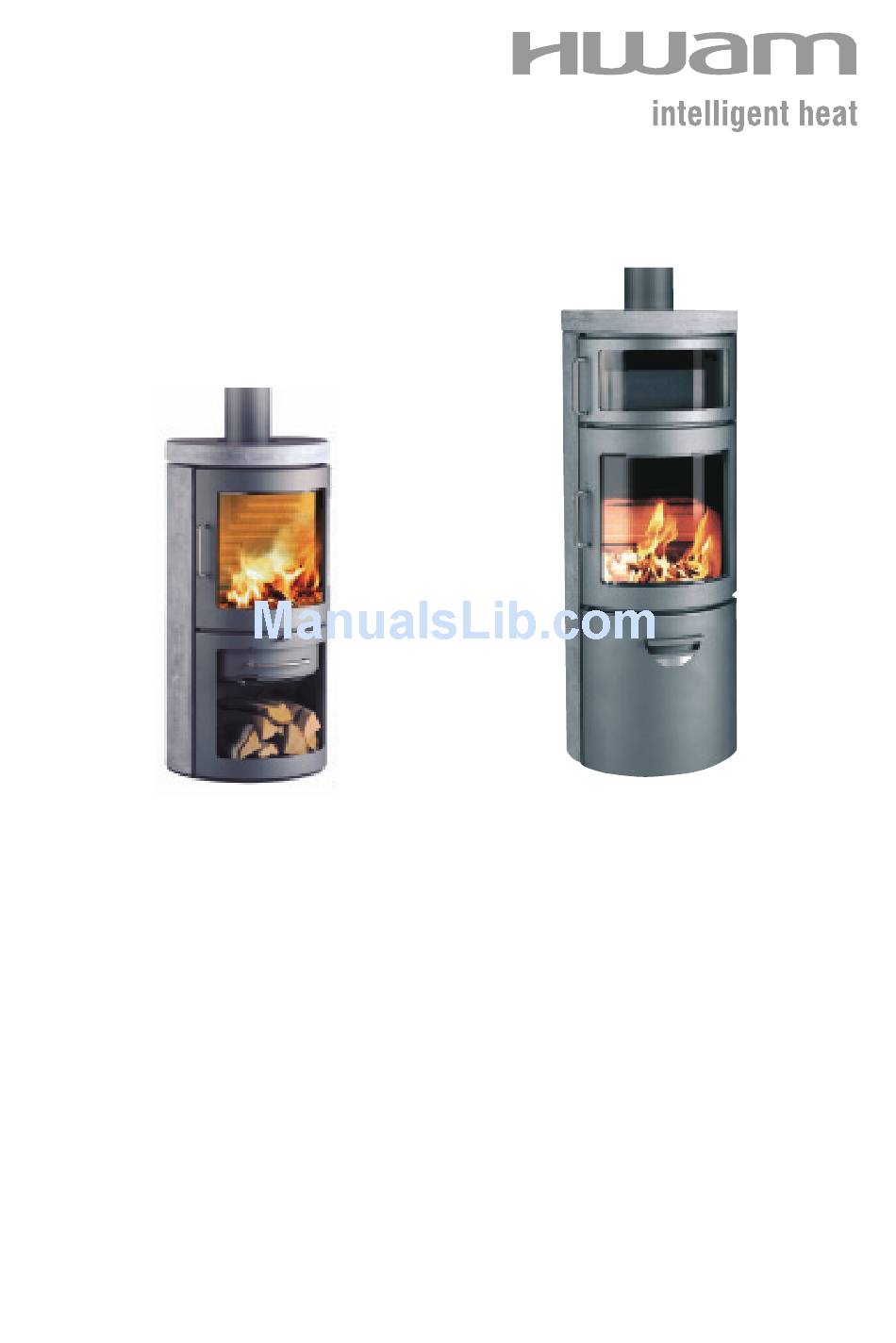

HWAM Monet and HWAM Monet H Wood Stove
User's Manual and Installation Guide
HWAM Monet with soapstone
HWAM Monet H with soapstone,
and wood compartment
drawer, and baking door
This manual covers all versions of the HWAM Monet and the HWAM Monet H
Manufactured by:
HWAM AS
Nydamsvej 53
Hørning, 8362
Denmark
TEL: +45 86 92 18 33
Web Site: www.hwam.com
Distributed in the United States and Canada by:
HWAM North America
211 Reservoir Rd.
Plymouth, New Hampshire 03264
TEL: 603-236-7045
www.hwamna.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Monet and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HWAM Monet

Summary of Contents for HWAM Monet

  • Page 1 User’s Manual and Installation Guide HWAM Monet with soapstone HWAM Monet H with soapstone, and wood compartment drawer, and baking door This manual covers all versions of the HWAM Monet and the HWAM Monet H Manufactured by: HWAM AS Nydamsvej 53 Hørning, 8362...

  • Page 2: Table Of Contents

    Table of Contents 1. Introduction ................3 Warnings ................3 2. Installation ................4 Pre Installation Check List ............5 Clearance to combustibles ...........6 Floor protection ..............6 Ceiling Height ..............6 Combustible Wall Clearance for top vent installation ..6 Combustible Wall Clearance for rear vent installation ..7 Draft Requirements ..............7 Chimney Installation .............8 Top vent installation ..............9...

  • Page 3: Introduction

    1. I ntroduction We welcome you as a new owner of a HWAM wood-burning stove. The HWAM wood- burning stove is one of the finest in the world. This manual will explain the installation, operation and maintenance of the HWAM wood-burning stove. Please familiarize yourself with the owner’s manual before operating your stove and save the manual for...

  • Page 4: Installation

    2. I nstallation Warning If your HWAM wood-burning stove is not properly installed, operated and maintained, a house fire may result. For your safety, follow all installation, operation and maintenance directions. Contact your local building officials for information on restrictions and installation requirements in your area.

  • Page 5: Pre Installation Check List

    The metal label permanently attached to the back of every HWAM wood-burning stove shows that it has been tested to current UL and ULC safety standards, and gives the name of the testing laboratory.

  • Page 6: Clearance To Combustibles

    NOTE If you plan to vent your stove into an existing masonry chimney, have the chimney inspected by a local fire marshal or qualified installer. Remember that the chimney and its location on the roof heavily influents the stoves performance. An oversized flue may not provide effective draft and a flue liner may be required.

  • Page 7: Combustible Wall Clearance For Rear Vent Installation

    Draft Requirements HWAM Monet is only one component of the total system. The venting system is equally important for achieving the required flow of combustion air to the firebox and for safely removing unwanted combustion by-products from the appliance. If the venting system’s design does not promote these ends, the system may not function properly.

  • Page 8: Chimney Installation

    Do not connect this unit to a chimney flue serving another appliance. Do not connect to any air distribution duct or system. HWAM Monet is listed for installation as a vertically top or rear vented wood-burning stove using a listed class A (UL103HT) for Canada (CAN/ULC-S629) factory built chimney exiting through the ceiling/attic/roof.

  • Page 9: Top Vent Installation

    24 gauge black steel or 26 gauge blued steel Aluminum and galvanized steel pipe is not acceptable for use with the HWAM wood-burning stove. These materials cannot withstand the extreme temperatures of a wood fire and can give off toxic fumes when heated.

  • Page 10: Rear Vent Installation

    18" below a combustible ceiling. From the factory the stove is prepared for top mounting of the flue collar, but all HWAM wood-burning stoves have an optional rear flue outlet, therefore the flue collar can be fitted either on the top or at the rear as required.

  • Page 11: Mounting The Connector Pipe

    Required installation components: Chimney cap Insulated chimney Tee section Tee support bracket Chimney connector pipe Wall thimble Wall strap Mounting the connector pipe to the stove Pipe is placed in smoke outlet. The 3 screws are screwed into the pipe to make a mark in the pipe.
  • Page 12 Combustible Wall Chimney Connector Pass-Throughs Method A 12” (304.8 mm) Clearance to Combustible Wall Member: Using a minimum thickness 3.5" (89 mm) brick and a 5/8" (15.9 mm) minimum wall thickness clay liner, construct a wall pass-through. The clay liner must conform to ASTM C315 (Standard Specification for Clay Fire Linings) or its equivalent.
  • Page 13 Method C 6" (152.4 mm) Clearance to Combustible Wall Member: Starting with a minimum 24 gage (.024" [.61 mm]) 6" (152.4 mm) metal chimney connector, and a minimum 24 gage ventilated wall thimble which has two air channels of 1 in. (25.4 mm) each, construct a wall pass-through.

  • Page 14: Chimney Height Requirements

    Notes Connectors to a masonry chimney, excepting method B, shall extend in one continuous section through the wall pass-through system and the chimney wall, to but not past the inner flue liner face. A chimney connector shall not pass through an attic or roof space, closet or similar concealed space, or a floor, or ceiling.
  • Page 15 NOTE: This page intentionally blank Page 15...

  • Page 16: Check The Loose Parts

    7. Cover plate. Should always cover the grate. 8. There is a drawer with a basket for kindling in HWAM Monet with drawer, HWAM Monet H with drawer. 9. Baffle plate: The HWAM wood-burning stove has one baffle plate that must be installed in the upper firebox.
  • Page 17 HWAM Monet HWAM Monet H 1. Side plates 2. Smoke Shelf Exploded view of the Skamol re- 3. Bottom plates fractory plates. Skamol is a very 4. Front plate heat resistant and highly insulat- 5. Back plate ing material made of processed vermiculite.
  • Page 18 Handle The handle for the door is removable. Please take notice that it will fall out when the door is closed. Handle Loose handles (Drawing H) The handle on the door may loosen slightly after being used for some time. If this happens it can be easily tightened again.

  • Page 19: Instructions For Use

    Automatic Control (Drawing G) Lift off the rear panel. The starting point of the control arm should be checked. The angle of the control arm on a cold stove is about 10° above horizontal. It should move easily and bounce when you push it, no matter if the stove is cold or hot.

  • Page 20: Baffle Plates & Skamol Refractory

    Baffle Plate The HWAM wood-burning stove has one baffle plate that must be installed in the upper firebox. When in the proper position, the rear edges of the baffle plates should touch the back wall of the firebox.

  • Page 21: Room Ventilation & Draft Requirements

    Please refer to your local building codes. Draft Requirements The HWAM wood-burning stove is only one component of the total system. The venting system is equally important for achieving the required flow of combustion air to the firebox and for safely removing unwanted combustion by-products from the appliance.

  • Page 22: Operation

    (If your wood supply is not seasoned, ask your authorized HWAM dealer where to obtain seasoned fuel in your area). Wood should be stored in a dry place for at least two years before being used for fuel. Some trees have very high moisture content and it is necessary to thoroughly dry the wood.

  • Page 23: Starting The Stove

    Starting the Stove Do not elevate the fire on a grate. Build fire directly on the hearth inside the stove. The air control rod (1) is pushed farthest to the right and the air wash control in or under the door (2) is opened completely. Place 2 fire lighters at the bottom. On top of this, place an amount of split kindling wood equivalent to two logs (approx.

  • Page 24: Maintenance

    6. M aintenance Ash Disposal and Removal Caution Make sure the fire is out and stove is cold before removing ashes! Never burn your stove with the ash drawer open. Be careful when you remove ashes from the stove, there may be embers left as long as 24 hours after the stove was last used. Ashes should be placed in a metal container with a tight fitting lid and moved outdoors immediately.

  • Page 25: Removing Skamol Smoke Plate For Cleaning

    1 to 5. Warning! Do not operate wood-burning stove without baffle plates properly installed or warranty will be void. Warning! Do not use substitute materials. Always use listed spare parts from HWAM A/S. Door Glass A glass cleaner designed for wood-burning stoves is recommended for cleaning the glass.

  • Page 26: Replacing Broken Door Glass

    Replacing Door Glass The door must be removed from the stove before installing new glass. When you replace the glass you need to install 2 sets of gaskets between the glass and the door. One continuous gasket is between the glass and the outer door frame and another is between the glass and the inner door frame.

  • Page 27: Troubleshooting

    7. T roubleshooting Smoke - Insufficient chimney draft! - Check if the chimney has the right dimension. - Check if the smoke pipe or chimney is blocked. - Check if the chimney has the right height compared to the surroundings. - Wood with too high moisture content.

  • Page 28: Automatic Air Control System Diagram

    Automatic Air Control Parts and Assembly Diagram 1. Self-adhesive gaskets fixed to the stove body. 2. 6 mm diameter washer to be placed between stove body and automatic system. 3. Slide gate assembly 4. 6 mm screws 5. Sensor system 6.

  • Page 29: Spare Part List

    Spare part list HWAM Monet & MonetH Spare part number Door Door complete, black 22-1156 Door complete, gray 22-1156gray 22-1157 Glass incl. Gasket Set Hinges 22-1158 Glass fixation (2 pieces) 22-0345 Door closing system incl. Handle 22-1159 Handle incl. screws + washers...
