HWAM 4510 User Manual

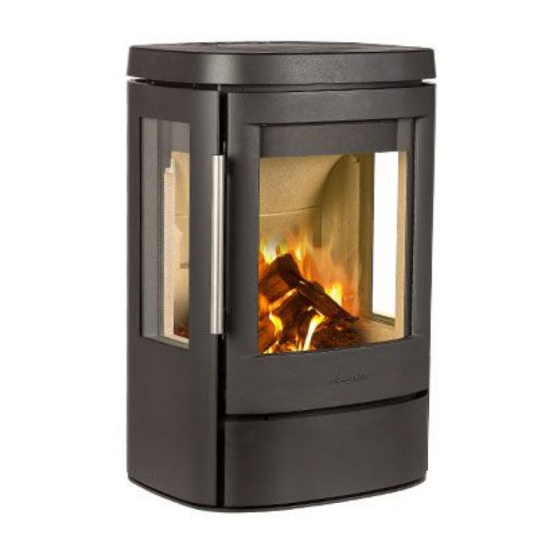

Wood-burning stove complete with a hwam smartcontrol
Hide thumbs
Also See for HWAM 4510:
- User manual (24 pages) ,
- Quick start manual (16 pages) ,
- User manual (20 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for HWAM HWAM 4510
Summary of Contents for HWAM HWAM 4510

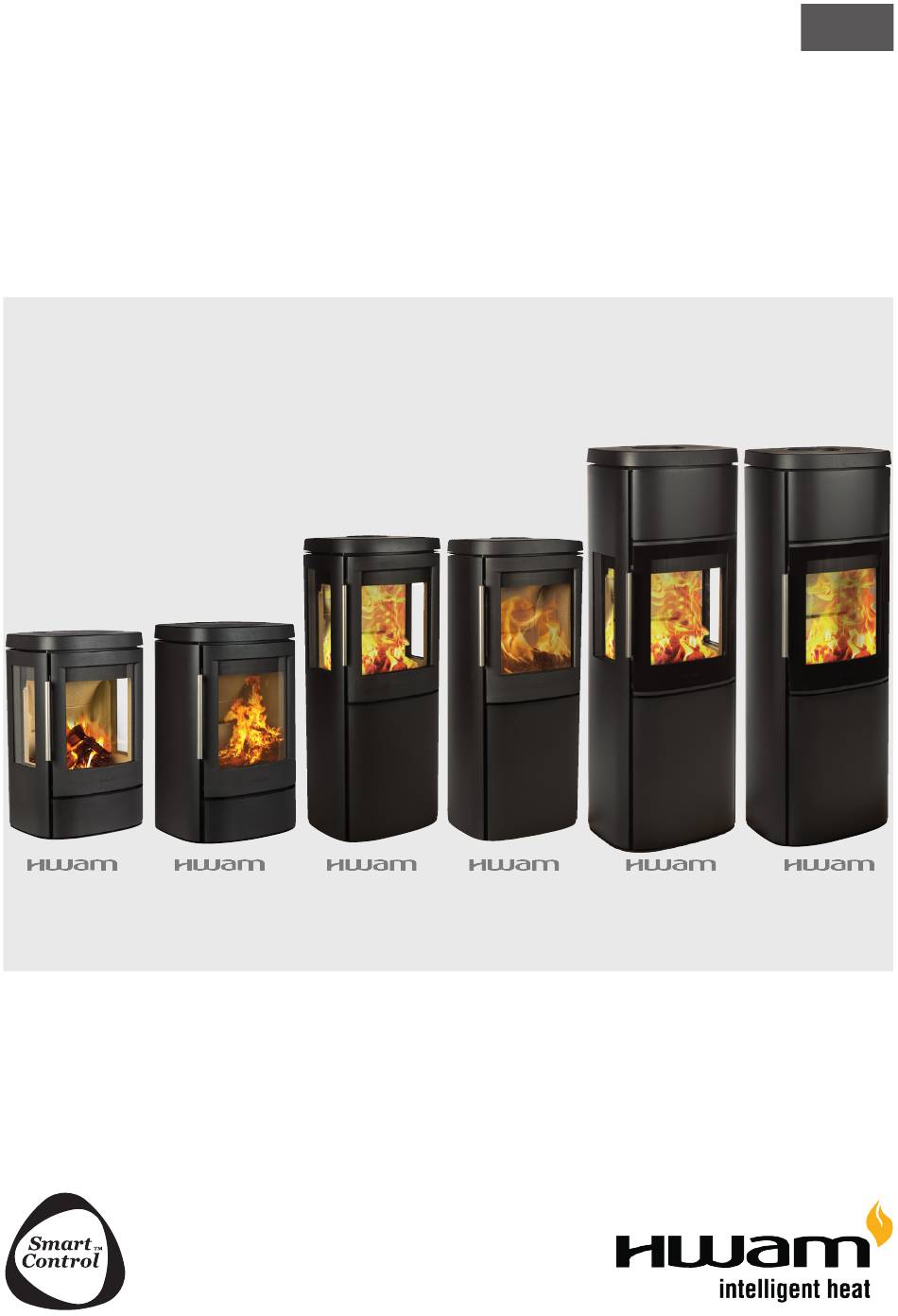

- Page 1 User's Manual 4510 4520 4530 4540 4550 4560 01.11.2020 / 97-9688 www.hwam.com...
-
Page 3: Table Of Contents
® HWAM ......... 10 nstallation . -
Page 4: Drawings
Page 4 of 24 pages... - Page 5 Page 5 of 24 pages...
- Page 6 Page 6 of 24 pages...
- Page 7 Page 7 of 24 pages...
- Page 8 Page 8 of 24 pages...
- Page 9 Page 9 of 24 pages...
-
Page 10: Hwam ® Smartcontrol Tm
Congratulations on your new wood-burning stove complete with a HWAM SmartControl ® We are pleased that you have chosen a HWAM woodburning stove and confident that it will give you much pleasure. The HWAM SmartControl is a digital control of the combustion in your new wood-burning stove. The ®... -
Page 11: Nstallation
In general To ensure optimum operation and safety, we recommend that the installation should be carried out by an authorised HWAM retailer or a fitter recommended by the retailer. For an overview of HWAM retailers, visit www.hwam.com under “Retailer locations”. - Page 12 IMPORTANT FOR UK (for all other countries please see separate text below) • In case of wall installation, HWAM 4510/4520 must be suspended at least 17.5 cm above an combustible floor (measured from the bottom plate of the stove). The above require- ment applies even if the floor is fitted with a floor plate.
- Page 13 IMPORTANT FOR ALL COUNTRIES BUT UK (for UK please see separate text above) • In case of wall installation, HWAM 4510/4520 must be suspended at least 28.5 cm above an combustible floor (measured from the bottom plate of the stove). The above require- ment applies even if the floor is fitted with a floor plate.
- Page 14 5. Wall rosette. Covers disruption to wall around pipe sleeve. 6. Joint. Sealed with packing material. 7. Smoke outlets of the HWAM stove. 8. Cover plate in the external rear plate – break off if a back outlet is required.
- Page 15 If the chimney is too tall to be cleaned from above, it must be equipped with a soot door. In case of a chimney fire and overheating, the HWAM SmartControl will enter a security mode and ®...
-
Page 16: Firing Manual - Wood
IrIng MAnuAl Wood Your first heating session The lacquer will be fully hardened after the stove has been used, and the door and the ash pan should be opened very carefully as there will otherwise be a risk that the gaskets will stick to the lacquer. In addi- tion the lacquer may initially give off an unpleasant odour, so make sure that the room is well ventilated. - Page 17 In certain cases it is necessary to assist the draught in the chimney by opening the door to the burning chamber 3-5 minutes before lightning the stove. Read more on www.hwam.com about the function of the chimney.
- Page 18 The HWAM SmartControl ® ® will signal that a restoking is due at the flue gas temperature of 180° C, and at 100° C the HWAM ® SmartControl will enter standby mode and all dampers will close.
-
Page 19: Firing In General
® combustion. A good combustion is achieved when the fire gets the right amount of oxygen supply at the right time and place in the combustion chamber. The HWAM SmartControl allows for variations ®... -
Page 20: Maintenance
AIntenAnCe Cleaning Any maintenance of the stove should only be carried out when it is cold. Daily maintenance is limited to vacuum cleaning the stove externally, using the soft brush attachment. You can also dust the stove using a dry, soft cloth or brush. But remember, only when the stove is cold. Do not use water, spirit or any other kind of cleaner, as this will damage the lacquer. -
Page 21: Operational Problems
Guarantee The guarantee does not cover damage due to insufficient maintenance! Maintenance Alarms If a maintenance alarm goes off, you can continue using the wood-burning stove, but contact your retailer as soon as possible. Your stove could be affected by impure combustion. perAtIonAl probleMS Blackened glass •... -
Page 22: Declaration Of Performance
The DoP can be downloaded from our website via the following links: www.hwam.com/dop/4500ihs Page 22 of 24 pages... -
Page 23: Product Information Ecodesign
Product information on solid fuel local space heaters according to Comission regulation (EU) 2015/1185 HWAM 4510 IHS, HWAM 4520 IHS, HWAM 4530 IHS, Model HWAM 4540 IHS, HWAM 4550 IHS, HWAM 4560 IHS Direct heat output [kW] Indirect heating functionality... - Page 24 www.hwam.com...
