User's Manual
4620
4640
4660
01.11.2020 / 97-9685
www.hwam.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4620 and is the answer not in the manual?

Questions and answers

Related Manuals for HWAM 4620

Summary of Contents for HWAM 4620

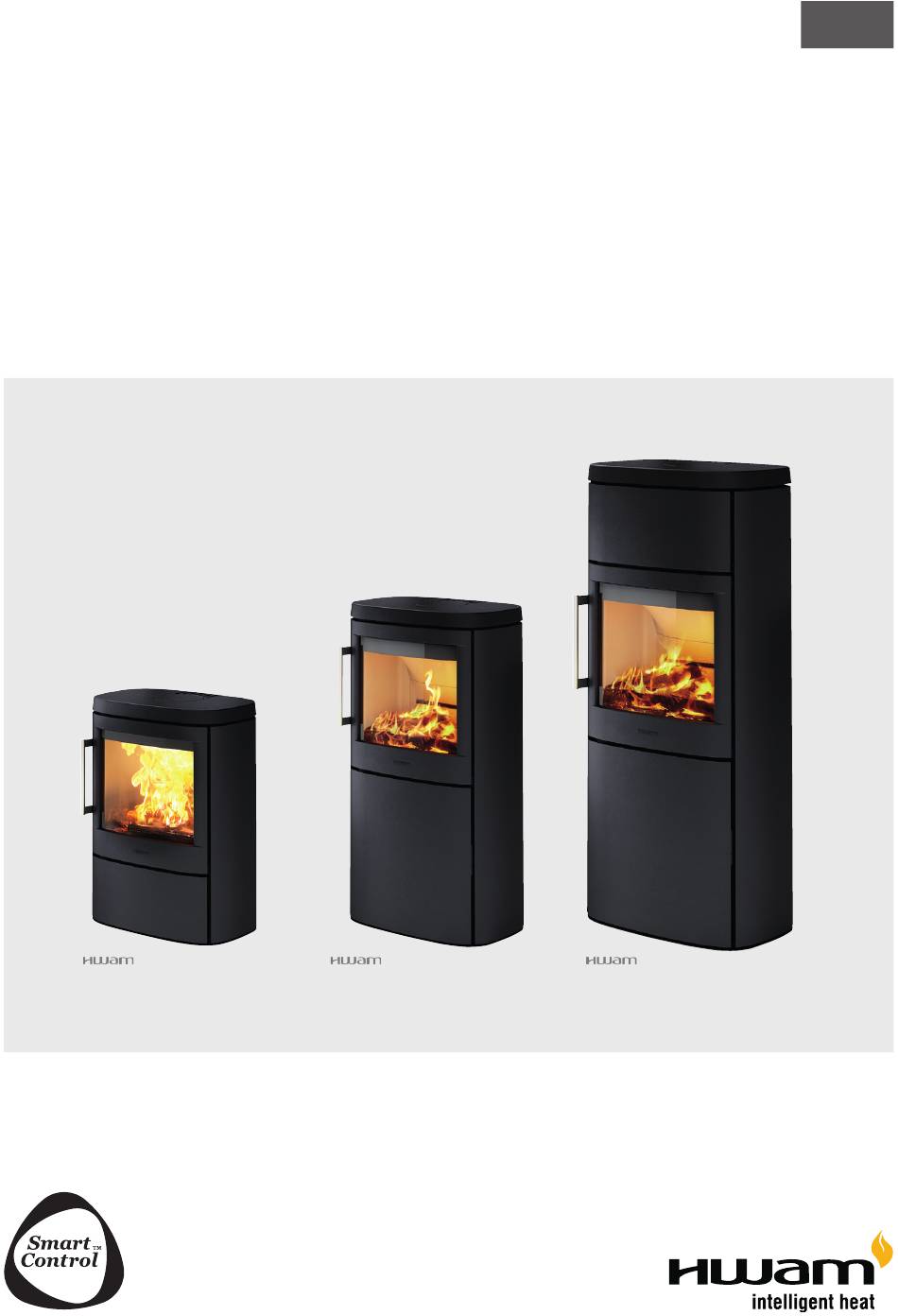

  • Page 1 User's Manual 4620 4640 4660 01.11.2020 / 97-9685 www.hwam.com...

  • Page 3: Table Of Contents

    Drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-8 HWAM SmartControl ®...

  • Page 4: Drawings

    Page 4 of 20 pages...
  • Page 5 Page 5 of 20 pages...
  • Page 6 Page 6 of 20 pages...
  • Page 7 Page 7 of 20 pages...
  • Page 8 Page 8 of 20 pages...
  • Page 9 Page 9 of 20 pages...

  • Page 10: Hwam ® Smartcontrol Tm

    Congratulations on your new wood-burning stove complete with a HWAM SmartControl ® We are pleased that you have chosen a HWAM woodburning stove and confident that it will give you much pleasure. The HWAM SmartControl is a digital control of the combustion in your new wood-burning stove. The ®...

  • Page 11: Installation

    In general To ensure optimum operation and safety, we recommend that the installation should be carried out by an authorised HWAM retailer or a fitter recommended by the retailer. For an overview of HWAM retailers, visit www.hwam.com under “Retailer locations”.
  • Page 12 European, national and local regulations must be observed in terms of the size and thickness of a non- combustible floor covering the floor in front of the combustion chamber opening. Ask your HWAM retailer for assistance. The combustion chamber opening is 45,0 cm wide.
  • Page 13 The chimney and flue duct must be of flue class T400 and be CE marked. Furthermore, it must have obtained the classification of G in soot fire testing. The required distance to combustible material must be complied with in accordance with the brand label. Ask your HWAM retailer for further information.
  • Page 14 5. Wall rosette. Covers disruption to wall around pipe sleeve. 6. Joint. Sealed with packing material. 7. Smoke outlets of the HWAM stove. 8. Cover plate in the external rear plate – break off if a rear outlet is required.
  • Page 15 If the chimney is too tall to be cleaned from above, it must be equipped with a soot door. In case of a chimney fire and overheating, the HWAM SmartControl will enter a security mode and ®...

  • Page 16: Firing Manual - Wood

    IrIng MAnuAl Wood Your first heating session The lacquer will be fully hardened after the stove has been used, and the door and the ash pan should be opened very carefully as there will otherwise be a risk that the gaskets will stick to the lacquer. In addi- tion the lacquer may initially give off an unpleasant odour, so make sure that the room is well ventilated.
  • Page 17 In certain cases it is necessary to assist the draught in the chimney by opening the door to the burning chamber 3-5 minutes before lightning the stove. Read more on www.hwam.com about the function of the chimney.
  • Page 18 The HWAM SmartControl ® ® will signal that a restoking is due at the flue gas temperature of 180° C, and at 100° C the HWAM ® SmartControl will enter standby mode and all dampers will close.

  • Page 19: Firing In General

    ® combustion. A good combustion is achieved when the fire gets the right amount of oxygen supply at the right time and place in the combustion chamber. The HWAM SmartControl allows for variations ®...

  • Page 20: Maintenance

    AIntenAnCe Cleaning Any maintenance of the stove should only be carried out when it is cold. Daily maintenance is limited to vacuum cleaning the stove externally, using the soft brush attachment. You can also dust the stove using a dry, soft cloth or brush. But remember, only when the stove is cold. Do not use water, spirit or any other kind of cleaner, as this will damage the lacquer.

  • Page 21: Operational Problems

    Maintenance Alarms If a maintenance alarm goes off, you can continue using the wood-burning stove, but contact your retailer as soon as possible. Your stove could be affected by impure combustion. perAtIonAl probleMS Blackened glass • The wood is too damp. Only use wood stored for at least 12 months under cover and with a moisture level of 12-18% RH.

  • Page 22: Declaration Of Performance

    The DoP can be downloaded from our website via the following links: www.hwam.com/dop/4600ihs Page 22 of 20 pages...

  • Page 23: Product Information Ecodesign

    Product information on solid fuel local space heaters according to Comission regulation (EU) 2015/1185 HWAM 4620 IHS, HWAM 4640 IHS, HWAM 4660 IHS Model Direct heat output [kW] Indirect heating functionality Indirect heat output [kW] With electronic room temperature control...
  • Page 24 www.hwam.com...
