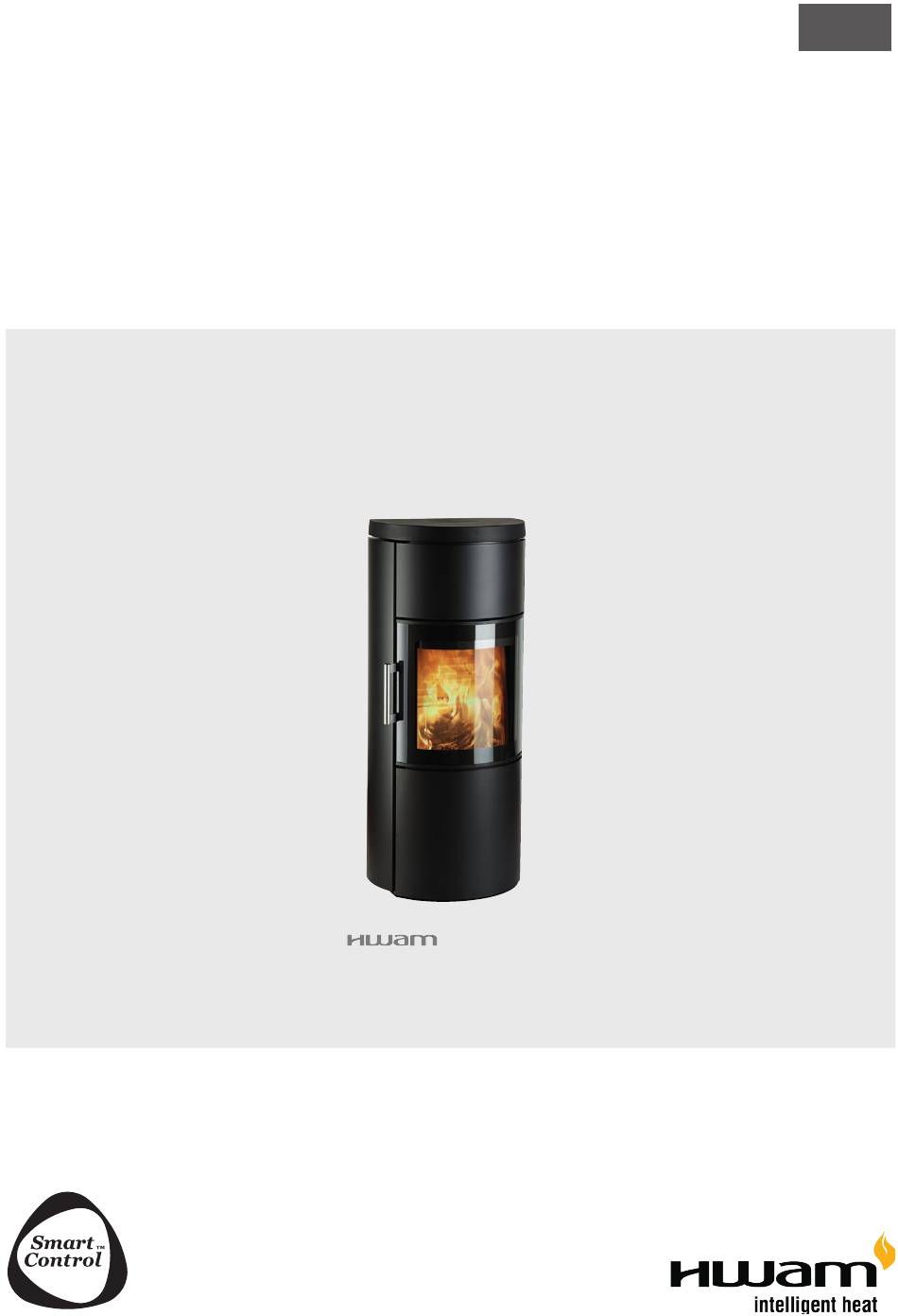

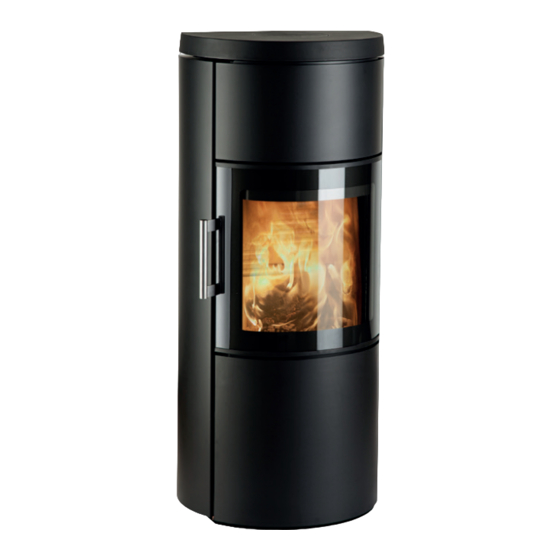

- Page 1 Users manual 3520 01.11.2020 / 97-9662 www.hwam.com...
-
Page 2: Table Of Contents
Drawings ........... .3-5 HWAM SmartControl ®... -
Page 3: Drawings
45˚ Page 3 of 20 pages... - Page 4 Page 4 of 20 pages...
- Page 5 Page 5 of 20 pages...
-
Page 6: Hwam ® Smartcontrol Tm
Congratulations on your new wood-burning stove complete with a HWAM SmartControl ® We are pleased that you have chosen a HWAM woodburning stove and confident that it will give you much pleasure. The HWAM SmartControl is a digital control of the combustion in your new wood-burning stove. The ®... -
Page 7: Installation
In general To ensure optimum operation and safety, we recommend that the installation should be carried out by an authorised HWAM retailer or a fitter recommended by the retailer. For an overview of HWAM retailers, visit www.hwam.com under “Retailer locations”. - Page 8 The chimney and flue duct must be of flue class T400 and be CE marked. Furthermore, it must have obtained the classification of G in soot fire testing. The required distance to combustible material must be complied with in accordance with the brand label. Ask your HWAM retailer for further information.
- Page 9 • Brick-built jamb of flue (11). • Built-in pipe sleeve (12). Fits smoke flue. • Wall rosette (13). Covers disruption to wall around pipe sleeve. • Joint (14). Sealed with packing material. • Smoke outlets (15) of the HWAM stove. Page 9 of 20 pages...
- Page 10 • Removable rear plate (2a). This must always be mounted if the stove is placed next to a combustible wall. • Removable heat shield (2b) - HWAM 3520. This must always be mounted if the stove is placed next to a combustible wall.
-
Page 11: Firing Manual - Wood
IrIng MAnuAl Wood Your first heating session The lacquer will be fully hardened after the stove has been used, and the door and the ash pan should be opened very carefully as there will otherwise be a risk that the gaskets will stick to the lacquer. In addi- tion the lacquer may initially give off an unpleasant odour, so make sure that the room is well ventilated. - Page 12 In certain cases it is necessary to assist the draught in the chimney by opening the door to the burning chamber 3-5 minutes before lightning the stove. Read more on www.hwam.com about the function of the chimney.
- Page 13 The HWAM SmartControl ® ® will signal that a restoking is due at the flue gas temperature of 180° C, and at 100° C the HWAM ® SmartControl will enter standby mode and all dampers will close.
-
Page 14: Firing In General
® combustion. A good combustion is achieved when the fire gets the right amount of oxygen supply at the right time and place in the combustion chamber. The HWAM SmartControl allows for variations ®... -
Page 15: Maintenance
AIntenAnCe Cleaning Any maintenance of the stove should only be carried out when it is cold. Daily maintenance is limited to vacuum cleaning the stove externally, using the soft brush attachment. You can also dust the stove using a dry, soft cloth or brush. But remember, only when the stove is cold. Do not use water, spirit or any other kind of cleaner, as this will damage the lacquer. - Page 16 Surface Usually, it is not necessary to any treatment to the painted surfaces of the wood-burning stove. Any damage to the paint may, however, be remedied with spray paint, which can be bought from your stove retailer. Guarantee The guarantee does not cover damage due to insufficient maintenance! Maintenance Alarms If a maintenance alarm goes off, you can continue using the wood-burning stove, but contact your retailer as soon as possible.
-
Page 17: Operational Problems
perAtIonAl probleMS Blackened glass • The wood is too damp. Only use wood stored for at least 12 months under cover and with a moisture level not exceeding 12-18 % RH. • Faulty seal in door. Fit new seal. Smoke in the room when opening door •... -
Page 18: Declaration Of Performance
The DoP can be downloaded from our website via the following links: www.hwam.com/dop/3520ihs Page 18 of 20 pages... -
Page 19: Product Information Ecodesign
• Always dispose of items in a way that is as sustainable as possible and that is in line with the current environmental protection, reprocessing/recycling and disposal technology HWAM A/S • Nydamsvej 53 • DK-8362 Hørning Page 19 of 20 pages... - Page 20 www.hwam.com...
