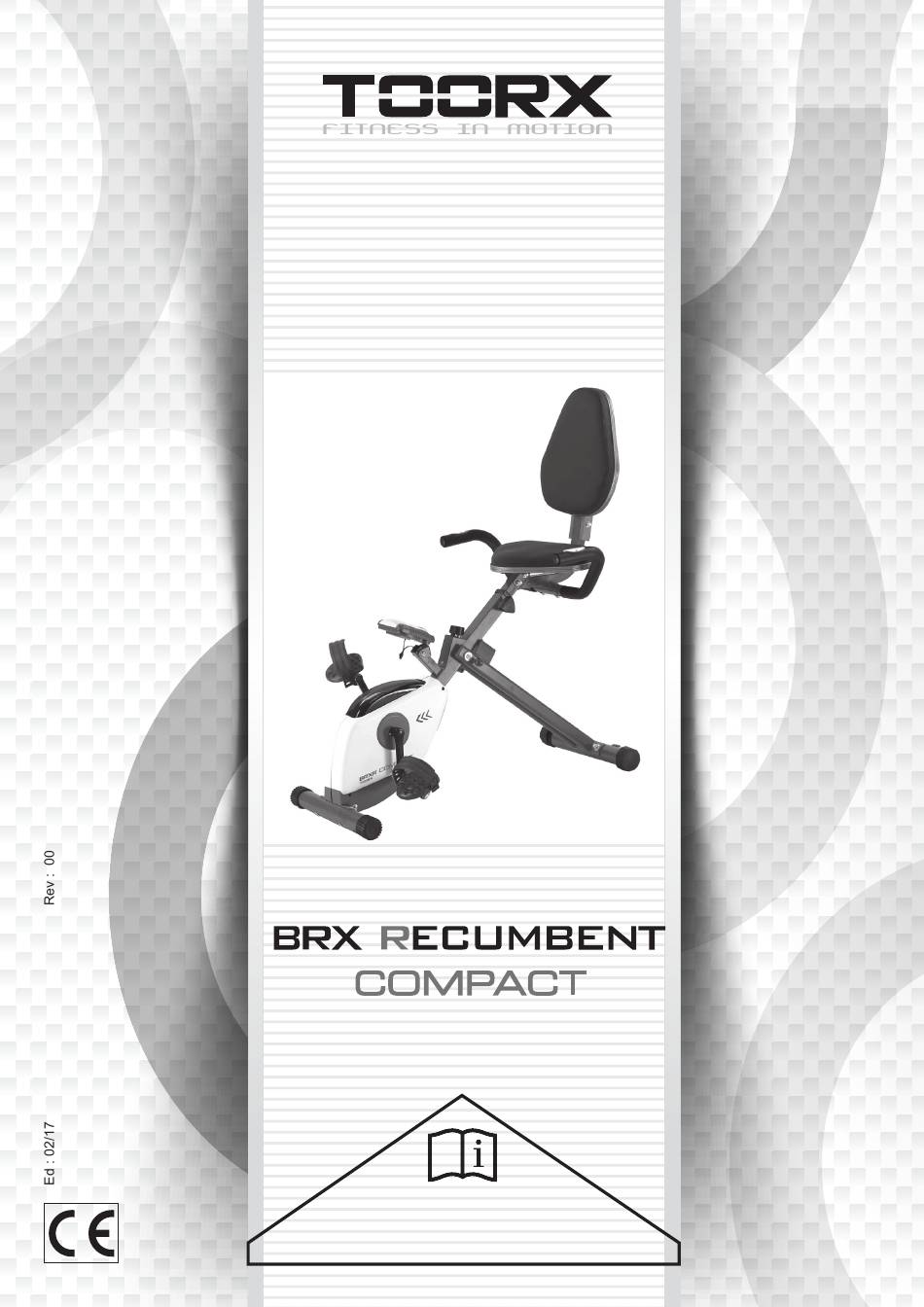

  • Page 1 INSTRUCTION...

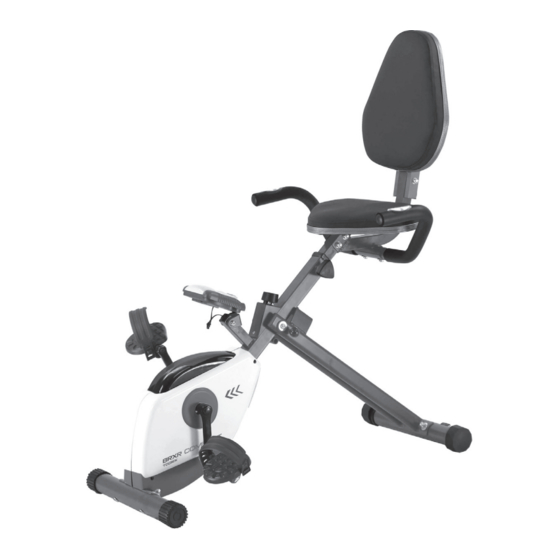

  • Page 2: Product Overview

    PRODUCT OVERVIEW Back Cushion Back Support Seat Hand Pause Adjustment Knob Handle Bar Tension Knob Meter Rear Stabilizer Right Pedal Wheel Top Cover Leveling Cap Right Cover Left Cover Left Pedal Left Crank Front Stabilizer End cap THEFOLLOWINGTOOLS ARE INCLUDED Wrench: FOR ASSEMBLY Allen Wrench (5mm) w/ Screwdriver:...

  • Page 3: Hardware Identification Chart

    HARDWARE IDENTIFICATION CHART Figure Description Carriage Bolt (M8*1.25*60mm) Carriage Bolt (M8*1.2548 mm) Bolt, Button Head (M6* 40 mm) Acorn Nut (M8) Arc Washer (M8) Washer (M8) Nut M8 Adjustment Knob Pull Pin...
  • Page 4 Place all parts from the box in a cleared area and position them on the floor in front of you. Remove all packing materials from your area and place them back into the box. Do not dispose of the packing materials until assembly is completed. Read each step carefully before beginning.

  • Page 5: Assembly Instruction

    STEP 4: Attach the Seat (B24) to the Seat Post (A6) with Nylock Nuts (M8) (D25) and Washer (M8) (D24). Insert the Seat Post (A6) into the Main Frame (A1) and secure with the Adjustment Knob (D50). NOTE: Make sure that the pin on the Adjustment Knob (D50) is inserted into one of the holes in Seat Post (A6).
  • Page 6 STEP7: Install Meter (C1) into the Meter Bracket (A14). Connecting the Hand Pulse Top Line (C23) to the back of Meter (C1), And connect the Sensor (C13) and Connection Wire( C2). NOTE: Be careful not to damage the wires when attaching the Meter(C1). STEP8: Lock and tight the Left Pedal (B27) and Right Pedal (B28) on the Left Crank (B29) and Right Crank (B30) by using the Wrench.
  • Page 7 OPERATIONAL INSTRUCITONS USING THE FITNESS METER MODE: This key lets you to select and lock on to a particular function you want. SET(IF HAVE) :To set the values of time. distance and calories when not in scan mode. RESET/CLEAR (IF HAVE): The key to reset the value to zero by pressing the key .

  • Page 8: Load Adjustment

    LOAD ADJUSTMENT To increase the load, turn the Adjustment Knob (B32) clockwise. To decrease the load, turn the Adjustment Knob (B32) counterclockwise. SEAT ADJUSTMENT Proper seat adjustment is important. Turn the Adjustment Knob (D50) to loosen, then pull the Adjustment Knob (D50) to release the pin. Slide the Seat Post (A6) until the Seat (B24) is at the proper height.
  • Page 9 STORAGE • To store the BIKE, simply keep it in a clean dry place. • To avoid damage to the electronics, remove the batteries before storing the BIKE for one year or more. • Follow the illustrated process below to fold the BIKE. Remove the Pull Pin (D18) from the Rear Frame (A2).Fold the Rear Frame (A2) close to the Main Frame (A1) and lock it in folded position with the Pull Pin (D18).

  • Page 10: Product Parts Drawing

    PRODUCT PARTS DRAWING TOCONTACTCUSTOMERSERVICE...

  • Page 11: Parts List

    PARTS LIST TOCONTACTCUSTOMERSERVICE A. Welding Parts Description Main Frame Rear Frame Front Stabilizer Seat Support Back Frame Handrail Back Support Rear Stabilizer Mangetic Bracket Shaft Meter Bracket B. Plastic Parts Description Left Chain Cover Right Chain Cover Top Cover Sensor Bracket Bushing Plastic Bushing Oval Plug (20mm*40mm)
  • Page 12 Description TOCONTACTCUSTOMERSERVICE Meter Connection Wire Left Crank Right Crank Flywheel V-Ribbed Belt (230J) V-Ribbed Belt(240J) Pulley w/ Shaft Pulley Shaft Pulley Sensor Ball Bearing (6000ZZ) Ball Bearing (6200ZZ) Ball Bearing (6003ZZ) Idler Shaft Magnet Idler Shaft Magnet Hand Pulse Hand Pulse Top Line 620L Hand Pulse Middle Line 320L Hand Pulse Button Line 620L D.
  • Page 13 Spring Washer M8 Large Washer(ø8.2*ø25*2mm) TOCONTACTCUSTOMERSERVICE Nut M10 Carriage Bolt M4X10 Nylock Nut M10 Nylock Nut M6 Bearing Housing Cover Spring Bolt, Button Head ST5.0*15 Wrench 13-15 Bolt, Button Head M8*50 Screw, Round Head ST4.0*20 Adjustment Knob Screw, Round Head Self-Tapping ST4.2*16...
  • Page 14 GARLANDO SPA Via Regione Piemonte, 32 - Zona Industriale D1 15068 - Pozzolo Formigaro (AL) - Italy www.toorx.it - info@toorx.it...
