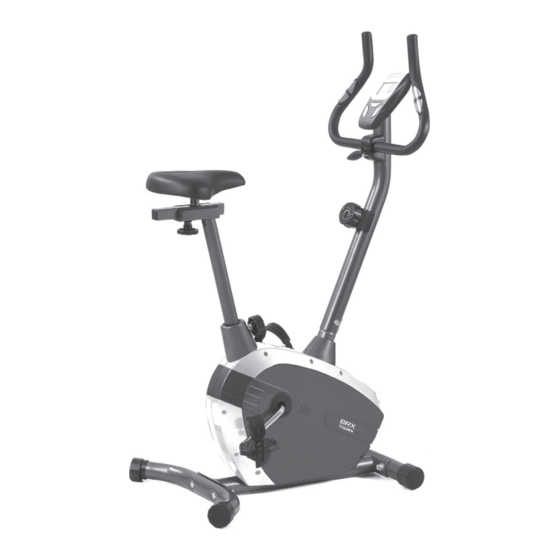

Summary of Contents for TOORX BRX55

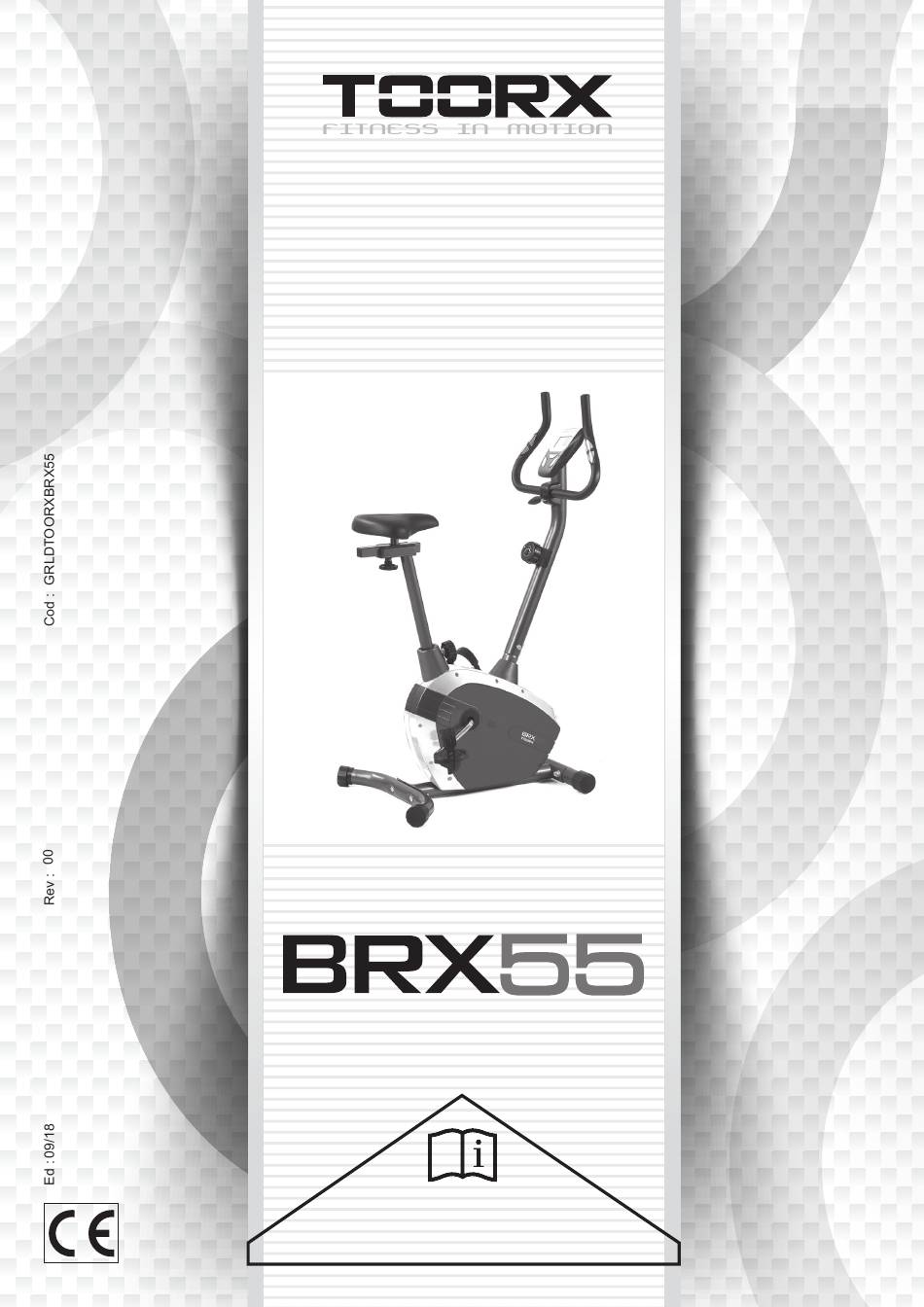

- Page 1 INSTRUCTION...
-
Page 2: Parts List
PARTS LIST Description Description Main Frame Hexagon Bolt M8×20 Cross Pan Head Tapping screw Handlebar ST4.2×25 Meter Post Tension Spring Φ20×39×δ3.2 Rear Stablizer Nylon Nut M8 Magnetic Wheel Φ180×25 Hexagon Bolt M6×20 Front Stabilizer Φ50×1.5 Pressure Plate Tension Control Knob Bearing 6000Z Arc WasherΦ5 Seat Height Adjustment Knob M16... - Page 3 TOOLS Multi Hex Tool S19-S10- S13- S17 Multi Hex Tool with Phillips Screwdriver S13-S14-S15 Allen Wrench S6...
-
Page 4: Exploded Drawing
EXPLODED DRAWING... -
Page 5: Assembly Instruction
ASSEMBLY INSTRUCTION 1. Front and Rear Stabilizers Installation Attach the Front Stabilizer (6) and Rear Stablizer（4）onto the front curve of the Main Frame (1) with four M10 x 57 Bolts (35), four Φ10 Arc Washers (36) and four M10 Cap Nuts (34). - Page 6 3. Meter Post Installation Remove four M8x15 Hexagon Bolts (24) and four Φ8 Curve Washers (37) from the tube of Main Frame (1). Remove bolts with S6 Allen Wrench provided. Insert the Meter Post(3) into the Cover for meter post(75) Connect the Sensor Wire (26) from the Main Frame (1) to the Extension Sensor Wire (59) from the Handlebar Post (3).
- Page 7 Seat Cushion, Seat Post Bellows, Seat Post Installation Remove three Washers (38) and three M8 Nylon Nuts (42) from underside of the Seat Cushion (27). Guide bolts on underside of the Seat Cushion (27) through holes on top of the Seat Post(25), attach with three removed Washers (38) and Nylon Nuts (42). Tighten nylon nuts with the Multi Hex Tool provided.
- Page 8 5. Handlebar Installation Insert the two wire of from Handlebar into the hole of Meter Post(3),and let the two wire come out from top of Meter Post Attach the Handlebar(2) onto the Meter Post(3) with T-Shape Bolt（66），Sleeve（65）and Decorative cover for Handlebar(64)
- Page 9 6. Meter Installation Remove two bolts (63) from back of Meter(10), connet the three wires from Meter（10）to the three wires from the top of meter post(3). Then secure the meter(10) to the meter post(3) with Bolts(63) Tool: Multi Hex Tool with Phillips Screwdriver...
-
Page 10: Key Functions
EXERCISE MONITOR INSTRUCTION MANUAL SPECIFICATIONS TIME--------------------------------------------------0:00~99:59MIN SPEED------------------------------------------------0.0~999.9ML/H (KM/H) DISTRANCE----------------------------------------0.00~999.9ML (KM) CALORIE--------------------------------------------0.0~999.9KCAL ODO(IF HAVE) ------------------------ 0.0~99.99ML (KM) PULSE (IF HAVE) ---------------------------------40~240BPM KEY FUNCTIONS: MODE: This key lets you to select and lock on to a particular function you want. The key to reset the value to zero by pressing the key for 4 seconds. FUNCTIONS: TIME : Press the MODE key until pointer lock in to TIME. - Page 11 GARLANDO SPA Via Regione Piemonte, 32 - Zona Industriale D1 15068 - Pozzolo Formigaro (AL) - Italy www.toorx.it - info@toorx.it...
