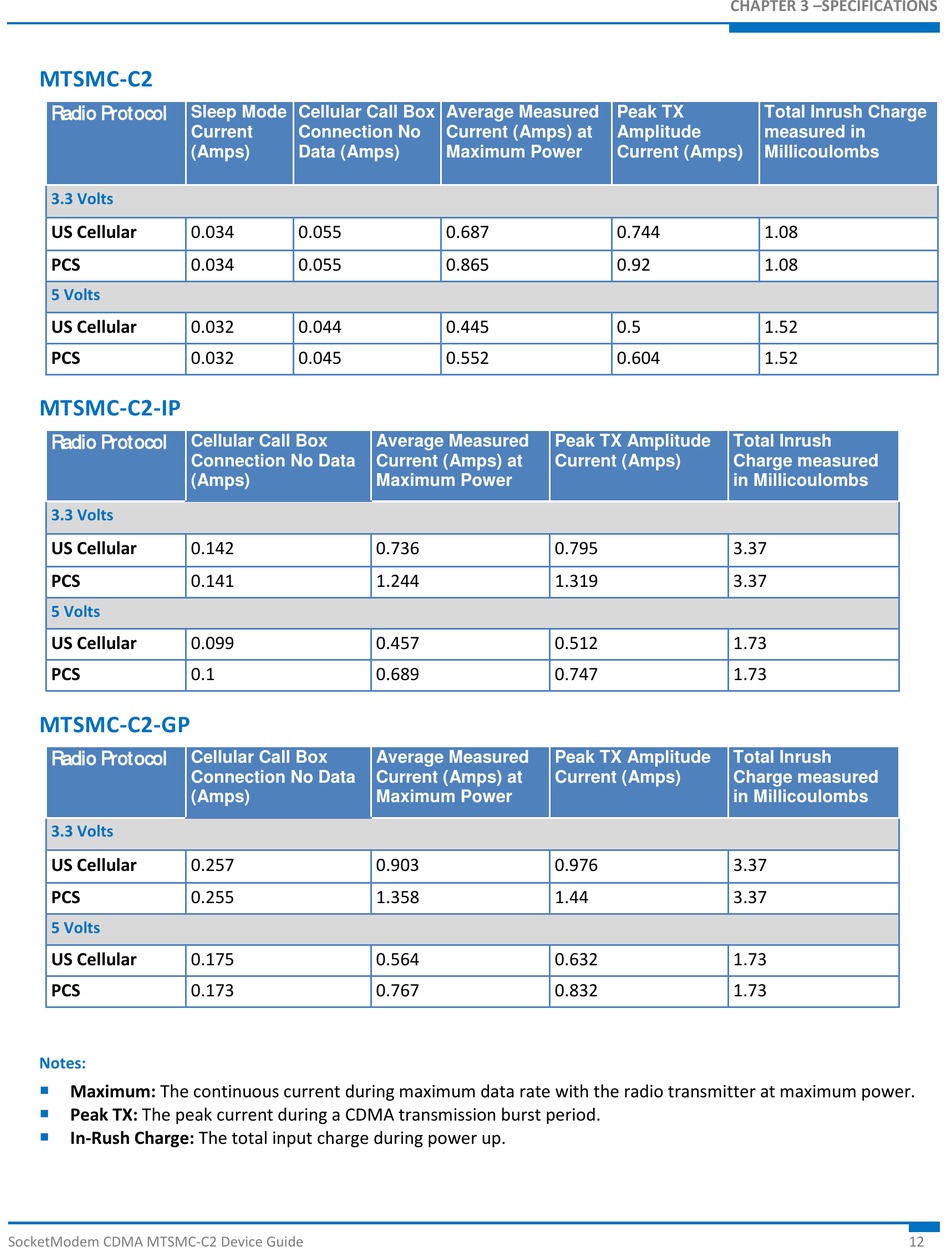

Mtsmc-C2; Mtsmc-C2-Ip; Mtsmc-C2-Gp - Multitech SocketModem Cell Device Manual

MTSMC-C2

Radio Protocol
3.3 Volts
US Cellular
PCS
5 Volts
US Cellular
PCS

MTSMC-C2-IP

Radio Protocol
3.3 Volts
US Cellular
PCS
5 Volts
US Cellular
PCS

MTSMC-C2-GP

Radio Protocol
3.3 Volts
US Cellular
PCS
5 Volts
US Cellular
PCS
Notes:
Maximum: The continuous current during maximum data rate with the radio transmitter at maximum power.

Peak TX: The peak current during a CDMA transmission burst period.

In-Rush Charge: The total input charge during power up.

SocketModem CDMA MTSMC-C2 Device Guide
Sleep Mode Cellular Call Box
Current Connection No
(Amps) Data (Amps)
0.034 0.055
0.034 0.055
0.032 0.044
0.032 0.045
Cellular Call Box
Connection No Data
(Amps)
0.142
0.141
0.099
0.1
Cellular Call Box
Connection No Data
(Amps)
0.257
0.255
0.175
0.173
Average Measured
Current (Amps) at
Maximum Power
0.687
0.865
0.445
0.552
Average Measured Peak TX Amplitude
Current (Amps) at Current (Amps)
Maximum Power
0.736 0.795
1.244 1.319
0.457 0.512
0.689 0.747
Average Measured Peak TX Amplitude
Current (Amps) at Current (Amps)
Maximum Power
0.903 0.976
1.358 1.44
0.564 0.632
0.767 0.832
CHAPTER 3 –SPECIFICATIONS
Peak TX Total Inrush Charge
Amplitude measured in
Current (Amps) Millicoulombs
0.744 1.08
0.92 1.08
0.5 1.52
0.604 1.52
Total Inrush
Charge measured
in Millicoulombs
3.37
3.37
1.73
1.73
Total Inrush
Charge measured
in Millicoulombs
3.37
3.37
1.73
1.73
12
