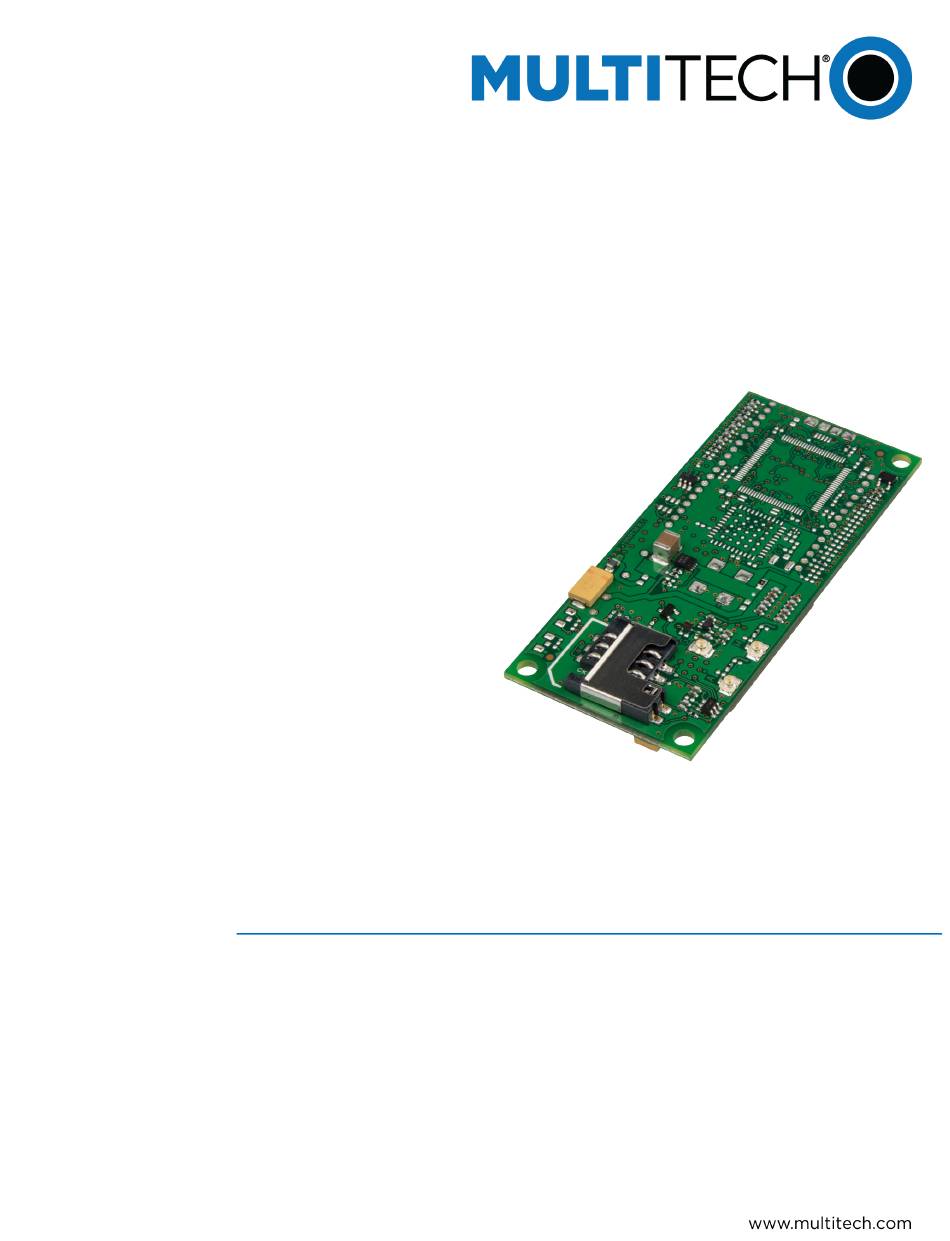

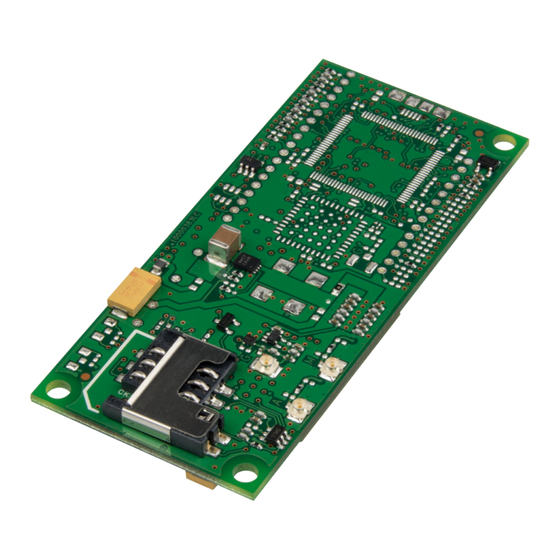

- Page 1 ® SocketModem Cell LTE MTSMC-Lxx Device Guide...
- Page 2 Legal Notices The MultiTech products are not designed, manufactured or intended for use, and should not be used, or sold or re-sold for use, in connection with applications requiring fail-safe performance or in applications where the failure of the products would reasonably be expected to result in personal injury or death, significant property damage, or serious physical or environmental damage.
-
Page 3: Table Of Contents
CONTENTS Contents Product Overview ..............................6 Product Overview................................6 Documentation ................................6 Product Build Options ..............................7 Mechanical Drawings............................... 8 MTSMC-Lxxx.................................. 8 MTSMC-Lxxx-U ................................9 Specifications................................. 10 MTSMC-LAT1 and MTSMC-LAT1-U Specifications ...................... 10 MTSMC-LVW2 and MTSMC-LVW2-U Specifications ....................11 MTSMC-LEU1 and MTSMC-LEU1-U Specifications...................... 12 Underwriters Laboratories, Inc. - Page 4 Placing GPS Antennas .............................. 22 Antenna Approvals and Safety Considerations ......................22 Diversity and Power Draw ............................23 GPS Antenna Specifications ............................23 MultiTech Ordering Information..........................23 Antenna Specifications.............................. 23 OEM Integration ................................. 23 FCC & IC Information to Consumers ......................... 23 FCC Grant Notes................................
- Page 5 CONTENTS Information on HS/TS Substances According to Chinese Standards (in Chinese) ............40 Labels ..................................41 Approvals and Certifications ............................41 Example Labels................................41 Index..................................43 ® SocketModem Cell LTE MTSMC-Lxx Device Guide...
-
Page 6: Product Overview
LTE performance. These quick-to-market communications devices allow developers to add wireless communication to products with a minimum of development time and expense. SocketModem Cell models are based on industry- standard open interfaces and use MultiTech’s Universal Socket design. Documentation The following documentation is available at multitech.com/support. -
Page 7: Product Build Options
PRODUCT OVERVIEW Product Build Options Product Description Carrier/Region MTSMC-LVW2 4G LTE embedded cellular modem with GPS/GLONASS Verizon (Serial Interface) MTSMC-LVW2-U 4G LTE embedded cellular modem with GPS/GLONASS Verizon (USB Interface) MTSMC-LEU1 4G LTE with HSPA+ fallback embedded cellular modem Europe/Australia with GPS/GLONASS (Serial Interface) MTSMC-LEU1-U 4G LTE with HSPA+ fallback embedded cellular modem... -
Page 8: Mechanical Drawings
MECHANICAL DRAWINGS Mechanical Drawings MTSMC-Lxxx ® SocketModem Cell LTE MTSMC-Lxx Device Guide... -
Page 9: Mtsmc-Lxxx-U
MECHANICAL DRAWINGS MTSMC-Lxxx-U ® SocketModem Cell LTE MTSMC-Lxx Device Guide... -
Page 10: Specifications
SPECIFICATIONS Specifications MTSMC-LAT1 and MTSMC-LAT1-U Specifications Category Description General Standards LTE 3GPP Release 9 HSPA+ 21/GPRS fallback USB Interface is CDC-ACM compliant TCP/IP Functions FTP, SMTP, SSL, TCP, UDP Frequency Bands 4G: 700 (B17)/850 (B5)/AWS 1700 (B4)/1900 (B2) 3G: 850 (B5)/1900 (B2) 2G: 850/1900 Speed Data Speed... -
Page 11: Mtsmc-Lvw2 And Mtsmc-Lvw2-U Specifications
SPECIFICATIONS Category Description Point-to-Point messaging Mobile-Terminated SMS Mobile-Originated SMS Certifications and Compliance EMC Compliance FCC Part 15 Class B Radio Compliance FCC Part 22, 24, 27 Safety Compliance UL 60950-1 2nd ED cUL 60950-1 2nd ED IEC 60950-1 2nd ED Network Compliance PTCRB Carrier... -
Page 12: Mtsmc-Leu1 And Mtsmc-Leu1-U Specifications
SPECIFICATIONS Category Description Storage Temperature -40° C to +85° C Humidity 20%-90% RH, non-condensing Power Requirements Operating Voltage 3.1 V to 3.5 V, normal is 3.3 V Input Voltage 3.3-5 VDC Point-to-Point messaging Mobile-Terminated SMS Mobile-Originated SMS Certifications and Compliance EMC Compliance FCC Part 15 Class B Radio Compliance... -
Page 13: Underwriters Laboratories, Inc. Required Global Positioning System (Gps) Statement
SPECIFICATIONS Category Description Physical Description Weight 0.4 oz. (10 g) Dimensions Refer to Mechanical Drawing for Dimensions. Connectors Antenna Connector 3 surface mount UFL connectors for cellular, Rx diversity/MIMO, and GPS 1.8V and 3V SIM holder for mini-SIM card Environment Operating Temperature -40°... -
Page 14: Powering Down Your Device
SPECIFICATIONS Powering Down Your Device CAUTION: Failing to properly power down the device before removing power may corrupt your device's file system. To properly power down your device, use the following sequence or pull 3G_ONOFF signal low: Issue the AT#SHDN command. Wait 30 seconds. -
Page 15: Electrical Characteristics Other Pins
SPECIFICATIONS Electrical Characteristics Other Pins Signal VIL Min VIL Max VIH Min VIH Max VOL Min VOL Max VOH Min VOH Max Name -RESET USB VBUS -0.3 USB DP USB DN -LED LINK 0.45 2.85 Pinout Specifications Signal Name Logic Level Voltage In/Out Description –RESET... -
Page 16: Pin Availability By Build
SPECIFICATIONS Pin Availability by Build Signal Name Serial Only USB Only –RESET USB VBUS USB DP USB DN –RTS –RXD –TXD –RI –DSR –CTS –DCD –DTR –LED LINK ® SocketModem Cell LTE MTSMC-Lxx Device Guide... -
Page 17: Power Measurements
SPECIFICATIONS Power Measurements Multi-Tech Systems, Inc. recommends that you incorporate a 10% buffer into your power source when determining product load. Note: The following notes apply to the following tables. ■ Tx Pulse: The average peak current during a GSM850 transmission burst period or HSDPA/LTE connection. -
Page 18: Mtsmc-Lvw2 Power Draw
SPECIFICATIONS MTSMC-LVW2 Power Draw Radio Protocol Sleep Mode Cellular Call Box Average Measured TX Pulse (Avg) Total Inrush Current (If Connection No Current (Amps) at Amplitude Charge Applicable) Data (Amps) Maximum Power Current (Amps) ) Measured in (Amps) for GSM850 or Millicoulombs Peak Current for (mC) -
Page 19: Mtsmc-Leu1-U Power Draw
SPECIFICATIONS MTSMC-LEU1-U Power Draw Radio Protocol Sleep Mode Cellular Call Box Average Measured TX Pulse (Avg) Total Inrush Current (If Connection No Current (Amps) at Amplitude Charge Applicable) Data (Amps) Maximum Power Current (Amps) ) Measured in (Amps) for GSM850 or Millicoulombs Peak Current for (mC) -
Page 20: Antennas
The cellular radio portion of the device is approved with the following antenna or for alternate antennas meeting the given specifications. Manufacturer: Laird Technologies Description: Dipole Blade Antenna for LTE Model Number: DBA6927C1-FSMAM MultiTech Part Number: 95218149LF MultiTech ordering information: Model Quantity ANLTE1-2HRA ANLTE1-10HRA ANLTE1-50HRA ®... -
Page 21: Wieson Antenna
Radiation Omni-directional Polarization Linear Wieson Antenna Devices were approved with the following antenna: Manufacturer: Wieson Description: LTE GY115HT467-017 Model Number: 11320Y11194A1 MultiTech Part Number: 45009890L MultiTech ordering information: Model Quantity ANLTE2-1HRA ANLTE2-10HRA ANLTE2-50HRA Antenna Specifications Category Description Frequency Range .069~0.96GHz, 1.71~2.17GHz, 2.3GHz~2.69GHz... -
Page 22: Lte Antenna Diversity
Some environments are harsher on particular bands. MultiTech products have antenna connectors at the best spacing for the product size. Placing antennas in close proximity to each other is not optimal, but you can do it if necessary. It depends on the signal strength to and from each antenna. -
Page 23: Diversity And Power Draw
■ Safety requirements depend on your final product. ■ Unless otherwise noted, antennas certified by MultiTech are not approved for outdoor use. Do not extend these antennas outside of any building. Diversity and Power Draw There are no significant power draw differences. -
Page 24: Fcc Grant Notes
ANTENNAS FCC Grant Notes The OEM should follow all the grant notes listed below. Otherwise, further testing and device approvals may be necessary. FCC Definitions Portable: (§2.1093) — A portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. -
Page 25: Safety Information
SAFETY INFORMATION Safety Information Handling Precautions To avoid damage due to the accumulation of static charge, use proper precautions when handling any cellular device. Although input protection circuitry has been incorporated into the devices to minimize the effect of static build-up, use proper precautions to avoid exposure to electronic discharge during handling and mounting the device. -
Page 26: Interference With Pacemakers And Other Medical Devices
SAFETY INFORMATION ■ Éteignez votre appareil sans fil dans les hôpitaux ou dans toutes les zones où des appareils médicaux sont susceptibles d'être utilisés. Interference with Pacemakers and Other Medical Devices Potential interference Radio frequency energy (RF) from cellular devices can interact with some electronic devices. This is electromagnetic interference (EMI). -
Page 27: User Responsibility
■ Using accessories, such as antennas, that MultiTech has not authorized or that are not compliant with MultiTech's accessory specifications may invalidate the warranty. If the device is not working properly, contact MultiTech Technical Support. -
Page 28: Regulatory Information
REGULATORY INFORMATION Regulatory Information EMC, Safety, and R&TTE Directive Compliance The CE mark is affixed to this product to confirm compliance with the following European Community Directives: Council Directive 2014/30/EU on the approximation of the laws of Member States relating to electromagnetic compatibility;... -
Page 29: Fcc Grant Information
REGULATORY INFORMATION this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: l'appareil ne doit pas produire de brouillage, et l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. - Page 30 REGULATORY INFORMATION FCC Rule Parts Frequency Range Output Watts Frequency Emission Designators (MHz) Tolerance 706.5-713.5 0.16406 1.0 PM 4M52D7W 709-711.0 0.18967 1.0 PM 8M98G7W 709-711.0 0.17458 1.0 PM 9M01D7W 826.5-846.5 0.20559 1.0 PM 4M51G7W 826.5-846.5 0.16904 1.0 PM 4M50D7W 829.0-844.0 0.19409 1.0 PM 9M00G7W...
-
Page 31: Mtsmc-Lvw2 And Mtsmc-Lvw2-U
REGULATORY INFORMATION MTSMC-LVW2 and MTSMC-LVW2-U FCC Part 15 FCC Identifier: RI7LE910SV Equipment Class: Part 15 Class Computing Device Peripheral Notes: LTE Module FCC Rule Parts: Approval: Single Modular FCC Parts 27 FCC Identifier: RI7LE910SV Equipment Class: Licensed Non-Broadcast Station Transmitter Notes: LTE Module Approval:... -
Page 32: Mtsmc-Lat1 And Mtsmc-Lat1-U
REGULATORY INFORMATION MTSMC-LAT1 and MTSMC-LAT1-U 5131A-LE910NA Certification Number/No. de Certification Type of Radio Equipment/Genre de Matériel Advanced Wireless Services Equipment/Matériel des services sans fil évolués (1710-1755 MHz and 2110-2155 MHz) Cellular Mobile GSM/ Téléphone cellulaire mobile GSM (824-849 MHZ) Cellular Mobile New Technologies/Téléphone cellulaire mobile - Nouvelles technologies (824-849 MHz) PCS Mobile/Téléphone mobile SCP (1850-1910 MHz) Mobile Broadband Service (MBS)/Matériel du service... - Page 33 REGULATORY INFORMATION Specification/Ca Issue/Édit From Emmission Minimu Maximum Power hier des Charges Frequency/D Frequency Designation/Desig e Fréquences /Á nation D’émission Power Fréquence RSS132 829 M 844 M 9M00D7W 163.31 163.31 mW RSS139 1.713 G 1.752 G 4M51G7W 173.78 173.78 mW RSS133 1.852 G 1.908 G...
-
Page 34: Mtsmc-Lvw2 And Mtsmc-Lvw2-U
REGULATORY INFORMATION Specification/Ca Issue/Édit From Emmission Minimu Maximum Power hier des Charges Frequency/D Frequency Designation/Desig e Fréquences /Á nation D’émission Power Fréquence RSS133 1.86 G 1.9 G 17M9D7W 175.79 175.79 mW RSS133 1.855 G 1.905 G 8M97D7W 183.23 183.23 mW Certification of equipment means only that the equipment has met the requirements of the above noted specification. - Page 35 REGULATORY INFORMATION Specification/Ca Issue/Édit From Emmission Minimu Maximum Power hier des Charges Frequency/D Frequency Designation/Desig e Fréquences /Á nation D’émission Power Fréquence RSS130 779.5 M 784.5 M 5M52G7W 195.43 195.43 mW RSS130 779.5 M 784.5 M 4M53D7W 207.49 207.49 mW RSS139 1.72 G 1.745 G...
-
Page 36: Environmental Notices
Substances) complements the WEEE Directive by banning the presence of specific hazardous substances in the products at the design phase. The WEEE Directive covers all MultiTech products imported into the EU as of August 13, 2005. EU-based manufacturers, distributors, retailers and importers are obliged to finance the costs of recovery from municipal collection points, reuse, and recycling of specified percentages per the WEEE requirements. - Page 37 ENVIRONMENTAL NOTICES Multi-Tech Systems, Inc. also declares it has been duly diligent in ensuring that the products supplied are compliant through a formalized process which includes collection and validation of materials declarations and selective materials analysis where appropriate. This data is controlled as part of a formal quality system and will be made available upon request.
-
Page 38: Restriction Of The Use Of Hazardous Substances (Rohs)
2011/65/EU of the European Parliament (Restriction of the use of certain Hazardous Substances in electrical and electronic equipment - RoHS). These MultiTech products do not contain the following banned chemicals ■ Lead, [Pb] < 1000 PPM ■... -
Page 39: Information On Hs/Ts Substances According To Chinese Standards
ENVIRONMENTAL NOTICES Information on HS/TS Substances According to Chinese Standards In accordance with China's Administrative Measures on the Control of Pollution Caused by Electronic Information Products (EIP) # 39, also known as China RoHS, the following information is provided regarding the names and concentration levels of Toxic Substances (TS) or Hazardous Substances (HS) which may be contained in Multi-Tech Systems Inc. -
Page 40: Information On Hs/Ts Substances According To Chinese Standards (In Chinese)
ENVIRONMENTAL NOTICES Information on HS/TS Substances According to Chinese Standards (in Chinese) 依 依 照 照 中 中 国 国 标 标 准 准 的 的 有 有 毒 毒 有 有 害 害 物 物 质 质 信 信 息 息 根据中华人民共和国信息产业部... -
Page 41: Labels
This device is an industry and/or carrier approved modem. In most cases, when integrated and used with an antenna system that was part of the MultiTech modem certification, additional approvals or certifications are not required for the device that you develop as long as the following requirements are met: ■... - Page 42 LABELS MTSMC-LEU1 Package Label MTSMC-LEU1-U Package Label MTSMC-LEU1 Device Label MTSMC-LEU1-U Device Label MTSMC-LVW2 Package Label MTSMC-LVW2-U Package Label MTSMC-LVW2 Device Label MTSMC-LVW2-U Device Label ® SocketModem Cell LTE MTSMC-Lxx Device Guide...
-
Page 43: Index
INDEX Index antenna .................21 GPS ................13 cellular devices............20 antenna..............23 diversity..............22 GPS................23 LTE................20 AT#SHDN ...............14 hazardous substances ...........38 host labeling..............23 build options ..............7 Industry Canada Class B ..............28 MTSMC-LAT1 ............32 certification MTSMC-LAT1-U............32 FCC ..............29 31 MTSMC-LVW2 ............34 Industry Canada ..........32 34 MTSMC-LVW2-U ............34 Chinese hazardous substances interférence des radiofréquences.........25... - Page 44 INDEX specifications............10 11 12 static................25 power down ..............14 sécurité power draw............17 18 19 interférences RF............25 PTCRB ................20 UL ..................13 radio frequency interference........25 user responsibility............27 RoHS................38 vehicle safety ..............26 safety RF interference ............25 vehicle..............26 shutdown ..............14 ® SocketModem Cell LTE MTSMC-Lxx Device Guide...
