Summary of Contents for Multitech SocketModem

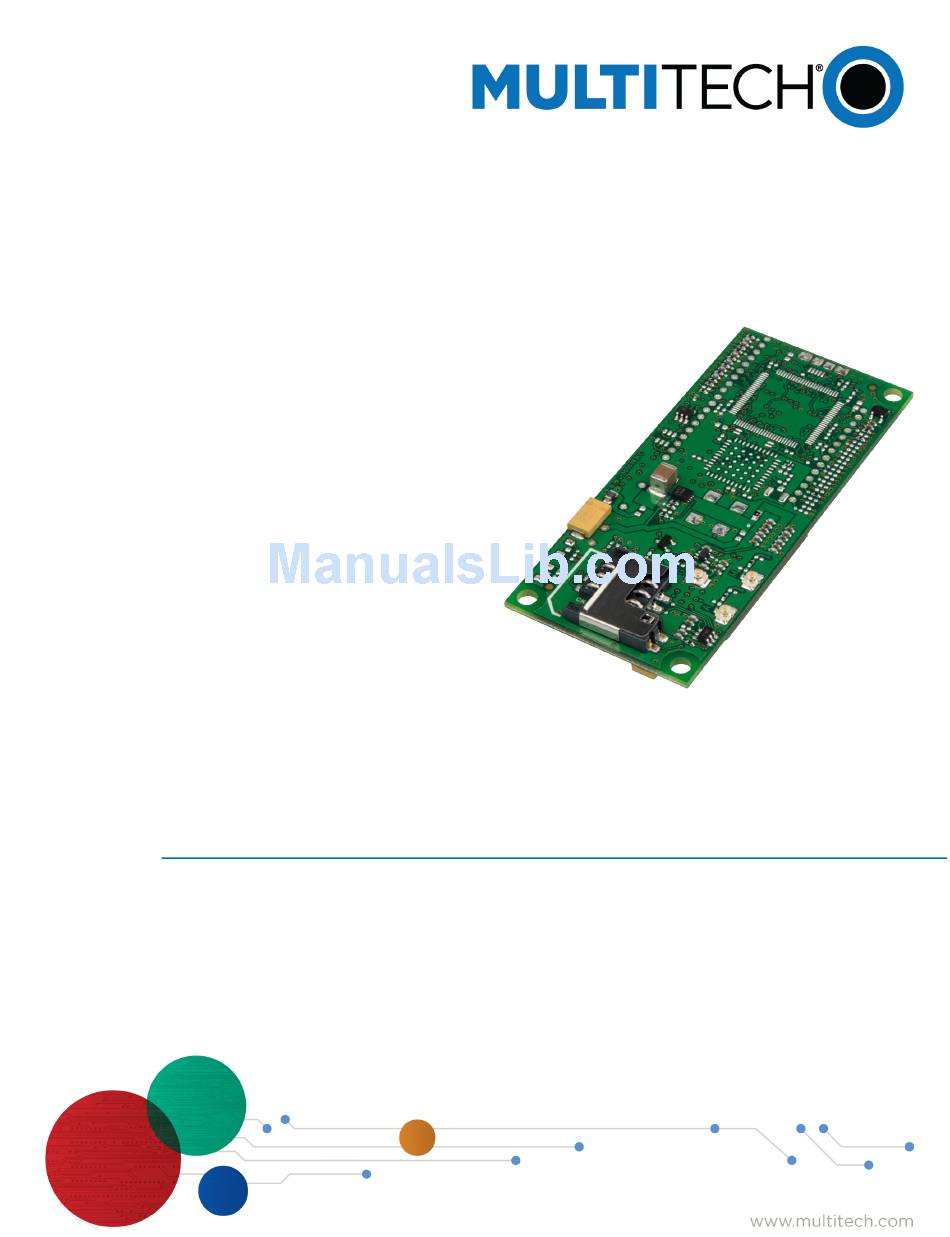

- Page 1 ® SocketModem Cell LTE MTSMC-Lxx Device Guide...
- Page 2 Legal Notices The MultiTech products are not designed, manufactured or intended for use, and should not be used, or sold or re-sold for use, in connection with applications requiring fail-safe performance or in applications where the failure of the products would reasonably be expected to result in personal injury or death, significant property damage, or serious physical or environmental damage.
-
Page 3: Table Of Contents
Chapter 4 – Antennas ............................22 Antenna System Cellular Devices..........................22 Requirements for Cellular Antennas with regard to FCC/IC Compliance ..............22 PTCRB Requirements ..............................22 Antenna Overview ..............................22 Laird Antenna ................................22 ® SocketModem Cell LTE MTSMC-Lxx Device Guide... - Page 4 Placing GPS Antennas .............................. 24 Antenna Approvals and Safety Considerations ......................24 Diversity and Power Draw ............................25 GPS Antenna Specifications ............................25 MultiTech Ordering Information..........................25 Antenna Specifications.............................. 25 OEM Integration ................................. 25 FCC & IC Information to Consumers ......................... 25 FCC Grant Notes................................
- Page 5 Information on HS/TS Substances According to Chinese Standards ................. 40 Information on HS/TS Substances According to Chinese Standards (in Chinese) ............41 Chapter 8 – Labels..............................42 Approvals and Certifications ............................42 Example Labels................................42 Index..................................44 ® SocketModem Cell LTE MTSMC-Lxx Device Guide...
-
Page 6: Chapter 1 - Product Overview
SocketModem Cell models are complete, ready-to-integrate communications devices that offer standards-based LTE performance. These quick-to-market communications devices allow developers to add wireless communication to products with a minimum of development time and expense. SocketModem Cell models are based on industry- standard open interfaces and use MultiTech’s Universal Socket design. -
Page 7: Product Build Options
4G LTE with HSPA+ fallback embedded cellular modem AT&T/North America with GPS/GLONASS (USB Interface) Developer Kits Use either of the following developer kits with MTSMC devices. MTUDK2-ST-Cell Developer Kit for SocketModem, and Dragonfly cellular devices. MTSMI-UDK Developer Kit for cellular, analog, BlueTooth, and WiFi SocketModems. Note: These units ship without network activation. -
Page 8: Chapter 2 - Mechanical Drawings
MECHANICAL DRAWINGS Chapter 2 – Mechanical Drawings MTSMC-Lxxx ® SocketModem Cell LTE MTSMC-Lxx Device Guide... -
Page 9: Mtsmc-Lxxx-U
MECHANICAL DRAWINGS MTSMC-Lxxx-U ® SocketModem Cell LTE MTSMC-Lxx Device Guide... -
Page 10: Chapter 3 - Specifications
1.8V and 3V SIM holder for mini-SIM card Environment Operating Temperature -40° C to +85° C Storage Temperature -40° C to +85° C Humidity 20%-90% RH, non-condensing Power Requirements Input Voltage 3.3 - 5 VDC ® SocketModem Cell LTE MTSMC-Lxx Device Guide... -
Page 11: Mtsmc-Lvw2 And Mtsmc-Lvw2-U Specifications
Refer to Mechanical Drawing for Dimensions. Connectors Antenna Connector 3 surface mount UFL connectors for cellular, Rx diversity/MIMO, and GPS 1.8V and 3V SIM holder for mini-SIM card Environment Operating Temperature -40° C to +85° C ® SocketModem Cell LTE MTSMC-Lxx Device Guide... -
Page 12: Mtsmc-Leu1 And Mtsmc-Leu1-U Specifications
Speed Data Speed LTE: 100 Mbps downlink/50 Mbps uplink HSPA+: 42 Mbps downlink/5.76 Mbps uplink Interface USB Interface USB 2.0 high speed compatible UART Interface 0-1.8V Physical Description Weight 0.4 oz. (10 g) ® SocketModem Cell LTE MTSMC-Lxx Device Guide... -
Page 13: Frequency Bands (Leu1)
WCDMA850 (band V) 824 - 849 869 - 894 45MHz Tx: 4132 - 4233 Rx: 4357 - 4458 WCDMA900 (band 880 - 915 925 - 960 45MHz Tx: 2712 - 2863 VIII) Rx: 2937 - 3088 ® SocketModem Cell LTE MTSMC-Lxx Device Guide... - Page 14 1710 - 1785 1805 - 1880 95MHz Tx: 19200 - 19949 Rx: 1200 - 1949 LTE2600 (band VII) 2500 - 2570 2620 - 2690 120MHz Tx: 20750 - 21449 Rx: 2750 - 3449 ® SocketModem Cell LTE MTSMC-Lxx Device Guide...
-
Page 15: Le910 Telit Transmission Output Power
If you send AT#SHDN and do not remove power AND the 3G_ONOFF line is high, the control chip on the device turns the radio back on after 60 seconds. UART DC Electrical Characteristics Units: Volts Applies to the following pins: ® SocketModem Cell LTE MTSMC-Lxx Device Guide... -
Page 16: Absolute Maximum Rating
Electrical Characteristics Other Pins Signal VIL Min VIL Max VIH Min VIH Max VOL Min VOL Max VOH Min VOH Max Name -RESET USB VBUS -0.3 USB DP USB DN -LED LINK 0.45 2.85 ® SocketModem Cell LTE MTSMC-Lxx Device Guide... -
Page 17: Pinout Specifications
Ground A hyphen (-) indicates a range of acceptable logic levels. Pin Availability by Build Signal Name Serial Only USB Only –RESET USB VBUS USB DP USB DN –RTS –RXD –TXD –RI –DSR ® SocketModem Cell LTE MTSMC-Lxx Device Guide... - Page 18 SPECIFICATIONS Signal Name Serial Only USB Only –CTS –DCD –DTR –LED LINK ® SocketModem Cell LTE MTSMC-Lxx Device Guide...
-
Page 19: Power Measurements
(No Data) Max Power (Amps) for GSM850 or in Millicoulomb (Amps) Peak Current for (mC) HSDPA/LTE ) 3.3 Volts GPRS 0.056 0.750 3.48 2.65 0.048 0.909 5 Volts GPRS 0.032 0.293 3.64 0.029 0.560 ® SocketModem Cell LTE MTSMC-Lxx Device Guide... -
Page 20: Mtsmc-Lvw2 Power Draw
GSM850 or Millicoulombs Peak Current for (mC) HSDPA/LTE 3.3 Volts EGSM 900Mhz 0.012 0.031 0.549 2.42 1.13 0.010 0.059 0.990 5 Volts EGSM 900Mhz 0.006 0.018 0.236 1.34 1.09 0.004 0.049 0.610 ® SocketModem Cell LTE MTSMC-Lxx Device Guide... -
Page 21: Mtsmc-Leu1-U Power Draw
1.50 1.42 0.043 0.610 Mounting Hardware The board has three mounting holes at corners. Use #4 or M3 hardware for mounting the SocketModem to the board. Refer to the Mechanical Drawings for more information. Recommended Parts Manufacturer Part Part Number PEM (Penn Engineering &... -
Page 22: Chapter 4 - Antennas
The cellular radio portion of the device is approved with the following antenna or for alternate antennas meeting the given specifications. Manufacturer: Laird Technologies Description: Dipole Blade Antenna for LTE Model Number: DBA6927C1-FSMAM MultiTech Part Number: 95218149LF MultiTech ordering information: Model Quantity ANLTE1-2HRA ANLTE1-10HRA ANLTE1-50HRA ®... -
Page 23: Wieson Antenna
Radiation Omni-directional Polarization Linear Wieson Antenna Devices were approved with the following antenna: Manufacturer: Wieson Description: LTE GY115HT467-017 Model Number: 11320Y11194A1 MultiTech Part Number: 45009890L MultiTech ordering information: Model Quantity ANLTE2-1HRA ANLTE2-10HRA ANLTE2-50HRA Antenna Specifications Category Description Frequency Range .069~0.96GHz, 1.71~2.17GHz, 2.3GHz~2.69GHz... -
Page 24: Lte Antenna Diversity
Some environments are harsher on particular bands. MultiTech products have antenna connectors at the best spacing for the product size. Placing antennas in close proximity to each other is not optimal, but you can do it if necessary. It depends on the signal strength to and from each antenna. -
Page 25: Diversity And Power Draw
All antennas need to have a minimum flammability rating. Safety requirements depend on your final product. Unless otherwise noted, antennas certified by MultiTech are not approved for outdoor use. Do not extend these antennas outside of any building. Diversity and Power Draw There are no significant power draw differences. -
Page 26: Fcc Grant Notes
This device contains equipment certified under IC ID: {Add the IC ID of the specific device} For additional labeling requirements, see the product's Labeling Requirements. For the FCC and IC IDs, see specific certificate information in the Regulatory Statement chapter. ® SocketModem Cell LTE MTSMC-Lxx Device Guide... -
Page 27: Chapter 5 - Safety Information
équipements radio dans les dépôts de carburant, dans les usines de produits chimiques, ou dans les zones où des dynamitages sont en cours. Suivez les restrictions relatives à chaque type d'environnement où vous utiliserez l'appareil. Ne placez pas l'antenne en extérieur. ® SocketModem Cell LTE MTSMC-Lxx Device Guide... -
Page 28: Interference With Pacemakers And Other Medical Devices
To avoid such problems, use qualified personnel to install the device. The installer should verify the vehicle electronics are protected from interference. Using an alert device to operate a vehicle’s lights or horn is not permitted on public roads. ® SocketModem Cell LTE MTSMC-Lxx Device Guide... -
Page 29: Device Maintenance
Do not place the device alongside computer discs, credit or travel cards, or other magnetic media. The information contained on discs or cards may be affected by the device. Using accessories, such as antennas, that MultiTech has not authorized or that are not compliant with MultiTech's accessory specifications may invalidate the warranty. -
Page 30: Chapter 6 - Regulatory Information
Council Directive 2014/53/EU on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity. MultiTech declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The declaration of conformity may be requested at https://support.multitech.com. -
Page 31: Fcc Grant Information
1.0 PM 4M17G9W 1852.4-1907.6 0.18155 1.0 PM 4M17G9W 706.5-713.5 0.18408 1.0 PM 4M52G7W 706.5-713.5 0.16406 1.0 PM 4M52D7W 709-711.0 0.18967 1.0 PM 8M98G7W 709-711.0 0.17458 1.0 PM 9M01D7W 826.5-846.5 0.20559 1.0 PM 4M51G7W ® SocketModem Cell LTE MTSMC-Lxx Device Guide... - Page 32 FCC multi0-transmitter product procedures. Installers and end-users must be provided with operating conditions for satisfying RF exposure compliance. Maximum permitted antenna gain/cable loss: 700 MHz: 8.74 dBi, 850MHz; 6.93 dBi, 1700MHz: 5.0 dBi, 1900Mhz: 2.51 dBi. ® SocketModem Cell LTE MTSMC-Lxx Device Guide...
-
Page 33: Mtsmc-Lvw2 And Mtsmc-Lvw2-U
FCC multi-transmitter product procedures. Installers and end-users must be provided with operating conditions for satisfying RF exposure compliance. Maximum permitted antenna gain/cable loss: LTE Band 4: 5.0 dBi, LTE Band 13: 9.16 dBi. Industry Canada Certification ® SocketModem Cell LTE MTSMC-Lxx Device Guide... -
Page 34: Mtsmc-Lat1 And Mtsmc-Lat1-U
846.6 M 4M16G9W 217.27 217.27 mW RSS132 826.5 M 846.5 M 4M50D7W 169.04 169.04 mW RSS133 1.85 G 1.91 G 246KG7W 234.39 234.39 mW RSS133 1.852 G 1.908 G 4M17G9W 181.55 181.55 mW ® SocketModem Cell LTE MTSMC-Lxx Device Guide... - Page 35 1.905 G 9M01G7W 181.55 181.55 mW RSS139 1.715 G 1.75 G 9M01G7W 180.3 180.3 mW RSS132 824.2 M 848.2 M 248KGXW 1.641 W 1.641 W RSS130 706.5 M 713.5 M 4M52G7W 184.08 184.08 mW ® SocketModem Cell LTE MTSMC-Lxx Device Guide...
-
Page 36: Mtsmc-Lvw2 And Mtsmc-Lvw2-U
Maximum Power hier des Charges Frequency/D Frequency Designation/Desig e Fréquences /Á nation D’émission Power Fréquence BETS1 782 M 782 M 8M95D7W 178.24 178.24 mW RSS139 1.72 G 1.745 G 17M9G7W 219.28 219.28 mW ® SocketModem Cell LTE MTSMC-Lxx Device Guide... - Page 37 Canada. Le matériel à l’égard duquel le présent certificat est délivré ne doit pas être fabriqué, importé, distribué, loué, mis en vente ou vendu à moins d’être conforme aux procédures et aux spécifications techniques applicable publiées par Industrie Canada. ® SocketModem Cell LTE MTSMC-Lxx Device Guide...
-
Page 38: Chapter 7 - Environmental Notices
Substances) complements the WEEE Directive by banning the presence of specific hazardous substances in the products at the design phase. The WEEE Directive covers all MultiTech products imported into the EU as of August 13, 2005. EU-based manufacturers, distributors, retailers and importers are obliged to finance the costs of recovery from municipal collection points, reuse, and recycling of specified percentages per the WEEE requirements. -
Page 39: Restriction Of The Use Of Hazardous Substances (Rohs)
2011/65/EU of the European Parliament (Restriction of the use of certain Hazardous Substances in electrical and electronic equipment - RoHS). These MultiTech products do not contain the following banned chemicals Lead, [Pb] < 1000 PPM Mercury, [Hg] <... -
Page 40: Information On Hs/Ts Substances According To Chinese Standards
X Represents that the concentration of such hazardous/toxic substance in all the units of homogeneous material of such component is higher than the SJ/Txxx-2006 Requirements for Concentration Limits. O Represents that no such substances are used or that the concentration is within the aforementioned limits. ® SocketModem Cell LTE MTSMC-Lxx Device Guide... -
Page 41: Information On Hs/Ts Substances According To Chinese Standards (In Chinese)
多 多 溴 溴 二 二 苯 苯 醚 醚 (PBB) (PBDE) 印刷电路板 电阻器 电容器 铁氧体磁环 继电器/光学部件 二极管/晶体管 振荡器和晶振 调节器 电压传感器 变压器 扬声器 连接器 LEDs 螺丝、螺母以及其它五金件 交流-直流电源 软件/文档 CD 手册和纸页 底盘 X 表示所有使用类似材料的设备中有害/有毒物质的含量水平高于 SJ/Txxx-2006 限量要求。 O 表示不含该物质或者该物质的含量水平在上述限量要求之内。 ® SocketModem Cell LTE MTSMC-Lxx Device Guide... -
Page 42: Chapter 8 - Labels
This device is an industry and/or carrier approved modem. In most cases, when integrated and used with an antenna system that was part of the MultiTech modem certification, additional approvals or certifications are not required for the device that you develop as long as the following requirements are met: PTCRB Requirements: The antenna system cannot be altered. - Page 43 LABELS MTSMC-LEU1 Package Label MTSMC-LEU1-U Package Label MTSMC-LEU1 Device Label MTSMC-LEU1-U Device Label MTSMC-LVW2 Package Label MTSMC-LVW2-U Package Label MTSMC-LVW2 Device Label MTSMC-LVW2-U Device Label ® SocketModem Cell LTE MTSMC-Lxx Device Guide...
-
Page 44: Index
............21 MTSMC-LAT1............19 31 34 grant notes...............25 MTSMC-LAT1-U...........19 31 34 FCC certification MTSMC-LEU1 ..............20 MTSMC-LAT1 ............31 MTSMC-LEU1-U.............21 MTSMC-LAT1-U............31 MTSMC-LVW2 .............20 33 36 MTSMC-LVW2............33 MTSMC-LVW2-U ..........20 33 36 MTSMC-LVW2-U ............33 FCC Notice Class B ..............30 ® SocketModem Cell LTE MTSMC-Lxx Device Guide... - Page 45 11 12 static................27 power down ..............15 sécurité power draw............19 20 21 interférences RF............27 PTCRB ................22 UL ..................15 radio frequency interference........27 user responsibility............29 RoHS ................39 vehicle safety ..............28 safety RF interference ............27 vehicle..............28 shutdown ..............15 ® SocketModem Cell LTE MTSMC-Lxx Device Guide...
