Summary of Contents for Multitech SocketModem Series

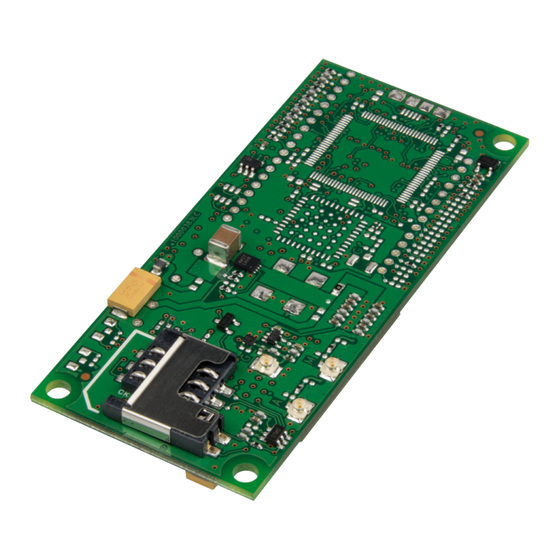

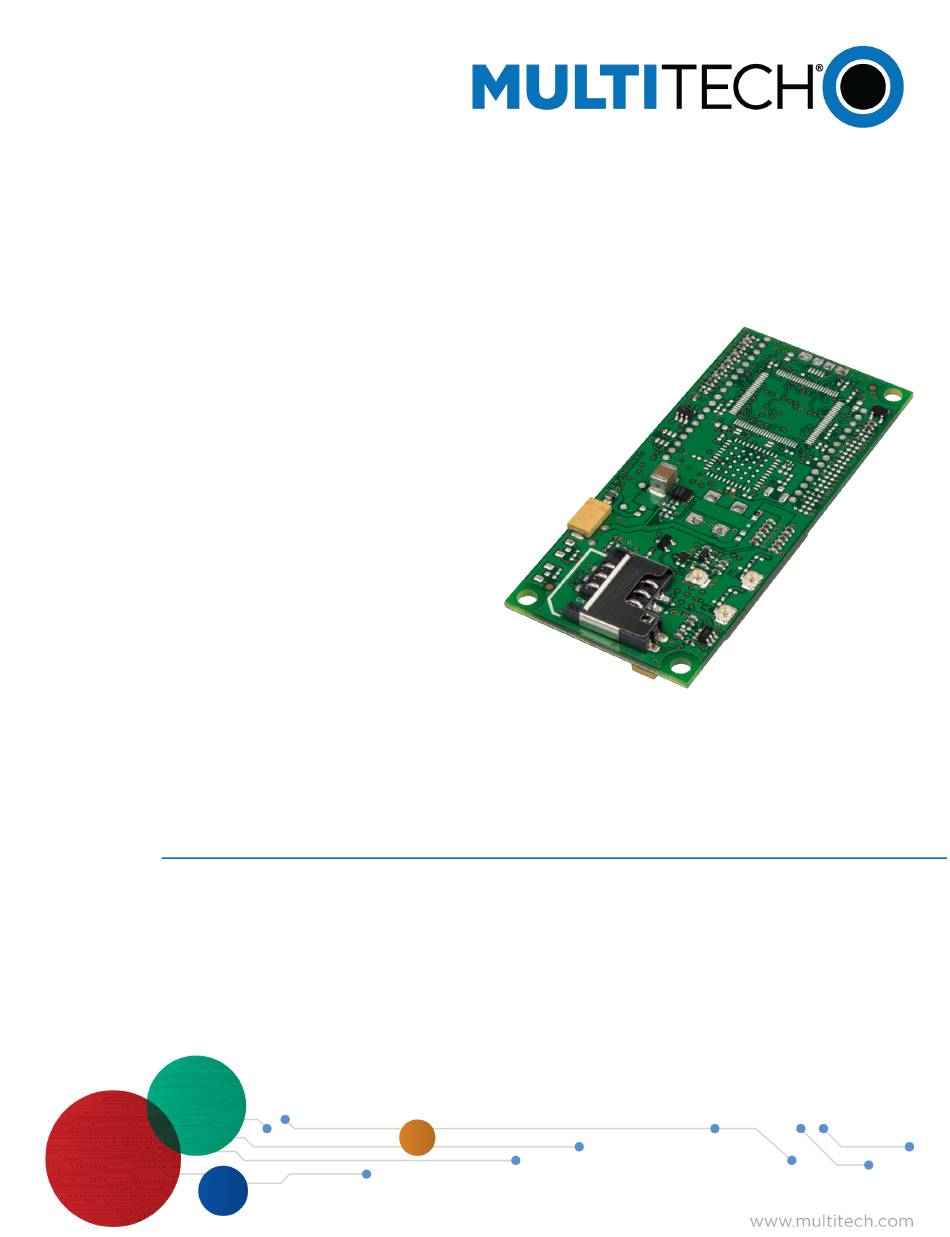

- Page 1 ® SocketModem Cell MTSMC-LSP3 Device Guide...
- Page 2 Legal Notices The MultiTech products are not designed, manufactured or intended for use, and should not be used, or sold or re-sold for use, in connection with applications requiring fail-safe performance or in applications where the failure of the products would reasonably be expected to result in personal injury or death, significant property damage, or serious physical or environmental damage.
-
Page 3: Table Of Contents
CONTENTS Contents Chapter 1 – Product Overview ..........................6 Product Overview................................6 Documentation ................................6 Product Build Options ..............................7 Chapter 2 – Mechanical Drawings..........................8 MTSMC-LSP3 ................................. 8 MTSMC-LSP3-U ................................9 Chapter 3 – Specifications ............................10 MTSMC-LSP3 and MTSMC-LSP3-U Specifications....................... 10 Powering Down Your Device ............................ - Page 4 CONTENTS Sécurité relative aux appareils à radiofréquence (RF)....................19 Interference with Pacemakers and Other Medical Devices ..................20 Potential interference ............................... 20 Precautions for pacemaker wearers ........................20 Vehicle Safety................................20 Device Maintenance ..............................20 User Responsibility..............................21 Chapter 6 – Regulatory Information........................22 47 CFR Part 15 Regulation Class B Devices .........................
- Page 5 CONTENTS Index..................................38 ® SocketModem Cell MTSMC-LSP3 Device Guide...
-
Page 6: Chapter 1 - Product Overview
LTE performance. These quick-to-market communications devices allow developers to add wireless communication to products with a minimum of development time and expense. SocketModem Cell models are based on industry- standard open interfaces and use MultiTech’s Universal Socket design. Documentation The following documentation is available at multitech.com/support. -
Page 7: Product Build Options
PRODUCT OVERVIEW Product Build Options Product Description Carrier/Region MTSMC-LSP3 Embedded LTE Cat 1 serial modem with GNSS Sprint MTSMC-LSP3-U Embedded LTE Cat 1 USB modem with GNSS Sprint Developer Kits MTUDK2-ST-Cell Developer Kit for SocketModem, and Dragonfly cellular devices. Note: These units ship without network activation. -
Page 8: Chapter 2 - Mechanical Drawings
MECHANICAL DRAWINGS Chapter 2 – Mechanical Drawings MTSMC-LSP3 ® SocketModem Cell MTSMC-LSP3 Device Guide... -
Page 9: Mtsmc-Lsp3-U
MECHANICAL DRAWINGS MTSMC-LSP3-U ® SocketModem Cell MTSMC-LSP3 Device Guide... -
Page 10: Chapter 3 - Specifications
SPECIFICATIONS Chapter 3 – Specifications MTSMC-LSP3 and MTSMC-LSP3-U Specifications Category Description General Standards LTE FDD Cat 1, 3GPP release 10 compliant USB Interface is CDC-ACM compliant TCP/IP Functions FTP, TCP, UDP, SMTP stack, IPv4/IPv6 stack Frequency Bands 4G: 1900 (B2/B25) / AWS 1700 (B4) / 850 (B5/B26) / B12 (700) Speed Data Speed LTE: 10 Mbps downlink/ 5 Mbps uplink... -
Page 11: Powering Down Your Device
SPECIFICATIONS Category Description Certifications and Compliance EMC and Radio FCC Part 15 Class B Compliance FCC Part 22 FCC Part 24 FCC Part 27 Safety Compliance UL 60950-1 2nd ED Carrier Sprint Powering Down Your Device CAUTION: Failing to properly power down the device before removing power may corrupt your device's file system. -
Page 12: Absolute Maximum Rating
SPECIFICATIONS Parameter Minimum Maximum 5 Volt Powered Input Low Level Input High Level Output Low Level 0.55 Output High Level Absolute Maximum Rating All models can run with an input voltage of either 3.3V or 5V. The maximum voltage on any signal pin equals the input voltage. -
Page 13: Pin Availability By Build
SPECIFICATIONS Signal Name Logic Level Voltage In/Out Description –DSR Data set ready (active low) –CTS Clear to send (active low) –DCD Data carrier detect (active low) –DTR Data terminal ready (active low) Ground –LED LINK Link status (active low, can sink up to 150mA) DC input power Ground... -
Page 14: Power Measurements
SPECIFICATIONS Power Measurements Multi-Tech Systems, Inc. recommends that you incorporate a 10% buffer into your power source when determining product load. Note: The following notes apply to the following tables. Tx Pulse: The average peak current during a GSM850 transmission burst period or HSDPA/LTE connection. -
Page 15: Mtsmc-Lsp3-U Power Draw
SPECIFICATIONS MTSMC-LSP3-U Power Draw Radio Protocol Live Cellular Average Measured TX Pulse (Avg) Total Inrush Charge Connection Connection Current at Amplitude Current for Measured in with SIM Idle, No Data Maximum Power GSM850 or Peak Millicoulombs Installed, Current for HSDPA/LTE No Data 3.3 Volts 44 mA... -
Page 16: Chapter 4 - Antennas
The antenna must be the same type, with similar performance and in- and out-of-band radiation patterns as the listed antenna. The antenna used must stay below the FCC/IC maximum gain. For our bundles, MultiTech may change antennas over time. The listed antenna(s) is used as a reference or was shipping when this document was last updated. -
Page 17: Selecting Antennas
All antennas need to have a minimum flammability rating. Safety requirements depend on your final product. Unless otherwise noted, antennas certified by MultiTech are not approved for outdoor use. Do not extend these antennas outside of any building. Diversity and Power Draw There are no significant power draw differences. -
Page 18: Host Labeling
ANTENNAS Mobile: (§2.1091) — A mobile device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter’s radiating structure(s) and the body of the user or nearby persons. -
Page 19: Chapter 5 - Safety Information
SAFETY INFORMATION Chapter 5 – Safety Information Handling Precautions To avoid damage due to the accumulation of static charge, use proper precautions when handling any cellular device. Although input protection circuitry has been incorporated into the devices to minimize the effect of static build-up, use proper precautions to avoid exposure to electronic discharge during handling and mounting the device. -
Page 20: Interference With Pacemakers And Other Medical Devices
SAFETY INFORMATION Éteignez votre appareil sans fil dans les hôpitaux ou dans toutes les zones où des appareils médicaux sont susceptibles d'être utilisés. Interference with Pacemakers and Other Medical Devices Potential interference Radio frequency energy (RF) from cellular devices can interact with some electronic devices. This is electromagnetic interference (EMI). -
Page 21: User Responsibility
Do not place the device alongside computer discs, credit or travel cards, or other magnetic media. The information contained on discs or cards may be affected by the device. Using accessories, such as antennas, that MultiTech has not authorized or that are not compliant with MultiTech's accessory specifications may invalidate the warranty. -
Page 22: Chapter 6 - Regulatory Information
REGULATORY INFORMATION Chapter 6 – Regulatory Information 47 CFR Part 15 Regulation Class B Devices This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 23: Fcc Grant Information
REGULATORY INFORMATION FCC Grant Information FCC Part 15 FCC Identifier: RI7LE910C1NS Equipment Class: PCS Licensed Transmitter Notes: Wireless Module Approval: Single Modular FCC Rule Parts Frequency Range Output Watts Frequency Emission Designators (MHz) Tolerance 1850.7 -1909.3 0.271 2.5 PM 1M08G 1850.7 -1909.3 0.211 2.5 PM... - Page 24 REGULATORY INFORMATION FCC Rule Parts Frequency Range Output Watts Frequency Emission Designators (MHz) Tolerance 825.5 - 847.5 0.218 2.5 PM 2M69G 825.5 - 847.5 0.168 2.5 PM 2M69W 826.5 - 846.5 0.217 2.5 PM 4M49G 826.5 - 846.5 0.167 2.5 PM 4M49W 829.0 - 844.0 0.224...
-
Page 25: Chapter 7 - Environmental Notices
Substances) complements the WEEE Directive by banning the presence of specific hazardous substances in the products at the design phase. The WEEE Directive covers all MultiTech products imported into the EU as of August 13, 2005. EU-based manufacturers, distributors, retailers and importers are obliged to finance the costs of recovery from municipal collection points, reuse, and recycling of specified percentages per the WEEE requirements. - Page 26 2015/863 of the European Parliament (Restriction of the use of certain Hazardous Substances in electrical and electronic equipment - RoHS). These MultiTech products do not contain the following banned chemicals Lead, [Pb] < 1000 PPM Mercury, [Hg] <...
-
Page 27: Chapter 8 - Sprint Activation And Oma-Dm Commands (Lsp3)
All applications interacting with Sprint approved MultiTech devices must be written in a manner where they do not interfere/interrupt the Sprint Hands-Free Activation (HFA) process or OMA-DM processes. If the MultiTech device will be co-located with any other transmitters you will be required to submit your device to an FCC approved lab for additional testing. -
Page 28: Chapter 9 - Labels
This device is an industry and/or carrier approved modem. In most cases, when integrated and used with an antenna system that was part of the MultiTech modem certification, additional approvals or certifications are not required for the device that you develop as long as the following requirements are met: PTCRB Requirements: The antenna system cannot be altered. - Page 29 LABELS MTSMC-LSP3 Device Label MTSMC-LSP3-U Device Label ® SocketModem Cell MTSMC-LSP3 Device Guide...
-
Page 30: Chapter 10 - Using Connection Manager
Click Connection Manager. Open or unzip the Connection Manager file and run the installer (.msi file). In the MultiTech Connection Manager Setup Wizard, read the end-user license agreement and check I accept the terms in the License Agreement. Click Next to have the installer automatically disable the native WWAN AutoConfig service in Windows. -
Page 31: Setting Up A Serial Device In Windows Device Manager
To specify a folder for Connection Manager, use the default folder or click Change to browse to the folder you want to use. Click Install. A separate wizard opens for installing Telit drivers. Some MultiTech devices use embedded modules from Telit Wireless Solutions to provide cellular connectivity; these devices require Telit drivers. Select Complete setup type. - Page 32 USING CONNECTION MANAGER In the Add Hardware Wizard: Click Next. Select Install the hardware that I manually select from a list, then click Next. Select Modems, then click Next. Check Don't detect my modem; I will select it from a list, then click Next. Select Standard Modem Types, then select Standard 33600 bps Modem on the right.
-
Page 33: Connecting A Device
USING CONNECTION MANAGER Connecting a Device Before You Begin Make sure that your device is connected to the computer where Connection Manager is installed. Set up the device in Device Manager. Refer to Setting Up a Serial Device in Windows Device Manager. -
Page 34: Uninstalling Connection Manager
The steps above describe how to uninstall Connection Manager using Control Panel. You can also uninstall the application by using the installer file (.msi). Double-click the file, in the MultiTech Connection Manager Setup Wizard, click Next, and then select Remove on the next two pages. -
Page 35: Main Tab
USING CONNECTION MANAGER Connection Details Terminal Charts Main tab The Main tab displays the following: Status of device connection: Searching, Connecting, Connected, Disconnecting, or Disconnected The action button, which changes according to the current device connection status: Detect, Connect, or Disconnect Signal strength bars and percentage indicator (only when connection to the carrier's network is established) Note:... -
Page 36: Settings Tab
USING CONNECTION MANAGER Settings tab Use the Settings tab to specify the type of device: USB Modem or Serial Modem. If USB Modem is selected, the tab displays USB settings. These settings cannot be edited. If Serial Modem is selected, the tab displays the serial settings that match the serial-port settings for the device. -
Page 37: Multiconnect Cell Usb Modem Is Not Detected
USING CONNECTION MANAGER Try the following steps: Click the Settings tab and make sure that the appropriate modem type is selected: USB or Serial. If you are connecting a serial device, make sure that all serial modem settings correspond to the serial modem and serial port configuration. - Page 38 INDEX Index activation...............30 antenna grant notes...............17 cellular devices............16 FCC certification ............23 diversity..............16 FCC Notice LTE................16 Class B ..............22 AT#SHDN ...............11 hazardous substances ...........25 build options ..............7 host labeling..............17 certification interférence des radiofréquences.........19 FCC ................23 Class B ................22 Connection Manager Charts tab..............34 KDB 447498 Section 8 ..........17 connecting device to carrier's network ....33 Connection tab............34...
- Page 39 INDEX radio frequency interference........19 troubleshooting RoHS................25 Connection Manager ..........36 safety user responsibility............21 RF interference ............19 vehicle..............20 shutdown ..............11 specifications..............10 vehicle safety ..............20 Sprint................27 static................19 sécurité interférences RF............19 ® SocketModem Cell MTSMC-LSP3 Device Guide...
