VSNMicro 600 Quick Start Guide

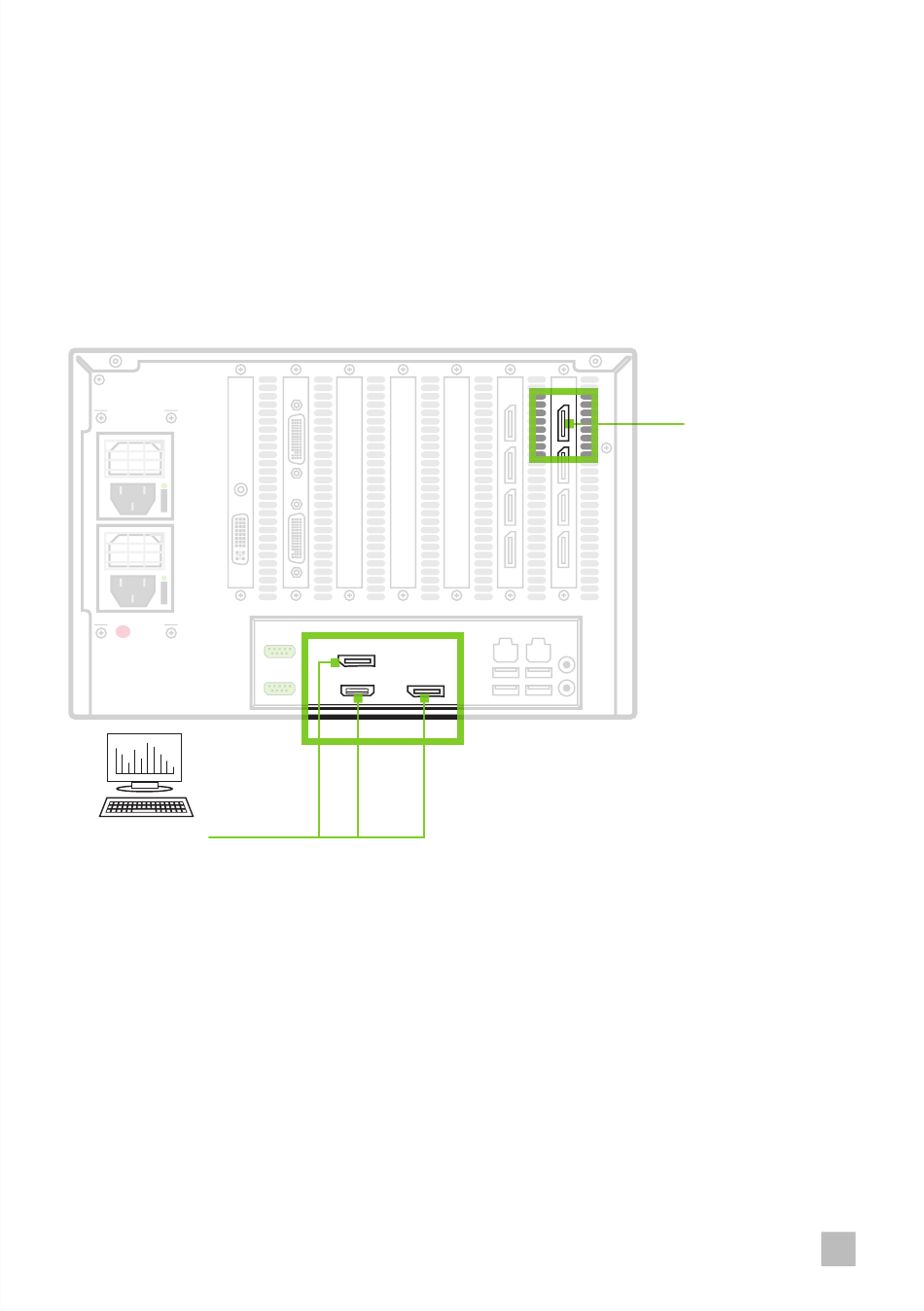

STEP 4 CONNECTING A CONTROL SCREEN
Your VSNMicro 600 is factory configured to use a control screen connected to the
system internal graphics device. Connect your control screen to one of the three
connectors on the motherboard panel on the rear of the VSNMicro 600. A control
screen is initially required to set up the system including the operating system
(Windows® 10).
Display Output 1
Control Screen
If a control screen is unavailable, connect a single video wall display into the
Display Output 1 connector on the rear of the VSNMicro 600.
5
