STEP 5 POWERING UP THE SYSTEM

If you have an ATX powered system, go straight to diagram 2 (Page 7).

For systems with an RPSU:

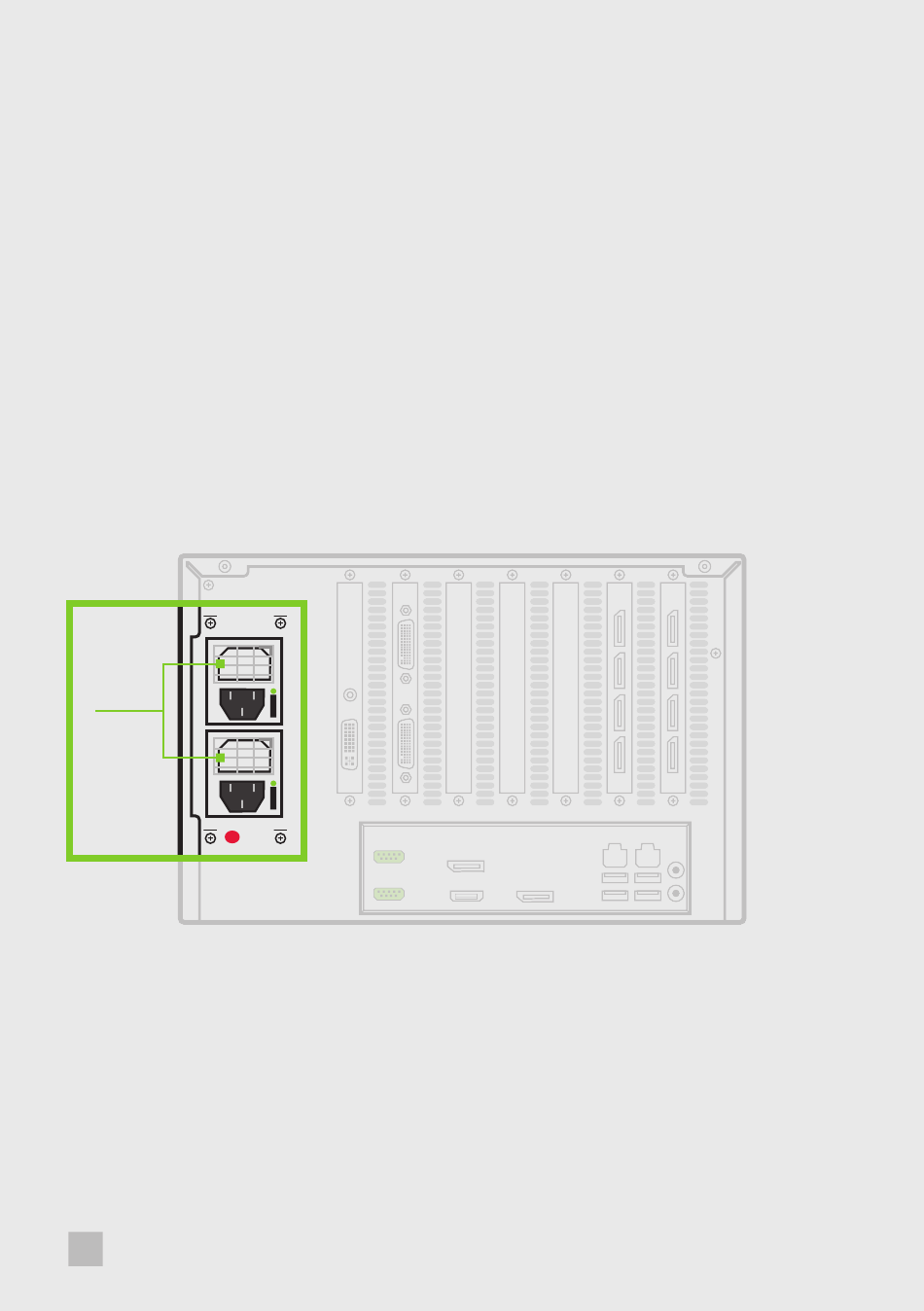

During transit, the Power Supply Modules are removed therefore you are

required to fit them prior to using your VSNMicro 600. To fit the Power Supply

Modules, remove all the packaging and carefully slide them into the power

supply unit on the rear of the system with the protective grill uppermost

(1). You will feel and hear a firm click when they are in place. For detailed

instructions on how to fit the Power Supply Modules see the PDF User Guide

which can be found on the Documentation Media.

Never use force when inserting the Power Supply Modules as this can cause

damage not covered under the Datapath warranty.

Ensure Power Supply Modules are correctly fitted.
