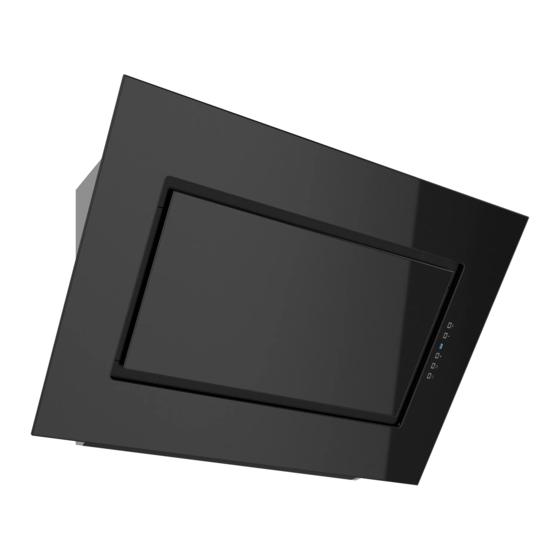

- Page 1 Futuro Futuro Futuro Futuro RANGE HOOD INSTALLATION MANUAL QUEST BLACK / QUEST WHITE 36” & 48” VERSIONS 18” 6” www.FuturoFuturo.com...
- Page 2 QUEST - BASIC INSTALLATION Step 2: Make sure the hood is level, as well as plumb against the wall. Adjust the position by turning the adjustable screws built into the mounting hooks. Step 1: Electrical Outlet: Recommended distance from cooktop to range hood: 16” - 18”. The location of the electrical outlet (US standard 110V, 3-pin) Mounting bracket is 20.4”...
- Page 3 QUEST - REAR EXHAUST The Quest range hood is equipped with a reversible Step 1: disconnect 1 plug (on bottom of blower), then blower mount that allows the user a choice of vertical or remove 4 screws holding the blower. horizontal ducting (rear exhaust).
