Summary of Contents for Futuro Futuro IS63HORIZON-BAR

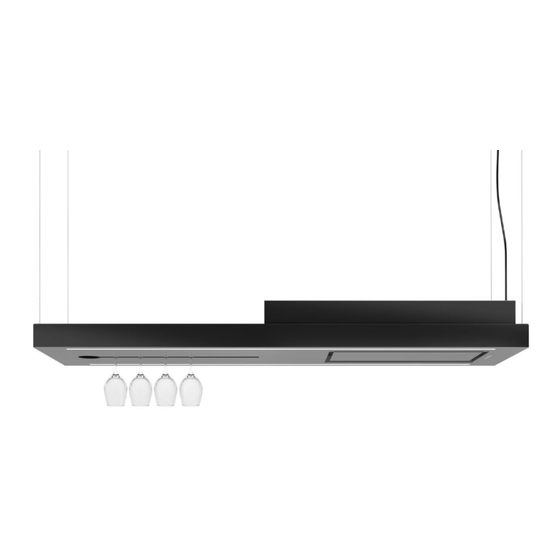

- Page 1 63″ Hubble Glass Island INSTALLATION, OPERATING AND MAINTENANCE GUIDE...
-
Page 2: Table Of Contents
I GENERAL ......................3 II WARNINGS ......................3 III INSTALLATION ....................4 III.1 Preliminary Indications ..................4 III.2 Secure the hood to the ceiling ................5 III.3 Electrical Connection ..................5 IV USE ........................ 5 V OPERATION ....................... 5 V.I Remote control operation .................. -
Page 3: I General
I GENERAL Installation, operating and maintenance instructions for cooker hood model HUB GLASS HOLDER. 120V – 60HZ READ AND SAVE THESE INSTRUCTIONS II WARNINGS CAUTION: Automatically Operated Device – To Reduce The Risk Of Injury Disconnect From Power Supply Before Servicing. WARNING: To Reduce The Risk Of Fire Or Electric Shock, Do Not Use This Fan With Any Solid -State Speed Control Device. -
Page 4: Installation
READ AND SAVE THESE INSTRUCTIONS Keep these instructions in a safe place and pass them on to any future user. Read these instructions carefully before installing or using the range hood. Before connecting the appliance to the power supply make sure that the voltage (V) and frequency (Hz) listed on the data plate correspond with the household electrical supply. -
Page 5: Iii.2 Secure The Hood To The Ceiling
III.2 Secure the hood to the ceiling The device (Fig. 3.2.1) is composed of the following elements: 1) Hood unit 2) Anchoring ropes All fixtures are provided with the cookerhood. Proceed as follows to intall the hood: 1) Draw and drill the ceiling as shown in Fig. 3.2.2 2) Lock the bushings with screws and dowels (Fig. -
Page 6: Remote Control Operation
V.I Operation of the hood controls The following keys (Fig. 5.1.1) are present on the hood controls: TL: light on/off and light temperature adjustment. T1: switch-on at first speed and extractor off. T2-T3-4: ventilation at 2nd, 3rd and 4th speed respectively. TR: 24h Comfort Function Light adjustment: TL single click: on/off... -
Page 7: Delayed Self-Switching Off
V. 3 Time delay shut-off This function allows to programme the delayed switch-off of the hood after cooking. While the hood is operating, choose the desired speed, then hold down the T2+T3 key for a few seconds until all the LEDs start flashing (T1,T2,T3,T4). -
Page 8: Maintenance And Cleaning
VI MAINTENANCE AND CLEANING Warning! Before any maintenance or cleaning operation, disconnect the hood from the power supply by setting the main switch of the domestic system to "off". VI.1 Metal grease filter Particular attention should be paid to the metal grease filter, which has the function of retaining the fat particles contained in the vapors. - Page 9 3.1.1 3.1. 3.1.2 3.2.1...
- Page 10 3.2.2...
- Page 11 3.2.4 3.2.3...
- Page 12 3.2.5 3.2.6...
- Page 13 6.1.1 5.1.1 5.1.2...
- Page 14 6.2.1...
