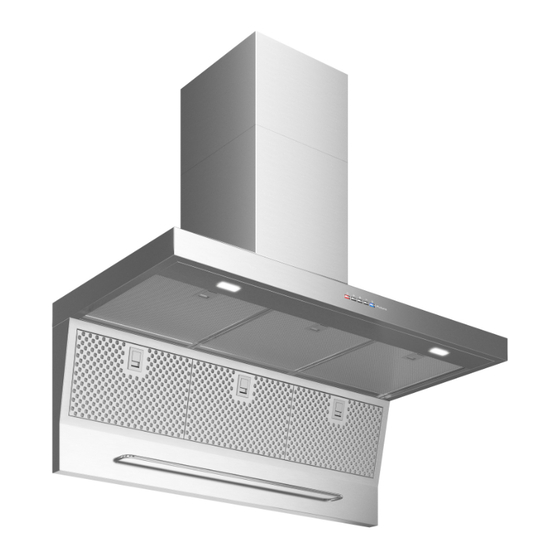

INSTRUCTIONS BOOKLET
GB
A
WARNINGS
This instruction booklet must be kept together with the appliance for future
reference. If the appliance is sold or consigned to other parties, check that
the booklet is supplied with it, to ensure that the new user has the correct
information on the operation of the range hood and is aware of the warnings.
These warnings have been provided for the your safety and the safety of oth-
ers. As a result, please read them carefully before installing and operating the
appliance.
This appliance is not intended for use by young children or infirm persons un-
less they have been adequately supervised by a responsible person to ensure
that they can use the appliance safely. Young children should be supervised
to ensure they do not play with the appliance.
The appliance must be installed by qualified personnel, in accordance with
the standards in force. If the supply cord is damaged, it must be re-placed
by the manufacturer, its service agent or similarly qualified persons in order
to avoid a hazard. Any modifications that may be required to the electrical
system for the installation of the range hood must only be made by qualified
electricians.
It is dangerous to modify or attempt to modify the characteristics of this sys-
tem. In the event of malfunctions or if repairs are required to the appliance,
do not attempt to solve the problems directly.
Repairs performed by unqualified persons may cause damage. For all repair
and other work on the appliance, contact an authorised service/spare parts
centre.
Always check that all the electrical parts (lights, exhaust device), are off when
the appliance is not being used. Read the entire instruction booklet before
performing any operations on the range hood.
The range hood must only be used for the exhaust of cooking fumes in home
kitchens. The manufacturer disclaims all liability for any other use of the ap-
pliance.
The maximum weight of any object placed above the hood, or hung to it (if
possible) must not exceed 1,5 kilos. After installing the stainless steel hood,
clean it in order to remove any residue of the protective glue, and stains of
grease or oil. The manufacturer recommends its cleaning cloth available for
purchase. The manufacturer accepts no liability in case of damage caused by
the use of different detergent types.
B
TECHNICAL SPECIFICATIONS
The technical data pertaining to the electric appliance The technical specifica-
tions of the appliance are shown on the rating plates located inside the range
hood.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Magnus Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Futuro Futuro Magnus Series

  • Page 1 INSTRUCTIONS BOOKLET WARNINGS This instruction booklet must be kept together with the appliance for future reference. If the appliance is sold or consigned to other parties, check that the booklet is supplied with it, to ensure that the new user has the correct information on the operation of the range hood and is aware of the warnings.
  • Page 2: Installation

    INSTALLATION (Section reserved for qualified installers of the range hood) Minimum distance: distance between the pan supports of the cooker and the bottom-most section of the hood. When the hood is positioned above a gas equipment this minimum distance must be at least 65 cm (see pictures) or even more, if this is specified in the instructions for use of the gas cooker.
  • Page 3 the mains power supply. Check that the wires inside the range hood are not disconnected or cut; if this is the case, contact your nearest service centre. The electrical connections must be performed by qualified personnel. The connections must be performed in compliance with the legal standards in force.
  • Page 4: Operation

    For maximum efficiency, the third speed should be used when there are strong odours or a lot of steam, the second speed in normal conditions, and the first speed for keeping the air clean with minimum energy consumption. The range hood should be switched on when starting to cook, and left on until the odours disappear.
  • Page 5 Pushbutton + Press to increase motor speed Speed 1, 2 and 3 are indicated by the number of LEDs that light up (exclud- ing the light and the timer LEDs). (In the 4-speed version the pushbutton + blinks. The fourth speed remains on for a set duration of time.
  • Page 6: Charcoal Filters

    FILTERS REMOVING AND REPLACING’S INSTRUCTIONS 1. METAL FILTERS To remove the metal grease-trapping filter, simply pull the handle A until releasing it from the front guide; then tilt it slightly downwards, and slide it out of the rear guide. To reposition the filter, repeat the operation in the reverse order.
  • Page 7: Fluorescent Tube

    WARNING! Light bulbs with different shapes and power ratings from the original may seriously damage the light compartment. 2. SPOTLIGHT To replace the lamp: a) Make sure the appliance is disconnected from the mains power supply. b) Remove, by levering with a screwdriver, the support ring A for the cover glass. c) Remove the cover glass B to access the light compartment.
  • Page 8: Cleaning The Outside Of The Appliance

    To remove and replace these filters, see the instructions in point H1. This operation should be performed at regular intervals. The metal filters could be cleaned in a dishwasher. 2. CHARCOAL FILTERS These trap the odours present in the stream of air that passes through them.
  • Page 9: Warranty

    - Ensure that all regulations concerning the discharge of exhaust air have been fulfilled before you use the appliance. Before performing any cleaning or maintenance operations, disconnect the appliance by unplugging it or using the main switch. The manufacturer dis- claims all liability for any damage that may be directly or indirectly caused to people, things and animals due to the failure to follow all the instructions provided in this booklet and above all the warnings relating to the installa-...
  • Page 10 Step 2 - Hook the range hood to the support bar (Fig. 2). - Adjust the alignment of the range hood using the screws on the brack-ets (Fig. 2). The top screw (B) adjust the distance from the wall, the bottom screw (C) adjust the height.
