RANGE HOOD

INSTALLATION MANUAL

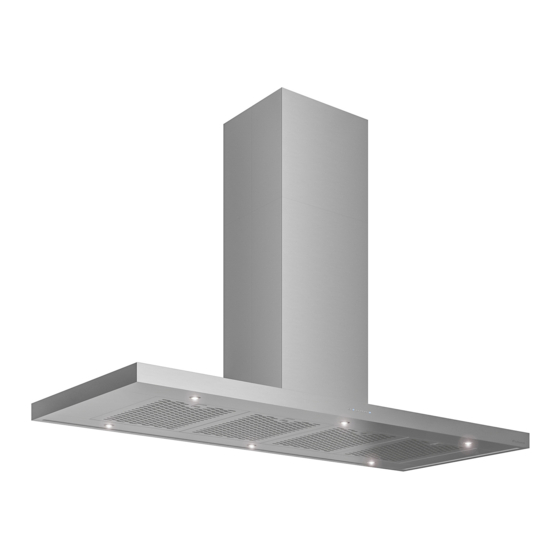

MODEL: SILVANA ISLAND
NOTE: PRIOR TO INSTALLATION
Please inspect range hood visually,
as well as connect it to power supply
and test its operation.

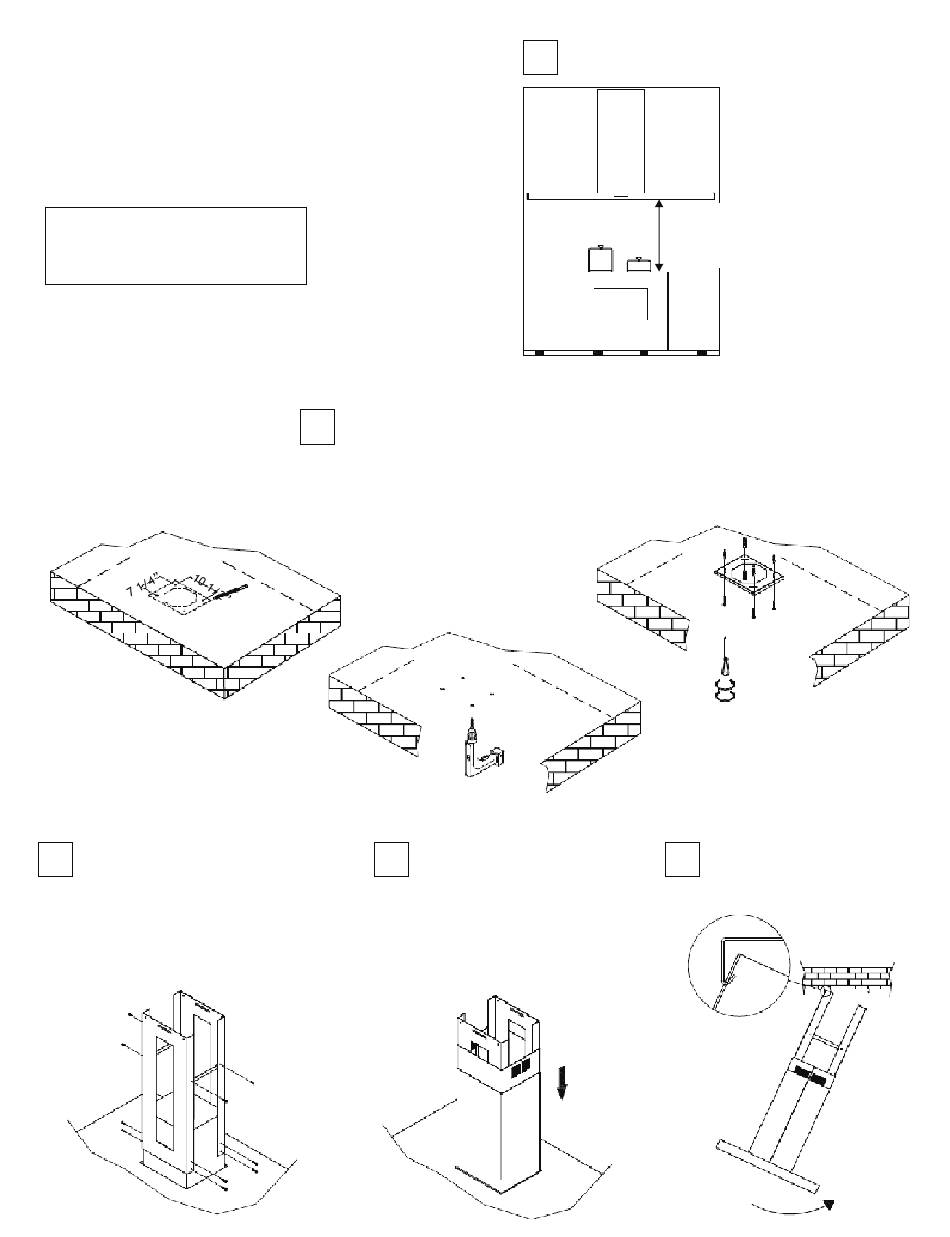

ADJUST CHIMNEY
3
The vertical chimney is height-adjustable.
1.) Remove retaining screws.
2.) Adjust chimney to desired height.
NOTE: bottom of the range hood should be
26" to 28" above cooktop,
for best performance.
3.) Replace retaining screws.
onto the chimney structure.
NOTE: DO NOT REMOVE the
INSTALL CEILING PLATE
2
The range hood should be centered over the cooking area.
1.) Place the ceiling plate against the ceiling,
and mark the location of screw holes.
2.) Remove ceiling plate & drill holes.
3.) Attach ceiling plate securely with screws.
NOTE: concrete / masonry ceilings: use plastic
anchors / toggle bolts, as necessary.
ADD CHIMNEY COVERS
4
Place the chimney cover/s
(1 or both, depending on height)
protective plastic film, in order to
avoid scratches during installation.
R
ECOMMENDED
1
I H
NSTALLATION EIGHT
26" - 28"
from cooktop
to bottom
of hood
ATTACH CHIMNEY TO CEILING (1/2)
5
Secure the chimney into the
ceiling plate.
