36" C
B
W
R
H
INSTALLATION MANUAL

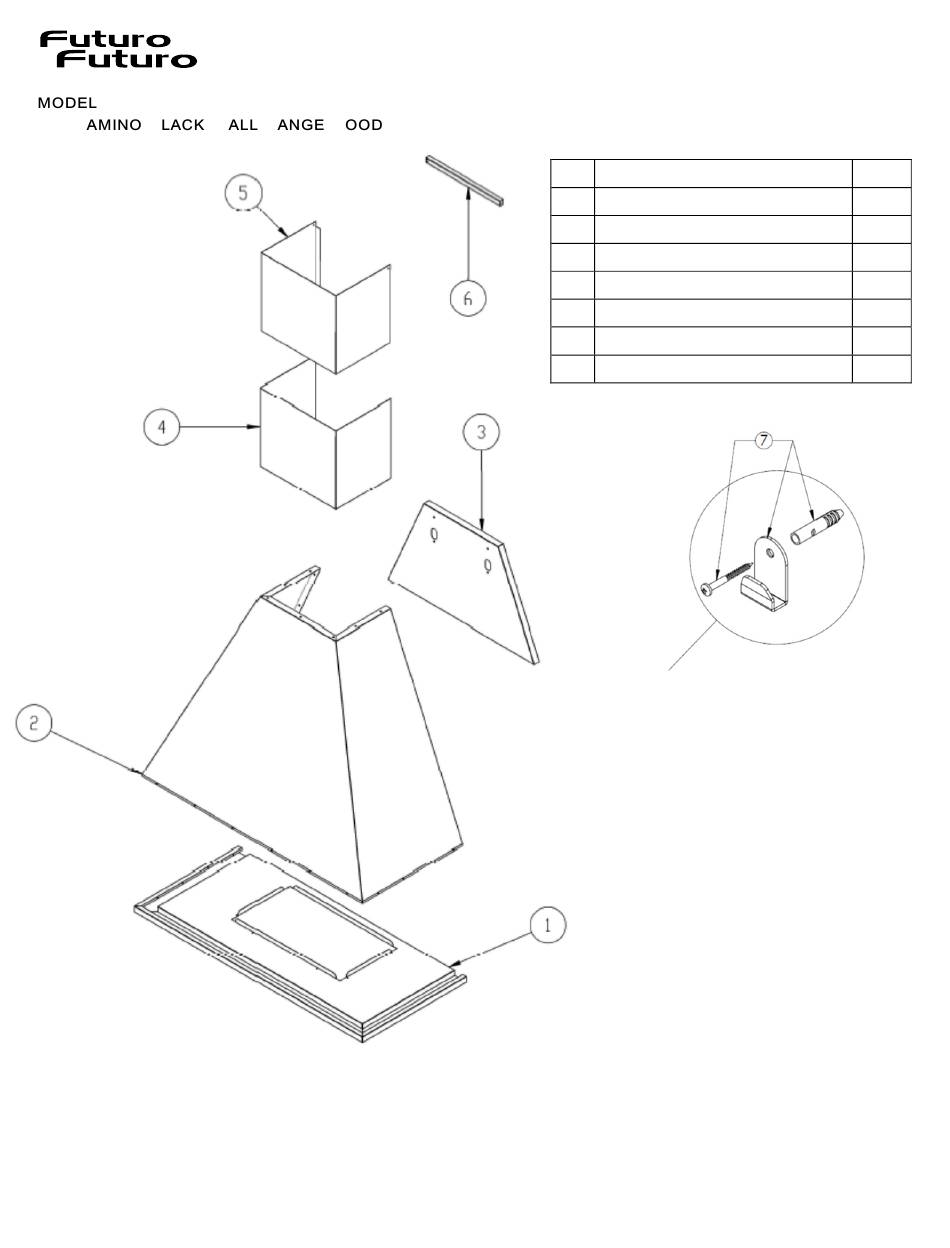

Nr Description
1
Metal frame
2
Metal body
3
Back
4
Fixed Chimney
5
Telescopic chimney
6
Chimney support
7
Expansion wall plug
Qt.
1
1
1
1
1
1
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WL36CAMINO-GM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Futuro Futuro WL36CAMINO-GM

  • Page 1 INSTALLATION MANUAL 36″ C Nr Description Metal frame Metal body Back Fixed Chimney Telescopic chimney Chimney support Expansion wall plug...
  • Page 2 1. Inside the packaging cooker hood (1-2-3) will be ready to be mounted except for the chimney (4 ) 2. Fix the chimney (4) to the hood by the provided screws inside the parcel. See below (A) 3. Drill the wall to place the expansion wall plug (7) measuring the distance of the holes in the back of the metal body (3) A.
  • Page 3 7. Place the blower inside the metal panel of the rustic hood 8. Installation carbon filter (optional) For best hood performance, it's recommended to replace the carbon filter every 3-4 month...
