Futuro Futuro Classic Range hood Instruction Booklet

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Fig. 1
Fig. 2
Fig. C1
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Classic Range hood and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Futuro Futuro Classic Range hood

Summary of Contents for Futuro Futuro Classic Range hood

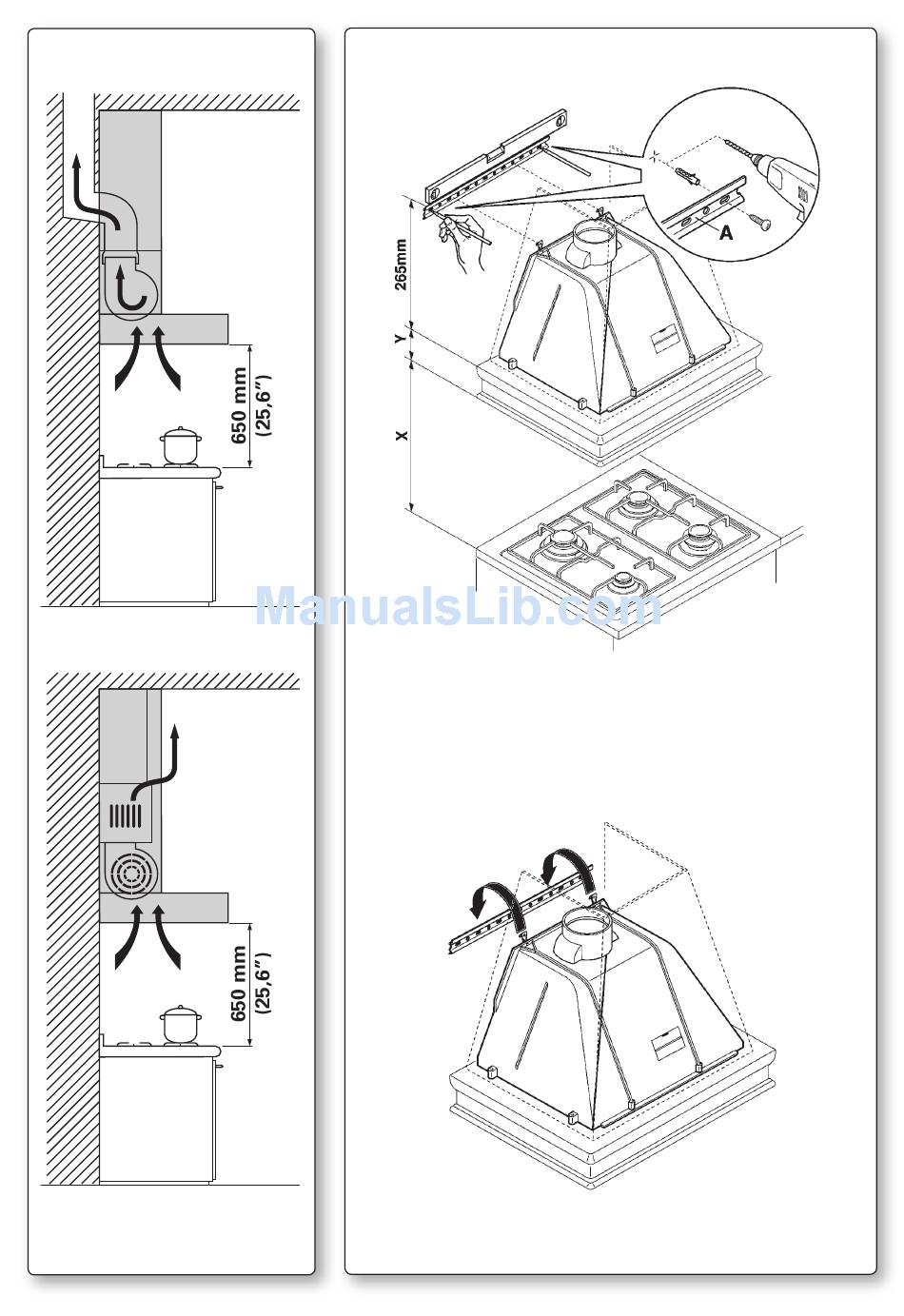

  • Page 1 Fig. 1 Fig. 2 Fig. C1...
  • Page 2 Fig. 3 Fig. 4...
  • Page 3 FASTENING HOLES Fig. 7 STIRRUP A TOP SECTION CENTER SECTION HOOD UNIT Fig. 8...

  • Page 4: Technical Specifications

    INSTRUCTIONS BOOKLET WARNINGS This instruction booklet must be kept together with the appliance for future reference. If the appliance is sold or consigned to other parties, check that the booklet is supplied with it, to ensure that the new user has the correct information on the operation of the range hood and is aware of the warnings.

  • Page 5: Installation

    INSTALLATION (Section reserved for qualified installers of the range hood) Minimum distance: distance between the pan supports of the cooker and the bottom-most section of the hood. When the hood is positioned above a gas equipment this minimum distance must be at least 65 cm (see picture C1) or even more, if this is specified in the instructions for use of the gas cooker.

  • Page 6: Operation

    RANGE HOOD WITH OUTSIDE DISCHARGE (exhaust) In this version, the fumes and steam from the kitchen are conveyed outside through an exhaust duct. The exhaust conveyor that protrudes from the upper part of the range hood must be connected to a duct that carries the fumes and steam outside. In this version, the charcoal filters, if fitted, should be removed;...

  • Page 7: Electronic Control Panel

    2. FIVE BUTTON CONTROL PANEL LIGHT- button Pressed: the light is on Released: the light is off MOTOR button - 1, 2, 3, OFF 1: starts the motor at minimum speed 2: starts the motor at medium speed 3: starts the motor at maximum speed OFF: stops the motor 3.

  • Page 8: Charcoal Filters

    Light pushbutton on remote control: light on/off. – and + pushbutton: increase/decrease speed (to start the motor press either the + or the – pushbutton). Timer pushbutton: see instructions below. Timer and ‘filter clogged’ alarm pushbutton • This function allows the automatic turning off of the hood after running for 15 minutes at the speed previously set (the pushbutton shows a flicker- ing light).

  • Page 9: Light Bulb

    LIGHTING ASSEMBLY AND REPLACEMENT 1. LIGHT BULB To replace the light bulb: a) Make sure the appliance is disconnected from the mains power supply. b) Unscrew the support screw A and remove the light cover. c) Replace the light bulb with the same model as the original (max 25 W, see the markings near the light).

  • Page 10: Fluorescent Tube

    How to replace the dicroic lamp: a) Check that the equipment is disconnected from the power supply. b) Remove the lamp with the help of a screwdriver (see figure) c) Replace the lamp with a similar one (dichroic, max 20 W, 12 Volt). Lamp Dicroic spot How to replace a square halogen light:...

  • Page 11: Cleaning The Outside Of The Appliance

    them. Wait until they are completely dry before repositioning them. To remove and replace these filters, see the instructions in point H1. This operation should be performed at regular intervals. 2. CHARCOAL FILTERS These trap the odours present in the stream of air that passes through them. The air is purified by passing a number of times through the filters and being recirculated into the kitchen.

  • Page 12: Warranty

    - Ensure that all regulations concerning the discharge of exhaust air have been fulfilled before you use the appliance. Before performing any cleaning or maintenance operations, disconnect the ap- pliance by unplugging it or using the main switch. The manufacturer disclaims all liability for any damage that may be directly or indirectly caused to people, things and animals due to the failure to follow all the instructions provided in this booklet and above all the warnings relating to the installation, operation...
  • Page 13 position, using 2 screws B fixed in the two slots in the top back panel (Fig. 5). - Fit the safety screws C in the bottom back panels (Fig. 5). Step 2 - After having fixed the hood, connect the flexible hose to the fume outlet hole and to the circular pipe fitting of the motor chamber.
