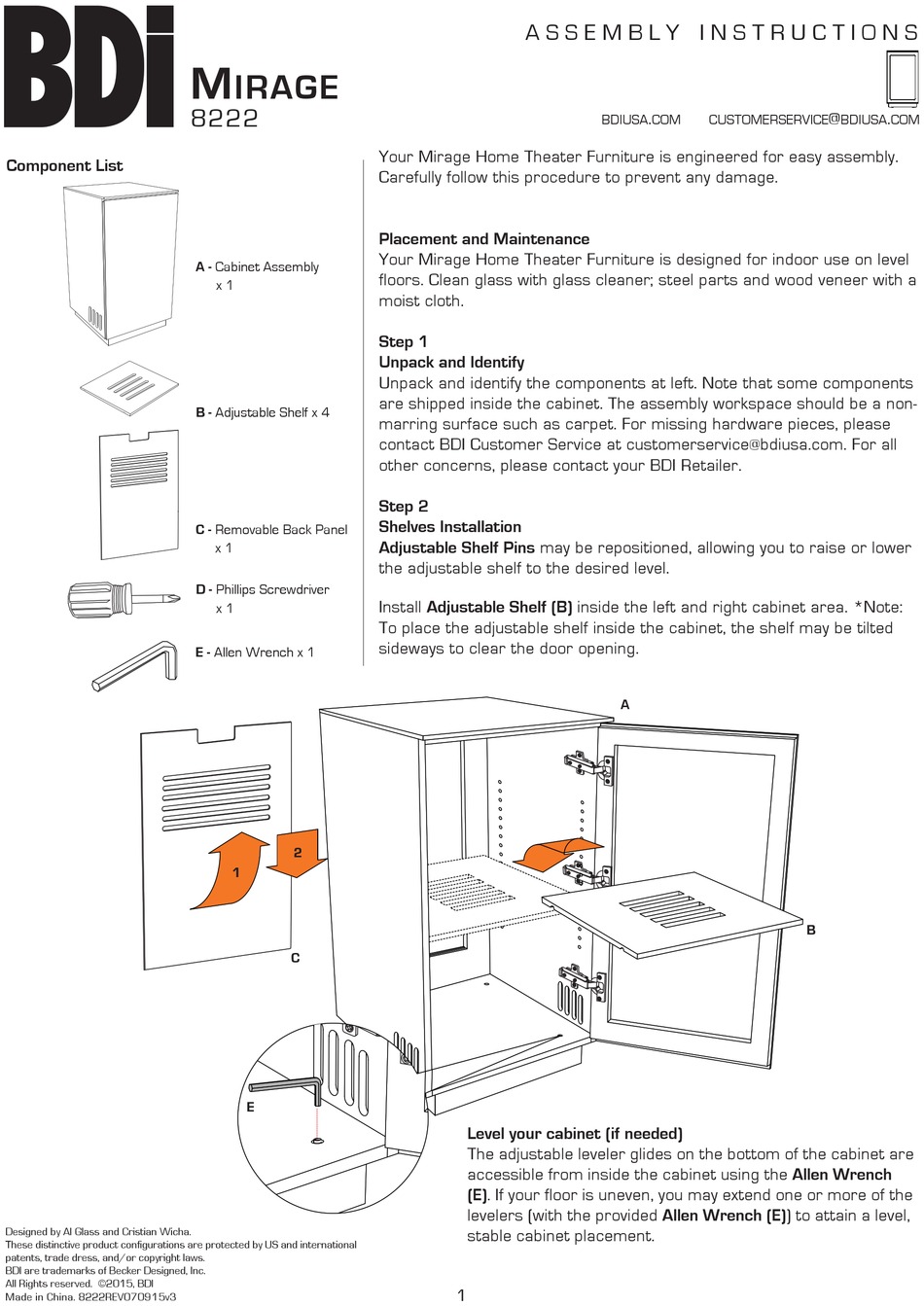

BDI Mirage 8222 Assembly Instructions

Component List
Designed by Al Glass and Cristian Wicha.
These distinctive product configurations are protected by US and international
patents, trade dress, and/or copyright laws.
BDI are trademarks of Becker Designed, Inc.
All Rights reserved. ©2015, BDI
Made in China. 8222REV070915v3
M
irage
8222
A - Cabinet Assembly
x 1
B - Adjustable Shelf x 4
2.
3.
1.
2.
C - Removable Back Panel
x 1
1.
D - Phillips Screwdriver
x 1
E - Allen Wrench x 1
2
1
C
E
a s s e m b l y i n s t r u c t i o n s
Your Mirage Home Theater Furniture is engineered for easy assembly.
2.
Carefully follow this procedure to prevent any damage.
3.
2.
1.
2.
Placement and Maintenance
Your Mirage Home Theater Furniture is designed for indoor use on level 3.
1.
floors. Clean glass with glass cleaner; steel parts and wood veneer with a
moist cloth.
Step 1
Unpack and Identify
Unpack and identify the components at left. Note that some components
are shipped inside the cabinet. The assembly workspace should be a non-
2.
marring surface such as carpet. For missing hardware pieces, please
contact BDI Customer Service at customerservice@bdiusa.com. For all
3.
other concerns, please contact your BDI Retailer.
2.
1.
2.
Step 2
3.
2.
1.
Shelves Installation
3.
Adjustable Shelf Pins may be repositioned, allowing you to raise or lower
the adjustable shelf to the desired level.
Install Adjustable Shelf (B) inside the left and right cabinet area. *Note:
To place the adjustable shelf inside the cabinet, the shelf may be tilted
sideways to clear the door opening.
Level your cabinet (if needed)
The adjustable leveler glides on the bottom of the cabinet are
accessible from inside the cabinet using the Allen Wrench
(E). If your floor is uneven, you may extend one or more of the
levelers (with the provided Allen Wrench (E)) to attain a level,
stable cabinet placement.
1
.
bdiusa com customerservice
A
@ .
bdiusa com
B
