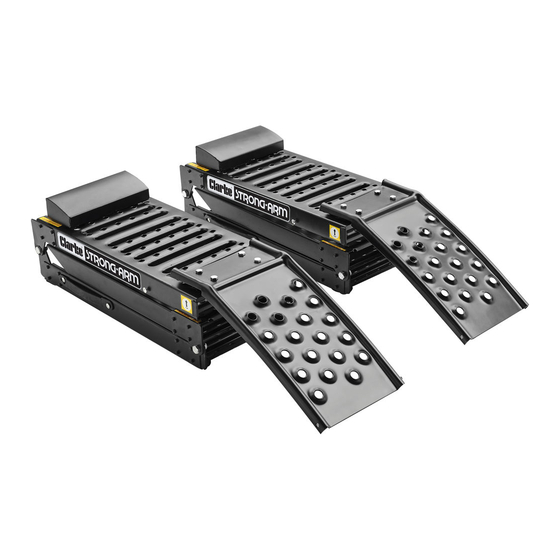

- Page 1 500KG STEEL FOLDING RAMPS MODEL NO: CFSR500P PART NO: 7610199 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS LS0320 ISS 1...
- Page 2 In doing so you can look forward to the product giving you long and satisfactory service. GUARANTEE This CLARKE product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt as proof of purchase.
- Page 3 SAFETY 1. Read, study, understand and follow all product warnings/cautions and instructions before use. Failure to do so may result in injury and/or property damage. 2. ALWAYS load or unload on a solid, level, well lit surface. 3. Make sure that the truck or trailer is in a locked position. (Make sure parking brakes are on).
- Page 4 18. Maintain correct balance and footing, DO NOT over reach. Ensure the floor is not slippery and wear non-slip shoes. 19. Proper care and maintenance of the ramp is critical to safety. 20. Proper use of this product is critical to safety. Improper use may result in personal or property damage which is not covered by the warranty.
- Page 5 CONTENTS Folding Ramp with Carrying Strap Angle Ramp with Safety Straps Tyre Stop Bolt & lock nut (M10X20) Bolt, nut & washer (M8x35) Bolt, nut & washer (M8x20) Bolt & washer (M8x16) Bolt, nut & washer (M6x16) CONFIGURATIONS TO USE AS VEHICLE RAMP 1.
- Page 6 ASSEMBLY 1. Carefully lift one ramp at a time from the packaging using the handle. 2. Set the ramp on a flat surface. 3. Release the handle by sliding it upwards. 4. Unfold all sections of the ramp. 5. Remove the tyre stop and angle ramp.
- Page 7 INSPECTION BEFORE USE These ramps shall be maintained in accordance with the instructions provided. Inspection shall be made of each ramp prior to use. Keep ramps free of dirt and oil. Do not use if ramps are damaged in any way. OPERATION - AS LOADING RAMPS WARNING: THE WARNINGS, CAUTIONS AND INSTRUCTIONS REFERRED TO IN THIS MANUAL CANNOT COVER ALL POSSIBLE CONDITIONS AND...
