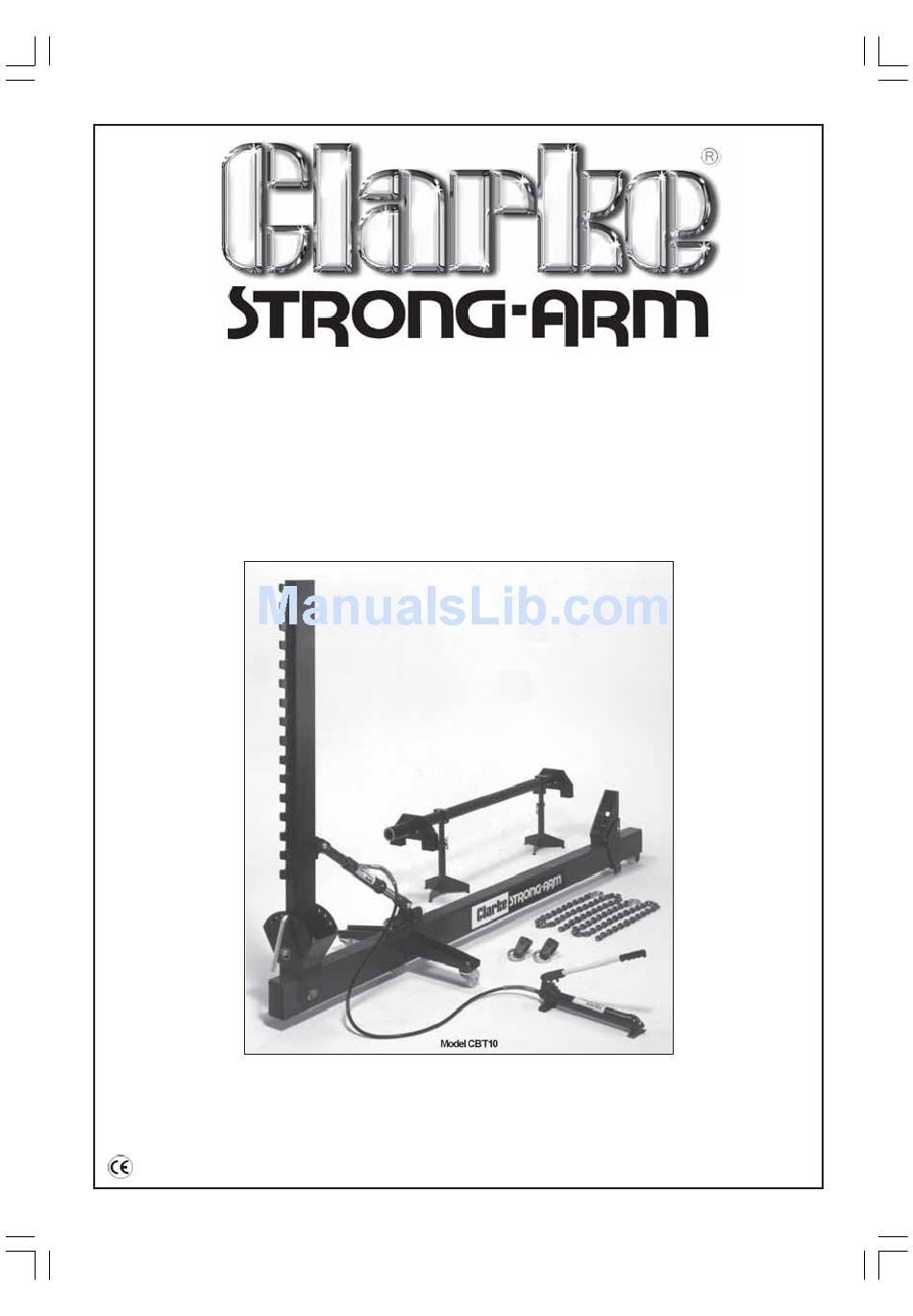

- Page 1 TON BODY STRAIGHTENER Model Nos. CB10 & CBT10 OPERATING & MAINTENANCE INSTRUCTIONS 0201...
-
Page 2: Table Of Contents
GUARANTEE This CLARKE product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt as proof of purchase. This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for the purpose for which it was intended. -
Page 3: Features & Specifications
FEATURES and SPECIFICATIONS Model CB10 comprises the following: Main Frame Assy 2 pcs Support Stand Multi-position Anchor Post 2 pcs Pull Ring 6” Stroke Hydraulic Ram (10 Ton capacity) 2 pcs Pull Clamp Manual Pump 6Ft Chain with 3/8” Hook Cross Tube 10. -
Page 4: How To Identify The Type Of Damage
HOW TO IDENTIFY THE TYPE OF THE DAMAGE Chassis damage can usually be grouped into five 3. KICK-UP basic types of damage, described as SAG, SWAY, Quite often with direct front or rear end damage, KICK-UP, DIAMOND and TWIST, only a part of the chassis will kick-up like this: Even though chassis are made in many ways (such as ladder, offset, X-type etc.), collision impact will distort the chassis, or parts of it,... -
Page 5: How To Measure The Extent Of Damage
HOW TO MEASURE THE EXTENT OF THE DAMAGE Before you begin work with your Body the body/chassis has moved in some way. Straightener, it is vital that you determine how From these measurements, determine where and extensive the damage is. how the distortion has occurred. - Page 6 Use a steel plate between the jack and the chassis as a temporary support. When you have chassis to spread the load, otherwise the jack may finished pulling, cut off the plate. collapse the chassis. Blocks may be inserted inside Occasionally on SWAY pulls you may find that the the channel-type chassis to help prevent the Body Straightener lifts off the floor.
-
Page 7: How To Repair Unitised Bodies
A Clarke Body Straightener, with its practical Use of Hydraulic Rams (such as Clarke’s 10Ton method of mounting the car on low stands, allows Hydraulic Body Repair Kit - CS10TK - see your easy access to all sections. - Page 8 The Anchor Post can push against the Underbody ROUGH OUT THE WORK Clamp and tube, as shown... By this we mean the restoring of panels to APPROXIMATE shape and dimension EVEN THOUGH THEY MAY LATER BE REPLACED. Panels should be roughed out before any cutting is done, otherwise adjacent structures to which the panel is welded may retain their damaged contours after cutting.
- Page 9 ..or to the body using Underbody Clamps as Other typical ‘hook ups’ are illustrated below. previously shown. Next, a pulling attachment is secured to the Blocks of wood to spread load damaged part as shown below. and avoid unnecessary damage. Block of wood to spread load and avoid unnecessary damage.
-
Page 10: Parts List & Diagrams
PARTS LIST & DIAGRAM Model CB10 No. Description Qty Part No. No. Description Qty Part No. Main Beam 1 CB1001 Ram Locating Pin CB1010 Mast 1 CB1002 Circlip CB1011 Main Beam Locating Pin 1 CB1003 Support Stand CB1012 Circlip 1 CB1004... -
Page 11: Parts List & Diagrams
PARTS LIST & DIAGRAM Model CBT10 No. Description Qty Part No. No. Description Qty Part No. Main Beam CBT1001 Anchor Post Lower Bracket 1 CBT1017B Tilting Support CBT1002 Anchor Post Locating Pin CBT1017C Main Beam Locating Pin CBT1003 Locating Pin Clip CBT1017D Circlip CBT1004...
