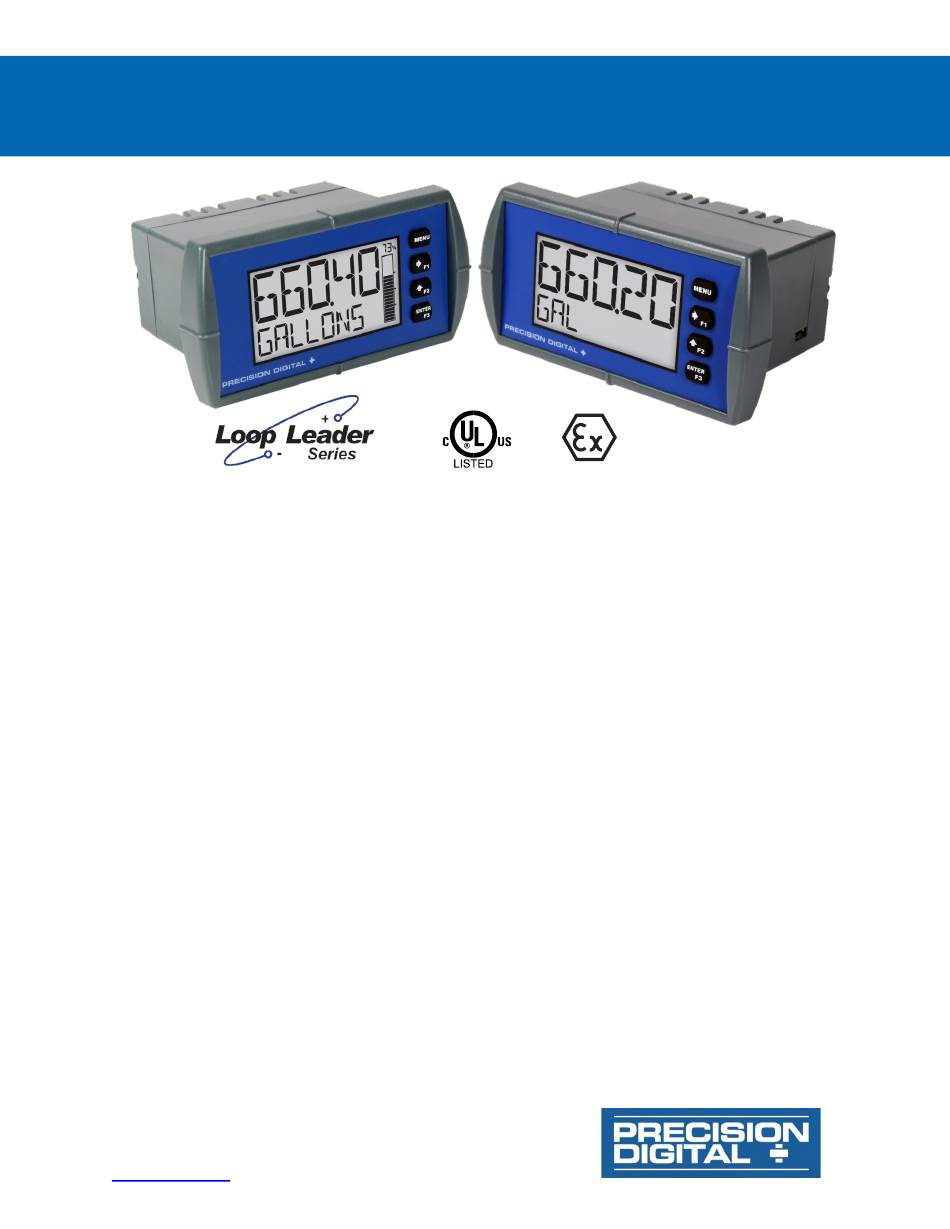

Loop Leader PD6600 Series Loop-Powered Meters
Instruction Manual
1/8 DIN Loop-Powered Process Meters with NEMA 4X, IP65 Front
4-20 mA Input Displayed with ±0.02% FS Accuracy
1.5 Volt Drop (4.5 Volt Drop with Backlight)
0.7" (17.8 mm) 5 Alphanumeric Characters Top Display
0.4" (10.2 mm) 8 Alphanumeric Characters Bottom Display
20-Segment Bargraph with Numeric Percent Indication
Shallow Depth Case Extends Only 3.6" (91 mm) Behind Panel
(2) Open Collector Outputs Standard; Programmable as Pulse, Alarm, Timer, Stopwatch
(2) Optional Loop-Powered Solid State Relays; Programmable as Alarm, Control, Timer, Stopwatch
Stopwatch & Timer Functions to Drive Relays & Open Collectors
Optional Isolated 4-20 mA Analog Output
Relay Pump Alternation Based on Level and Runtime
Display Relay Runtime & Cycle Count via Relay Info Menu
Free PC-Based MeterView XL USB Programming Software
HART
Protocol Transparent
®
Loop-Powered Backlight with Red Backlight for Alarm Conditions
Safe Area Operating Temperature Range: -40 to 167°F (-40 to 75°C)
Conformal Coated PCBs for Dust & Humidity Protection
Password Protection
UL & C-UL 61010 Listed for Electrical Safety
UL & C-UL Listed as Intrinsically Safe and Nonincendive
ATEX and IECEx Certified as Intrinsically Safe
Wide Assortment of NEMA 4X Enclosures for up to Ten Meters
Light / Horn & Reset Button Accessory
Control Station Accessory for Remote Operation of Digital Input
3-Year Warranty
PRECISION DIGITAL CORPORATION
233 South Street • Hopkinton MA 01748 USA
Tel (800) 343-1001 • Fax (508) 655-8990
www.predig.com
PD6606 & PD6608 Only
IECEx

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Loop Leader PD6600 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Precision Digital Corporation Loop Leader PD6600 Series

  • Page 1 Loop Leader PD6600 Series Loop-Powered Meters Instruction Manual IECEx PD6606 & PD6608 Only 1/8 DIN Loop-Powered Process Meters with NEMA 4X, IP65 Front • • 4-20 mA Input Displayed with ±0.02% FS Accuracy 1.5 Volt Drop (4.5 Volt Drop with Backlight) •...
  • Page 2: Introduction

    Loop Leader PD6600 Series Loop-Powered Meters Instruction Manual Disclaimer Introduction The information contained in this document is subject to change without notice. Precision Digital These loop-powered 1/8 DIN digital panel meters can Corporation makes no representations or be installed virtually anywhere to provide convenient warranties with respect to the contents hereof;...
  • Page 3: Ordering Information

    Loop Leader PD6600 Series Loop-Powered Meters Instruction Manual Ordering Information General Purpose Instruments Loop Leader PD6602 • Standard Decimal Models – General Purpose Model Description PD6602–LNN Loop-Powered, General Purpose, No Options PD6602–L2N Loop-Powered, General Purpose, Two Solid State Relays PD6602–L3N Loop-Powered, General Purpose, 4-20 mA Analog Output PD6602–L5N...
  • Page 4: Table Of Contents

    Loop Leader PD6600 Series Loop-Powered Meters Instruction Manual Table of Contents Introduction ......................2 Ordering Information ..................3 General Purpose Instruments ............... 3 Hazardous Area Instruments ................ 3 Enclosures ...................... 3 Accessories ....................3 Specifications ..................... 6 Display ......................6 General ......................
  • Page 5 Loop Leader PD6600 Series Loop-Powered Meters Instruction Manual Programming the Outputs (OUTPUT) ............23 Open Collector Outputs (OPEN COLLECTR) ..........23 Solid State Relay Outputs (RELAY) ............26 Isolated 4-20 mA Output (4-20 mA) ............29 Output Manual Control (CONTROL) ............29 Advanced Features Menu (ADVANCED) ............
  • Page 6: Specifications

    Loop Leader PD6600 Series Loop-Powered Meters Instruction Manual Specifications Filter Bypass 0.0 to 99.9% of full scale. Input signal Except where noted all specifications apply to operation at +25°C. changes that are greater than bypass value Display are displayed immediately.
  • Page 7: Common Open Collector & Relay (Alarm) Specifications

    Loop Leader PD6600 Series Loop-Powered Meters Instruction Manual Common Open Collector & Solid State Relays Relay (Alarm) Specifications Rating 250 VAC/VDC @ 1 A resistive 75 VA; 250 VAC; 0.6 A pilot duty Number Two open collectors & two relays (inductive) –...
  • Page 8: Meterview Xl Programming Software

    Loop Leader PD6600 Series Loop-Powered Meters Instruction Manual MeterView XL Programming General Compliance Software Information Availability Free download from www.predig.com Electromagnetic Compatibility System Microsoft® Windows® 7 & 10 Requirements EMC Emissions • CFR 47 FCC Part 15 Subpart B Class A Communications USB 2.0...
  • Page 9: Pd6606 & Pd6608 Compliance Information

    Loop Leader PD6600 Series Loop-Powered Meters Instruction Manual PD6606 & PD6608 ATEX/IECEx Special Conditions for Safe Use The following conditions relate to safe installation Compliance Information and/or use of the equipment. • The permitted ambient temperature range for the Safety PD6606/PD6608 is -40°C to 70°C.
  • Page 10: Safety Information

    Loop Leader PD6600 Series Loop-Powered Meters Instruction Manual Safety Information Required I.S. Equipment Relationship I.S. Barrier Entity Entity Between Entity Parameters Parameters Parameters V max (or Ui) ≥ Voc or Vt (or Uo) Read complete instructions prior to installation •...
  • Page 11: Installation

    Loop Leader PD6600 Series Loop-Powered Meters Instruction Manual Installation There is no need to remove the meter from its case to complete the installation, wiring, and setup of the me- ter for most applications. PD6606 and PD6608 installation must be...
  • Page 12: Dimensions

    Loop Leader PD6600 Series Loop-Powered Meters Instruction Manual Dimensions Connections All units: inches (mm) All connections are made to removable screw 1.76" terminal connectors located at the rear of the meter. (45mm) This section is only intended for PD6602 and PD6604 safe area installations.
  • Page 13: Wiring Diagrams

    Loop Leader PD6600 Series Loop-Powered Meters Instruction Manual Wiring Diagrams Safe Area 4-20 mA Output Connections Connections for the 4-20 mA transmitter output are made to the connector terminals labeled mA OUT. Safe Area Current Loop (4-20 mA) The 4-20 mA output must be powered from an exter- Connections nal power supply.
  • Page 14: Setup And Programming

    Loop Leader PD6600 Series Loop-Powered Meters Instruction Manual Setup and Programming Front Panel Buttons and Status Indicators The meter is factory calibrated prior to shipment to display 0.00 to 100.00, which corresponds to the 4-20 mA input. The calibration equipment is traceable to NIST standards.
  • Page 15: Display Functions & Messages

    Loop Leader PD6600 Series Loop-Powered Meters Instruction Manual Display Functions & Messages Display Functions & Messages Parameter Action/Setting Description The meter displays various functions and messages during setup, programming, and operation. The following table shows the main menu functions and messages in the order Pascal they appear in the menu.
  • Page 16 Loop Leader PD6600 Series Loop-Powered Meters Instruction Manual Display Functions & Messages Display Functions & Messages Parameter Action/Setting Description Parameter Action/Setting Description Select PV 2 source (dual-scale SOURCE only; see PV 2 under advanced Program the meter’s available OUTPUT features menu)
  • Page 17 Loop Leader PD6600 Series Loop-Powered Meters Instruction Manual Display Functions & Messages Display Functions & Messages Parameter Action/Setting Description Parameter Action/Setting Description Display the PV’s minimum and Hold/un-hold open collector MIN MAX OC1+2 maximum value outputs Display the current mA input value...
  • Page 18: Main Menu

    Loop Leader PD6600 Series Loop-Powered Meters Instruction Manual Display Functions & Messages Main Menu Parameter Action/Setting Description The main menu consists of all the meter’s program- PV+TAG (1 or 2) Display the process variable and mable functions: Input, Output, Advanced, and Dis- tag alternating play.
  • Page 19: Setting Numeric Values

    Loop Leader PD6600 Series Loop-Powered Meters Instruction Manual Setting Numeric Values The numeric values are set using the Right and Up- Processes which require a non-linear scale can be Arrow buttons. Press Right-Arrow to select next digit accommodated using the linear (LINEAR), exponent and Up-Arrow to increment digit value.
  • Page 20: Available Unit Classes And Units

    Loop Leader PD6600 Series Loop-Powered Meters Instruction Manual Available Unit Classes and Units The meter has six available preprogrammed unit Weight Units (WEIGHT) classes, volume, height, temperature, pressure, Grams weight, and rate. Each unit class has the following Kilograms available units to choose from:...
  • Page 21: Setting The Display Features (Display)

    Loop Leader PD6600 Series Loop-Powered Meters Instruction Manual Setting the Display Features Display Capabilities Optimization (TOP and BOTTOM) (DISPLAY) Display Configuration Examples The meter’s display functions may be programmed The meter’s dual-line display can be setup in multiple using the Display menu. This menu consists of the...
  • Page 22: Configuring The Display

    Loop Leader PD6600 Series Loop-Powered Meters Instruction Manual Configuring the Display The bottom line (BOTTOM) can display: The display is configured using the TOP and Units • BOTTOM menus in the DISPLY menu. Additional Process Value (PV) • menus are available if the meter is in dual-scale Process Value 2 (dual-scale only;...
  • Page 23: Programming The Outputs (Output)

    Loop Leader PD6600 Series Loop-Powered Meters Instruction Manual Programming the Outputs The Open Collector Outputs are programmed in the following manner: (OUTPUT) SETUP Depending on the model purchased, the meter may OUTPUT be available with two open collector outputs, two solid state relays, and one 4-20 mA output.
  • Page 24 Loop Leader PD6600 Series Loop-Powered Meters Instruction Manual Alarm (ALARM) For both the PV and digital input alarms, a delay Alarm outputs may be assigned to the PV or the digital input. When assigned to the PV, the alarm may before the alarm is turned on or off may be set, as be set as either a high alarm or a low alarm.
  • Page 25 Loop Leader PD6600 Series Loop-Powered Meters Instruction Manual Timer (TIMER) Stopwatch (STPWATCH) The timer output may be set to generate the timed The stopwatch function may be used to manually run pulse only once (ONESHOT) or continuously (CONT). and control a process for a specific time interval up to 99 hrs., 59 min, and 59 seconds.
  • Page 26: Solid State Relay Outputs (Relay)

    Loop Leader PD6600 Series Loop-Powered Meters Instruction Manual Solid State Relay Outputs (RELAY) Alarm (ALARM) The meter can be optionally equipped with two solid Alarm outputs may be assigned to the PV or the digi- state relays that may be set up for alarms, timer, tal input.
  • Page 27 Loop Leader PD6600 Series Loop-Powered Meters Instruction Manual Pump Control (PUMPCTRL) Pump Alternation (ALTERN) The pump control output is used in situations where Pump alternation sets the two relays to alternate eve- the relays are used to control pumps. There are two ry time the first on point (ON 1) is reached.
  • Page 28 Loop Leader PD6600 Series Loop-Powered Meters Instruction Manual Pump Alternation Example Timer (TIMER) The timer output may be set to generate the timed The following is an example application where the pulse only once (ONESHOT) or continuously (CONT). relays are programmed for pump alternation.
  • Page 29: Isolated 4-20 Ma Output (4-20 Ma)

    Loop Leader PD6600 Series Loop-Powered Meters Instruction Manual Stopwatch (STPWATCH) Isolated 4-20 mA Output (4-20 mA) The stopwatch function may be used to manually run The 4-20 mA menu is used to scale the isolated 4-20 and control a process for a specific time interval up to mA output based on display values.
  • Page 30: Advanced Features Menu (Advanced)

    Loop Leader PD6600 Series Loop-Powered Meters Instruction Manual Advanced Features Menu Signal Input Conditioning Functions (FUNCTION) (ADVANCED) The Function menu is used to select the input signal To simplify the setup process, functions not needed conditioner applied to the input: linear, square root,...
  • Page 31 Loop Leader PD6600 Series Loop-Powered Meters Instruction Manual Programmable Exponent Linearization (EXPONENT) The programmable exponent can be used to linearize the signal from level transmitters in open-channel flow The Programmable Exponent function is programmed applications using weirs and flumes. in the following manner: FUNCT 1.
  • Page 32 Loop Leader PD6600 Series Loop-Powered Meters Instruction Manual Multi-Point Linearization (LINEAR) Round Horizontal Tank Linearization (RH TANK) Up to 32 linearization points can be selected for PV1 and PV2 under the LINEAR function. Multi-point line- This function automatically calculates the volume in a arization can be used to linearize the display for non- round horizontal tank with flat ends.
  • Page 33: Low-Flow Cutoff (Cutoff)

    Loop Leader PD6600 Series Loop-Powered Meters Instruction Manual Advanced Scaling and Calibration Follow these steps to calibrate the input: (SCALE. C AL) After accessing the SCALE . C AL menu, press This menu offers options to scale or calibrate the the Right-Arrow button to scroll to the meter.
  • Page 34: Noise Filter (Filter)

    Loop Leader PD6600 Series Loop-Powered Meters Instruction Manual Noise Filter (FILTER) Disabling Password Protection The noise filter is available for unusually noisy signals To disable password protection, access the Password that cause an unstable process variable display. The menu and clear the entered password either by press-...
  • Page 35 Loop Leader PD6600 Series Loop-Powered Meters Instruction Manual Function Keys & Digital Input Display Description Available Settings Set the function key or digital input to ALARM . F N acknowledge an alarm Refer to the following table for descriptions of each available function key or digital input setting.
  • Page 36: Changing System Settings (System)

    Loop Leader PD6600 Series Loop-Powered Meters Instruction Manual Enabling the Function Key Hint Resetting the Meter to Factory Feature (HINT) Defaults (DEFAULT) Enabling the function key hint feature will cause a hint When the parameters have been changed in a way message to be displayed when pressing the F1, F2, that is difficult to determine what’s happening, it might...
  • Page 37 Loop Leader PD6600 Series Loop-Powered Meters Instruction Manual Viewing System Information (INFO) System information, such as software number, The Internal Calibration menu is part of the Advanced software version, model number, and system tag, menu. Internal Calibration is performed as follows: may be viewed in the INFO menu.
  • Page 38: Meter Operation

    Loop Leader PD6600 Series Loop-Powered Meters Instruction Manual Meter Operation Function Keys Operation The meter is capable of accepting a 4-20 mA current During operation, the programmable function keys signal and displaying it in engineering units from operate according to the way they have been pro- -9999 to 99999 on the top line or from -9,999,999 to grammed in the Advanced Features –...
  • Page 39: Runtime & Cycle Count (Info)

    Loop Leader PD6600 Series Loop-Powered Meters Instruction Manual Runtime & Cycle Count (INFO) The relay information menu shows runtime and cycle count for each relay. These values may be cleared at any time by selecting the Clear option (CLEAR?). If...
  • Page 40: Troubleshooting

    Loop Leader PD6600 Series Loop-Powered Meters Instruction Manual Troubleshooting Determining Software Version This product is a highly sophisticated instrument with To determine the software version of a meter: an extensive list of features and capabilities. If the Press the Menu button to enter Program- front panel buttons are used to program the meter, it ming Mode.
  • Page 41: Factory Default Settings

    Loop Leader PD6600 Series Loop-Powered Meters Instruction Manual Factory Default Settings Parameter Display Default Setting The following table shows the factory setting for most Pump Ctrl Off 60.00 of the programmable parameters on the meter. Pump Ctrl On 0 seconds...
  • Page 42: Troubleshooting Tips

    Loop Leader PD6600 Series Loop-Powered Meters Instruction Manual Troubleshooting Tips Symptom Check/Action Note: Certain sequences of events can cause unexpected Check that the 4-20 mA current No display at all results. To solve these issues, it is best to start fresh from loop is providing at least 3.5 mA...
  • Page 43: Eu Declaration Of Conformity

    ATEX Quality Assurance Notification No.: SIRA 10 ATEX M462 ATEX Notified Body for Quality Assurance: CSA Group Netherlands B.V., NB 2813 Utrechtseweg 310 6812 AR, Arnhem, Netherlands Signed for and on behalf of Precision Digital Corporation: Name: Jeffrey Peters Company: Precision Digital Corporation Title:...
  • Page 44 Loop Leader PD6600 Series Loop-Powered Meters Instruction Manual Contact Precision Digital Technical Support Call: (800) 610-5239 or (508) 655-7300 Fax: (508) 655-8990 Email: support@predig.com Sales Support Call: (800) 343-1001 or (508) 655-7300 Fax: (508) 655-8990 Email: sales@predig.com Place Orders Email: orders@predig.com For the latest version of this manual please visit www.predig.com...
