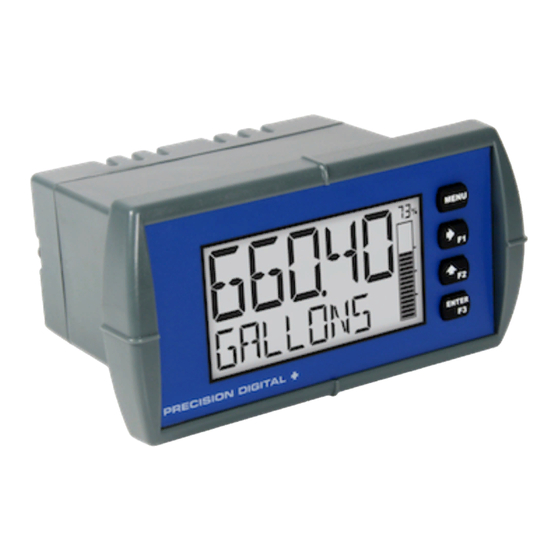

Precision Digital Corporation PD6600 Series Instruction Manual

PD6600 Series ATEX and IECEx Certified, UL/C-UL Listed
Loop-powered Meter Intrinsic Safety Control Drawing
SECTION AGENCy
1.0
2.0 ATEX and IECEx
3.0 UL/C-UL
4.0 ATEX and IECEx,
UL/C-UL
Note: this is aN aGeNCY CoNtRoLLeD DoCUMeNt
No ChaNGes CaN Be MaDe WithoUt PRioR aPPRoVaL.
1.0 SAFETY INFORMATION
1.1 Read complete instructions prior to installation and operation of
the meter.
1.2 Installation and service should be performed only by trained service
personnel.
1.3 Substitution of components may impair hazardous location safety.
1.4 Service requiring replacement of internal components must be
performed at the factory.
1.5 Equipment contains non-metallic materials and therefore special
care and consideration should be made to the performance of these
materials with respect to chemicals which may be present in a
hazardous environment.
1.6 PD6600 series indicator does not add capacitance or inductance to
loop under normal or fault conditions.
1.7 Hazardous location installation instructions for associated apparatus
(barrier) must also be followed when installing this equipment.

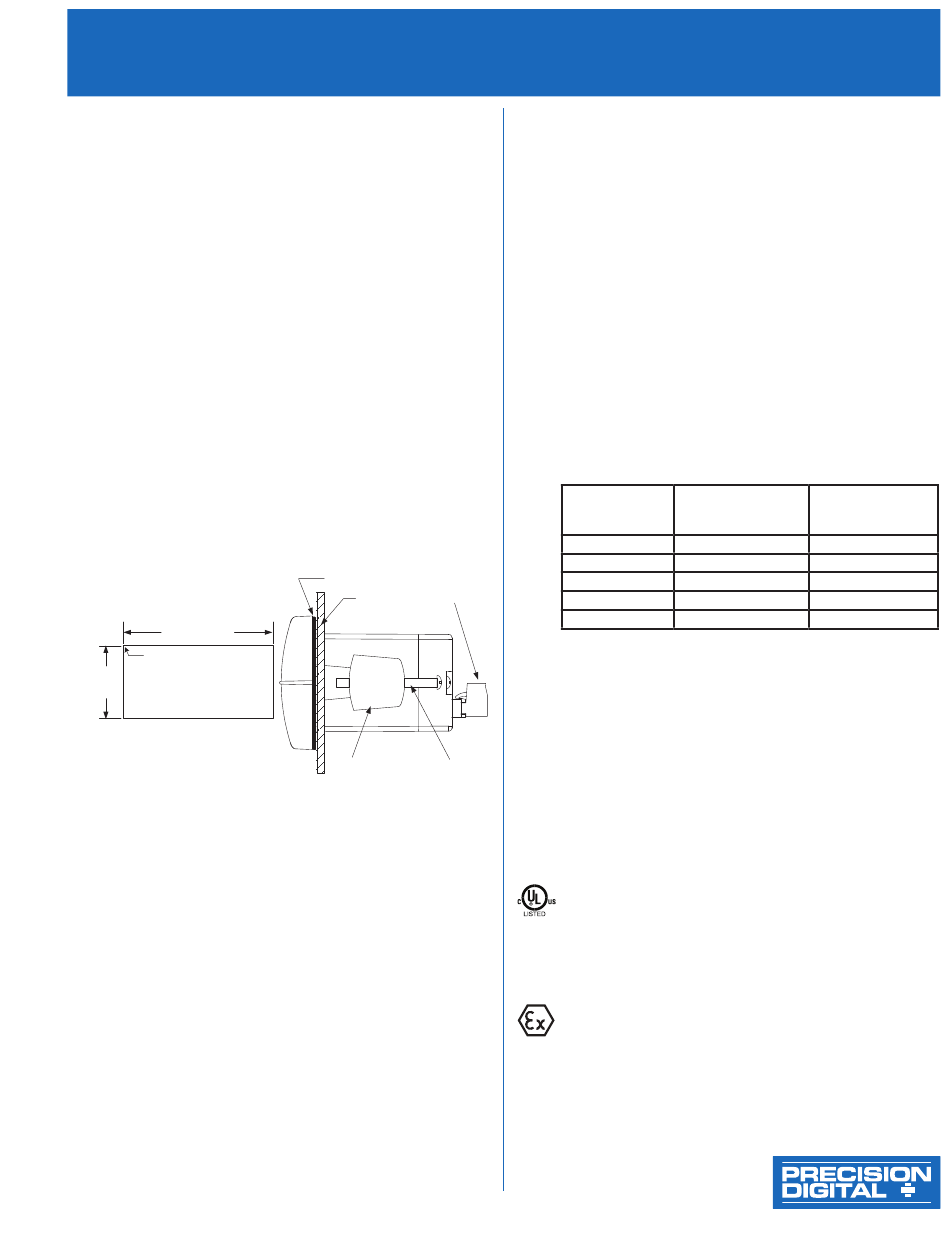

Panel Mounting
A
3.622" (92mm)
Square Corners to 0.060"
(1.5mm) Max Radius
1.772"
B
Panel Cutout
(45mm)
to DIN 43700
Tolerances:
A: +0.032 (+0.8mm)
-0.000 (-0.0mm)
B: +0.024 (+0.6mm)
-0.000 (-0.0mm)
2.0 ATEX AND IECEx SPECIAL CONDITIONS FOR SAFE USE
The following conditions relate to safe installation and/or use of
the equipment.
2.1 For European Community: The PD6600 must be installed in
accordance with the Essential Health & Safety Requirements of
Directive 2014/34/EU, the product certificates CML 17ATEX2015X
and IECEx CML 17.0008X, and the product manual.
Under certain extreme circumstances, the non-metallic parts
2.2
incorporated in the enclosure of this equipment may generate
an ignition-capable level of electrostatic charge. Therefore the
equipment shall not be installed in a location where the external
conditions are conducive to the build-up of electrostatic charge
on such surfaces. This is particularly important if the equipment is
installed in a zone 0 location. In addition, the equipment shall only
be cleaned with a damp cloth.
2.3 The equipment shall be installed in an enclosure which provides a
minimum degree of protection of IP20 for the equipment connections.
2.4 The equipment loop/power port shall be connected to an intrinsically
safe barrier with Uo ≥ 11V.
2.5 Entity parameters must meet the following requirements:
Ui = 30 V, Ii = 175 mA, Ci = 0 μF, Li = 0 μH, Pi = 1.0 W
For ATEX Certification, barrier and transmitter must be ATEX
2.6
Certified with Entity Parameters and must be connected per
manufacturer's instructions.
Precision Digital corPoration
DESCRIPTION
Safety Information
Special Conditions for Safe Use
Special Conditions for Safe Use
Hazardous Area Approvals
Gasket
Removable
Connector
Panel
Mounting Mounting
Bracket Screw
3.0 UL/C-UL SPECIAL CONDITIONS FOR SAFE USE
Associated apparatus may be in a Division 2 or Zone location
3.1
if so approved.
3.2 For North American Community: Installation and service of this
device and/or associated apparatus (barrier) should be performed
only by trained service personnel, and must be installed in
accordance with the manufacturer's control drawing, Article 504 of
the National Electric Code (ANSI/NFPA 70) for installation in the
United States, or Section 18 of the Canadian Electrical Code for
installations in Canada.
Under certain extreme circumstances, the non-metallic parts
3.3
incorporated in the enclosure of this equipment may generate
an ignition-capable level of electrostatic charge. Therefore the
equipment shall not be installed in a location where the external
conditions are conducive to the build-up of electrostatic charge
on such surfaces. This is particularly important if the equipment
is installed in a zone 0 location. In addition, the equipment shall
only be cleaned with a damp cloth.
3.4 The equipment shall be installed in a tool secured enclosure
which provides a minimum degree of protection of IP20 for the
equipment connections.
3.5 Entity parameters must meet the following requirements:
Ui = 30 V, Ii = 175 mA, Ci = 0 μF, Li = 0 μH, Pi = 1.0 W
I.S. Equipment Required Relationship
Entity Parameters
V max (or Ui)
I max (or Ii)
P max, Pi
Ci + Ccable
Li + Lcable
For Division 2 and Zone 2 Applications: Division 2 and Zone
3.6
2 installations do NOT require the use of an intrinsically-safe
barrier or intrinsically-safe entity parameters. Class I, Division
2, Groups A, B, C, and D T4 and Class I, Zone 2, Group IIC
T4, -40C <= Ta <= +70C.
WARNING – EXPLOSION HAZARD – Do not disconnect
equipment unless power has been removed or the area is
known to be non-hazardous
AVERTISSEMENT - RISQUE D'EXPLOSION. NE PAS
BRANCHER NI DÉBRANCHER SOUS TENSION
Ratings: V = 30 V dc, I = 30 mA
Relay Ratings: 250V ac/dc 1A
4.0 HAzARDOUS AREA APPROvALS
Class I, Division 1, Groups A, B, C and D T4
Class I, Division 2, Groups A, B, C and D T4
Ex ia IIC T4 (Canada); Class I Zone 0, Zone 1,
E494837
AEx ia IIC T4 (U.S.)
Class I Zone 2, Group IIC T4 (U.S.)
PROCESS CONTROL EQUIPMENT FOR USE IN
HAZARDOUS LOCATIONS
II 1G
Ex ia IIC T4 Ga
Ta = -40°C to +70°C
I.S. Barrier
Between Entity Entity Parameters
Parameters
≥ Voc or Vt (or Uo)
≥
Isc or It (or Io)
≥
Po
≤ Ca (or Co)
≤ La (or Lo)
www.predig.com
