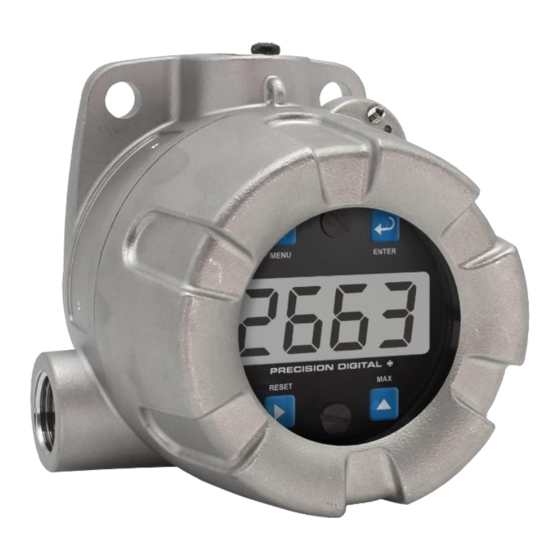

PD663-SS Explosion-Proof Loop-Powered Meter
Instruction Manual
•
CSA Certified Stainless Steel Explosion-Proof Loop-Powered Meter
•
4-20 mA Input with ±0.05% Accuracy of Calibrated Span
•
1.7 Volt Drop (4.7 Volt Drop with Backlight)
•
Easy Field Scaling in Engineering Units without a Calibrator
•
0.6" (15.2 mm) 3½+ Digits LCD Display; -1999 to 2999
•
Display Mountable at 0°, 90°, 180°, & 270°
•
®
HART
Protocol Transparent
•
Loop-Powered Backlight
•
Operating Temperature Range: -40 to 75°C (-40 to 167°F)
•
Installation Temperature Range: -55 to 75°C (-67 to 167°F)
•
Four Internal Buttons for Easy Field Scaling
•
Max/Min Display
•
Programmable Noise Filter
•
32-Point Linearization & Square Root Extraction
•
Conformal Coated PCBs for Dust & Humidity Protection
•
CSA Certified for Explosion-Proof / Dust-Ignition Proof / Flame-Proof
•
Built-In Flange for Wall or Pipe Mounting
•
Explosion-Proof, IP68, NEMA 4X 316 Stainless Steel Enclosure
•
Two 1/2" NPT or M20 Conduit Openings
•
1.5" U-Bolt Kit & 2" Pipe Mounting Kit Available
•
Stainless Steel Tag Available
•
3-Year Warranty
PRECISION DIGITAL CORPORATION
233 South Street • Hopkinton MA 01748 USA
Tel (800) 343-1001 • Fax (508) 655-8990
www.predig.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Precision Digital Corporation ProtEX PD663-SS
Summary of Contents for Precision Digital Corporation ProtEX PD663-SS
- Page 1 Two 1/2" NPT or M20 Conduit Openings • 1.5" U-Bolt Kit & 2" Pipe Mounting Kit Available • Stainless Steel Tag Available • 3-Year Warranty PRECISION DIGITAL CORPORATION 233 South Street • Hopkinton MA 01748 USA Tel (800) 343-1001 • Fax (508) 655-8990 www.predig.com...
-
Page 2: Table Of Contents
PD663-SS Explosion-Proof Loop-Powered Meter Instruction Manual Table of Contents Introduction ......................4 Ordering Information ..................5 Physical Features ....................6 Great for Cold Temperatures ................ 6 Electronics Module ..................6 Easy Pipe Mounting ..................7 Rotatable Display Module ................7 Tamper-Proof Capability ................ - Page 3 PD663-SS Explosion-Proof Loop-Powered Meter Instruction Manual Table of Figures Figure 1. Enclosure Dimensions – Front View ........... 11 Figure 2. Enclosure Dimensions – Side View ............ 11 Figure 3. Enclosure Dimensions – Top View ............. 11 Figure 4. PD663-SS Meter Assembly, Rear View ..........12 Figure 5.
-
Page 4: Introduction
WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov Limited Warranty Precision Digital Corporation warrants this product against defects in material or workmanship for the specified period under “Specifications” from the date of shipment from the factory. Precision Digital’s liability under this limited warranty shall not exceed the purchase value, repair, or replacement of the defective unit. -
Page 5: Ordering Information
PD663-SS Explosion-Proof Loop-Powered Meter Instruction Manual Ordering Information Model Description Explosion-Proof Stainless Steel Loop-Powered Process PD663-0K0-SS Meter with Backlight and Two 1/2" Conduit Openings Explosion-Proof Stainless Steel Loop-Powered Process PD663-0K0-SS-M20 Meter with Backlight and Two M20 Conduit Openings Accessories Model Description 1/2"... -
Page 6: Physical Features
PD663-SS Explosion-Proof Loop-Powered Meter Instruction Manual Physical Features The ProtEX-Lite PD663-0K0-SS comes with two 1/2" NPT conduit openings and the PD663-0K0-SS-M20 comes with two M20 conduit openings Great for Cold Temperatures Electronics Module The ProtEX-Lite PD663-SS will operate over a The PD663-SS electronics module is housed in a temperature range of -40 to 75°C (-40 to 167°F). -
Page 7: Easy Pipe Mounting
PD663-SS Explosion-Proof Loop-Powered Meter Instruction Manual Easy Pipe Mounting Tamper-Proof Capability The ProtEX-Lite comes with a built-in mounting flange. The instrument can be made tamper-proof by insert- This allows for easy mounting to walls or pipes using ing a wire through the built-in loop on the base of the PDA6631-SS Stainless Steel U-Bolt Kit for a 1.5”... -
Page 8: Accessories
PD663-SS Explosion-Proof Loop-Powered Meter Instruction Manual Accessories PDA-SSTAG Stainless Steel Tag PDA1024-01 24 VDC Power Supply PDA-SSTAG is a laser etched stainless steel tag that can be customized with three lines of text. Each tag comes with a stainless steel wire and lead seal for PDA1024-01 is a DIN rail mounted 1.5 A, easy mounting wherever you need. -
Page 9: Specifications
PD663-SS Explosion-Proof Loop-Powered Meter Instruction Manual Specifications Input Input 4-20 mA Except where noted all specifications apply to operation at +25°C. Accuracy ±0.05% of calibrated span ±1 count General Function Linear (2 to 32 points) or square root Temperature 50 PPM/C from -40 to 75C ambient Display 0.6"... -
Page 10: Electromagnetic Compatibility
PD663-SS Explosion-Proof Loop-Powered Meter Instruction Manual EU Declaration of Conformity Electromagnetic Compatibility Emissions EN 61326 For shipments to the EU and UK, a Declaration of Conform- Safety requirements for measurement, ity was printed and included with the product. For reference, control, and laboratory use –... -
Page 11: Installation
PD663-SS Explosion-Proof Loop-Powered Meter Instruction Manual Installation Dimensions For Installation in USA: The PD663-SS must be All units: inches (mm) installed in accordance with the National Electrical Code (NEC) NFPA 70. For Installation in Canada: Install in accordance with applicable local and national regulations (e.g. -
Page 12: Connections
PD663-SS Explosion-Proof Loop-Powered Meter Instruction Manual Connections Wiring Diagrams Signal input connections are made to a three-terminal To access the connectors, remove the enclosure connector labeled S+|S-|B-. The enclosure also cover and unscrew the two captive stainless steel provides one internal and one external earth screws. -
Page 13: Setup And Programming
PD663-SS Explosion-Proof Loop-Powered Meter Instruction Manual Setup and Programming Setting Numeric Values The numeric values are set using the Right and Up There is no need to recalibrate the meter for milliamps arrow buttons. Press the Right arrow to select next when first received from the factory. -
Page 14: Main Menu Display Functions & Messages
PD663-SS Explosion-Proof Loop-Powered Meter Instruction Manual Main Menu Display Functions & Scaling the Meter (SCL) Messages The meter displays various functions and messages • The input to the meter must be at least 6 mA during setup, programming, and operation. The prior to pressing the Enter button at the following table shows the main menu functions and completion of programming for programming... -
Page 15: Calibrating The Meter (Cal)
PD663-SS Explosion-Proof Loop-Powered Meter Instruction Manual Calibrating the Meter (Cal) Advanced Features Menu To scale the meter without a signal source refer to To simplify the setup process, functions not needed Scaling the Meter (SCL), page 14. for most applications are located in the Advanced features menu. -
Page 16: Signal Input Conditioning Function (Fnc)
PD663-SS Explosion-Proof Loop-Powered Meter Instruction Manual Signal Input Conditioning Internal Calibration (ICal) Function (Fnc) There is no need to recalibrate the meter for milliamps when first received from the factory. The PD663-SS provides linear and square root signal The meter is factory calibrated for milliamps prior input conditioning functions for inputs from linear and to shipment. -
Page 17: Operation
PD663-SS Explosion-Proof Loop-Powered Meter Instruction Manual Operation Maximum & Minimum Readings (HI & LO) Front Panel Buttons Operation The maximum and minimum (peak & valley) readings Button Description reached by the process are stored in the meter since the last reset or power-up. The meter flashes HI or LO Symbol to differentiate between run mode and max/min display. -
Page 18: Reset Meter To Factory Defaults
PD663-SS Explosion-Proof Loop-Powered Meter Instruction Manual Reset Meter to Factory Defaults Factory Defaults & User Settings When the parameters have been changed in a way that is difficult to determine what’s happening, it might The following table shows the factory setting for most be better to start the setup process from the factory of the programmable parameters on the meter. -
Page 19: Troubleshooting
PD663-SS Explosion-Proof Loop-Powered Meter Instruction Manual Quick User Interface Troubleshooting Reference The rugged design and the user-friendly interface of the meter should make it unusual for the installer or operator to refer to this section of the manual. If the Pushbutton Function meter is not working as expected, refer to the... - Page 20 Email: sales@predig.com Place Orders Email: orders@predig.com For the latest version of this manual please visit www.predig.com PRECISION DIGITAL CORPORATION 233 South Street • Hopkinton MA 01748 USA Tel (800) 343-1001 • Fax (508) 655-8990 www.predig.com LIM663-SS_C SFT054 Ver 1.800 & up...
