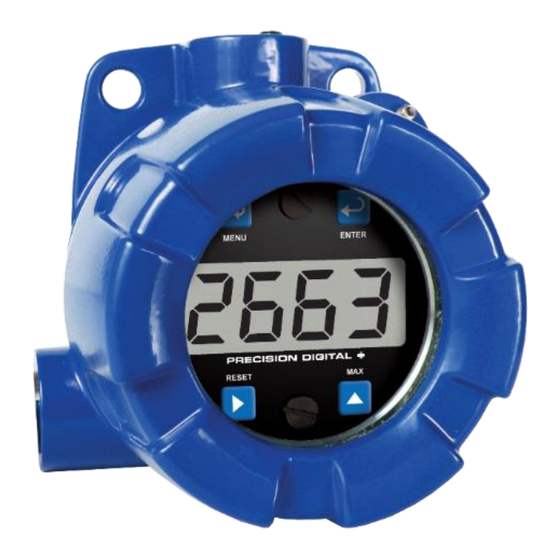

PD663 Explosion-Proof Loop-Powered Meter
Instruction Manual
•
Fully-Approved Explosion-Proof Loop-Powered Meters
•
4-20 mA Input with ±0.05% Accuracy of Calibrated Span
•
1.7 Volt Drop (4.7 Volt Drop with Backlight)
•
Easy Field Scaling in Engineering Units without a Calibrator
•
0.6" (15.2 mm) 3½+ Digits LCD Display; -1999 to 2999
•
Display Mountable at 0°, 90°, 180°, & 270°
•
®
HART
Protocol Transparent
•
Loop-Powered Backlight
•
Operating Temperature Range: -40 to 75°C (-40 to 167°F)
•
Installation Temperature Range: -55 to 75°C (-67 to 167°F)
•
Four Internal Buttons for Easy Field Scaling
•
Max/Min Display
•
Programmable Noise Filter
•
32-Point Linearization & Square Root Extraction
•
Conformal Coated PCBs for Dust & Humidity Protection
•
UL Listed as Explosion-Proof / Dust Ignition-Proof / Flame-Proof
•
CSA Certified as Explosion-Proof / Dust Ignition-Proof / Flame-Proof
•
ATEX and IECEx Certified as Explosion-Proof
•
Built-In Flange for Wall or Pipe Mounting
•
Explosion-Proof, IP68, NEMA 4X Die-Cast Aluminum & Stainless Steel Enclosures
•
Two 1/2" NPT or M20 Conduit Openings
•
1.5" U-Bolt Kit & 2" Pipe Mounting Kit Available
•
Stainless Steel Tag Available
•
3-Year Warranty
PRECISION DIGITAL CORPORATION
233 South Street • Hopkinton MA 01748 USA
Tel (800) 343-1001 • (508) 655-7300
www.predig.com
IECEx
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Precision Digital Corporation PD663
Summary of Contents for Precision Digital Corporation PD663
- Page 1 PD663 Explosion-Proof Loop-Powered Meter Instruction Manual IECEx • Fully-Approved Explosion-Proof Loop-Powered Meters • 4-20 mA Input with ±0.05% Accuracy of Calibrated Span • 1.7 Volt Drop (4.7 Volt Drop with Backlight) • Easy Field Scaling in Engineering Units without a Calibrator •...
-
Page 2: Introduction
Read complete instructions prior to installation • ATEX and IECEx Certified as Explosion-Proof and operation of the meter. The PD663 is easy to install and program and it can be seen in a variety of lighting conditions, even in •... -
Page 3: Ordering Information
PD663 Explosion-Proof Loop-Powered Meter Instruction Manual Ordering Information Model Description Explosion-Proof Aluminum Loop-Powered Process Meter PD663-0K0-00 with Backlight and Two 1/2" Conduit Openings Explosion-Proof Aluminum Loop-Powered Process Meter PD663-0K0-00-M20 with Backlight and Two M20 Conduit Openings Explosion-Proof Stainless Steel Loop-Powered Process... -
Page 4: Table Of Contents
PD663 Explosion-Proof Loop-Powered Meter Instruction Manual Table of Contents Introduction ......................2 Ordering Information ..................3 Physical Features ....................6 Great for Cold Temperatures ................ 6 Electronics Module ..................6 Easy Pipe Mounting ..................7 Rotatable Display Module ................7 Tamper-Proof Capability ................ - Page 5 Figure 2. Enclosure Dimensions – Side View ............ 13 Figure 3. Enclosure Dimensions – Top View ............. 13 Figure 4. PD663 Meter Assembly, Rear View ............. 13 Figure 5. PD663 Input Connections without Backlight ........14 Figure 6. PD663 Input Connections with Backlight ........... 14...
-
Page 6: Physical Features
PD663 Explosion-Proof Loop-Powered Meter Instruction Manual Physical Features The ProtEX-Lite PD663-0K0-00 comes with two 1/2" NPT conduit openings and the PD663-0K0-00-M20 comes with two M20 conduit openings. Great for Cold Temperatures Electronics Module The ProtEX-Lite PD663 will operate over a The PD663 electronics module is housed in a plastic temperature range of -40 to 75°C (-40 to 167°F). -
Page 7: Easy Pipe Mounting
PD663 Explosion-Proof Loop-Powered Meter Instruction Manual Easy Pipe Mounting Tamper-Proof Capability The ProtEX-Lite comes with a built-in mounting flange. The instrument can be made tamper-proof by This allows for easy mounting to walls or pipes using inserting a wire through the built-in loop on the base Stainless Steel U-Bolt Kit for a 1.5”... -
Page 8: Accessories
PDA6863-SS 2" Pipe Mounting Kit PD9502 Low-Cost Signal Generator PDA6863-SS Pipe Mounting Kit provides a convenient way to mount the PD663 to a 2" pipe. PD9502 is a low-cost, compact, simple to use 4-20 mA or 0-10 VDC signal generator. It can easily... -
Page 9: Specifications
PD663 Explosion-Proof Loop-Powered Meter Instruction Manual Specifications Input Except where noted all specifications apply to operation at +25°C. Input 4-20 mA Accuracy ±0.05% of calibrated span ±1 count General Function Linear (2 to 32 points) or square root Display 0.6" (15.2 mm) LCD, 3½+ digits;... -
Page 10: General Compliance Information
Class I, Zone 1, AEx db IIC T6 Gb For European Community: Zone 21, AEx tb IIIC T85°C Db The PD663 must be installed in accordance with the Tamb = -55°C to 75°C ATEX directive 2014/34/EU, the product certificate UL Type 4X, IP66 / IP68 UL File Number: E494837 Sira 10ATEX1116X, and the product manual. -
Page 11: Safety Information
PD663 Explosion-Proof Loop-Powered Meter Instruction Manual Safety Information • Read complete instructions prior to installation and operation of the annunciator. • Risk of electric shock or personal injury. • Hazardous voltages exist within enclosure. • Do not open when an explosive atmosphere is present. -
Page 12: Unpacking
Unpacking The PD663 can be mounted to a 2" pipe by using the Remove the meter from box. Inspect the packaging PDA6863-SS pipe mounting kit or to a 1.5" pipe using and contents for damage. -
Page 13: Dimensions
If the meter is installed in a high voltage environment and a fault or installation error occurs, high voltage may be present on any Figure 2. Enclosure Dimensions – Side View lead or terminal. Figure 3. Enclosure Dimensions – Top View Figure 4. PD663 Meter Assembly, Rear View... -
Page 14: Wiring Diagrams
4.7 V. The backlight is recommended for dim lighting conditions and is enabled when wired as shown in Figure 6. lass 2 Po er Supply Figure 5. PD663 Input Connections without Backlight lass 2 Po er Supply Figure 6. PD663 Input Connections with Backlight... -
Page 15: Setup And Programming
PD663 Explosion-Proof Loop-Powered Meter Instruction Manual Setup and Programming Setting Numeric Values The numeric values are set using the Right and Up There is no need to recalibrate the meter for milliamps arrow buttons. Press the Right arrow to select next when first received from the factory. -
Page 16: Main Menu Display Functions & Messages
PD663 Explosion-Proof Loop-Powered Meter Instruction Manual Main Menu Display Functions & Scaling the Meter (SCL) Messages The meter displays various functions and messages • The input to the meter must be at least 6 mA during setup, programming, and operation. The... -
Page 17: Calibrating The Meter (Cal)
PD663 Explosion-Proof Loop-Powered Meter Instruction Manual Calibrating the Meter (Cal) Advanced Features Menu To scale the meter without a signal source refer to To simplify the setup process, functions not needed Scaling the Meter (SCL), page 16. for most applications are located in the Advanced features menu. -
Page 18: Signal Input Conditioning Function (Fnc)
There is no need to recalibrate the meter for milliamps when first received from the factory. The PD663 provides linear and square root signal The meter is factory calibrated for milliamps prior input conditioning functions for inputs from linear and to shipment. -
Page 19: Operation
PD663 Explosion-Proof Loop-Powered Meter Instruction Manual Operation Maximum & Minimum Readings (HI & LO) Front Panel Buttons Operation The maximum and minimum (peak & valley) readings Button Description reached by the process are stored in the meter since the last reset or power-up. The meter flashes HI or LO... -
Page 20: Reset Meter To Factory Defaults
PD663 Explosion-Proof Loop-Powered Meter Instruction Manual Reset Meter to Factory Defaults Factory Defaults & User Settings When the parameters have been changed in a way that is difficult to determine hat’s happening, it might The following table shows the factory setting for most be better to start the setup process from the factory of the programmable parameters on the meter. -
Page 21: Troubleshooting
PD663 Explosion-Proof Loop-Powered Meter Instruction Manual Troubleshooting Quick User Interface Reference The rugged design and the user-friendly interface of the meter should make it unusual for the installer or operator to refer to this section of the manual. If the... - Page 22 PD663 Explosion-Proof Loop-Powered Meter Instruction Manual Contact Precision Digital Technical Support Call: (800) 610-5239 or (508) 655-7300 Email: support@predig.com Sales Support Call: (800) 343-1001 or (508) 655-7300 Email: sales@predig.com Place Orders Email: orders@predig.com For the latest version of this manual please visit www.predig.com...
