Instruction Manual

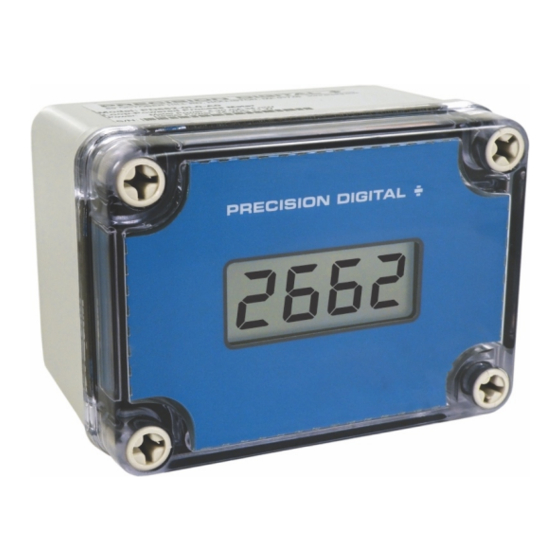

PD662 General Purpose NEMA 4X, IP66
Loop-Powered Meter Instruction Manual
• NEMA 4X, IP66 Loop-Powered Field-Mount Process Meter
• 4-20 mA Input
• 0.6" (15.2 mm) 3½+ Digits LCD Display; -1999 to 2999
• 1.7 Volt Drop (3.7 Volt Drop with Backlight)
®
• HART
Protocol Transparent
• Loop-Powered Backlight Option
• CSA Certified for -40 to 75°C (-40 to 167°F) Operation
• Four Internal Buttons for Easy Field Scaling
• Max/Min Display
• Programmable noise filter
• 32-Point and Square Root Linearization Functions
• Plastic NEMA 4X, IP66 Enclosure
• Conformal Coated PCBs for Dust and Humidity Protection
• One ½" Conduit Hole in Rear of Enclosure
• Pipe & Panel Mounting Kits
• Stainless Steel Tag Available
PRECISION DIGITAL CORPORATION
233 South Street • Hopkinton MA 01748 USA
Tel (800) 343-1001 • Fax (508) 655-8990
C
US
Process Meter
www.predig.com
Advertisement
Table of Contents
Related Manuals for Precision Digital Corporation Survivor PD662
Summary of Contents for Precision Digital Corporation Survivor PD662
- Page 1 • Conformal Coated PCBs for Dust and Humidity Protection • One ½" Conduit Hole in Rear of Enclosure • Pipe & Panel Mounting Kits • Stainless Steel Tag Available PRECISION DIGITAL CORPORATION 233 South Street • Hopkinton MA 01748 USA Tel (800) 343-1001 • Fax (508) 655-8990 www.predig.com...
-
Page 2: Introduction
Precision Digital’s liability under this limited warranty shall not exceed the purchase value, repair, or replacement of the defective unit. Registered Trademarks All trademarks mentioned in this document are the property of their respective owners. © 2018 Precision Digital Corporation. All rights reserved. www.predig.com... -
Page 3: Table Of Contents
PD662 General Purpose NEMA 4X, IP68 Loop-Powered Instruction Manual Table of Contents Table of Figures Figure 1. PD662 Mounting Board Rear View ..6 INTRODUCTION ---------------------------- 2 Figure 2. PD662 Input Connections without ORDERING INFORMATION ------------- 2 Backlight ............6 Figure 3. -
Page 4: Specifications
PD662 General Purpose NEMA 4X, IP68 Loop-Powered Meter Instruction Manual Specifications Input Except where noted all specifications apply to ACCURACY ±1 count operation at +25 FUNCTION Linear (2 to 32 points) or square root General TEMPERATURE 50 PPM/°C from -40 to 85°C ambient DRIFT DISPLAY 0.6"... -
Page 5: Electromagnetic Compatibility
PD662 General Purpose NEMA 4X, IP68 Loop-Powered Instruction Manual Electromagnetic Compatibility Installation All pushbuttons and wiring connectors are EN 61326-1:2013 accessed by opening the NEMA 4X enclo- Emissions EMC requirements for sure by removing the 4 captive screws that & Immunity Electrical equipment for secure the cover. -
Page 6: Pd662 Connections
PD662 General Purpose NEMA 4X, IP68 Loop-Powered Meter Instruction Manual Connection & Wiring Diagrams Connections Signal input connections are made to a three- Disconnect power before terminal connector labeled S+|S-|X for models opening the unit. without a backlight and S+|S-|B- for models with a backlight. -
Page 7: Setting Numeric Values
PD662 General Purpose NEMA 4X, IP68 Loop-Powered Instruction Manual Front Panel Buttons Programming the Meter It is very important to read the following information, before proceeding to program the ENTER MENU meter: • There is no need to recalibrate the meter for milliamps when first received from the 2662 factory. -
Page 8: Main Menu Display Functions & Messages
PD662 General Purpose NEMA 4X, IP68 Loop-Powered Meter Instruction Manual Setting the Decimal Point ( dP ) Main Menu Display Functions & Messages Decimal point may be set with up to three decimal places or with no decimal point at all. The meter displays various functions and Pressing the Right or Up arrow moves the messages during setup, programming, and... -
Page 9: Calibrating The Meter (Cal)
PD662 General Purpose NEMA 4X, IP68 Loop-Powered Instruction Manual Minimum Input Span Recalibrating the Internal Calibration Reference ( Ical ) The minimum input span is the minimum difference between input 1 and input 2 signals The Internal Calibration (ICAL) menu, located in required to complete the calibration or scaling of the Advanced Features menu, is used to the meter. -
Page 10: Signal Input Conditioning Function (Fnc)
PD662 General Purpose NEMA 4X, IP68 Loop-Powered Meter Instruction Manual Signal Input Conditioning Function Advanced Features Menu & Display Messages ( Fnc ) The following table shows the Advanced The PD662 provides linear and square root features menu functions and messages in the signal input conditioning functions for inputs order they appear in the menu. -
Page 11: Internal Calibration (Ical)
PD662 General Purpose NEMA 4X, IP68 Loop-Powered Instruction Manual Internal Calibration ( ICal ) Operation Front Panel Buttons Operation • There is no need to recalibrate the meter for milliamps when first received Button Description from the factory. Symbol • The meter is factory calibrated for Press to enter or exit milliamps prior to shipment. -
Page 12: Maximum & Minimum Readings ( Hi & Lo )
PD662 General Purpose NEMA 4X, IP68 Loop-Powered Meter Instruction Manual Maximum & Minimum Readings Reset Meter to Factory Defaults ( HI & LO ) When the parameters have been changed in a way that is difficult to determine what’s The maximum and minimum (peak & valley) happening, it might be better to start the setup readings reached by the process are stored in the process from the factory defaults. -
Page 13: Factory Defaults & User Settings
PD662 General Purpose NEMA 4X, IP68 Loop-Powered Instruction Manual Factory Defaults & User Mounting Dimensions Settings The following table shows the factory setting for most of the programmable parameters on the meter. Next to the factory setting, the user may record the new setting for the particular application. -
Page 14: Troubleshooting
PD662 General Purpose NEMA 4X, IP68 Loop-Powered Meter Instruction Manual Troubleshooting Due to the many features and functions of the meter, it’s possible that the setup of the meter does not agree with what an operator expects to see. If the meter is not working as expected, refer to the recommendations described below. -
Page 15: Quick User Interface Reference Guide
PD662 General Purpose NEMA 4X, IP68 Loop-Powered Meter Instruction Manual Quick User Interface Reference Guide Pushbutton Function Menu Go to Programming Mode, leave Programming Mode, and Max/Min Mode. Hold for 5 seconds to access Advanced Features. Right Arrow Move to next digit or decimal point position. Reset Min/Max. Up Arrow Move to next selection or increment digit. - Page 16 PD662 General Purpose NEMA 4X, IP68 Loop-Powered Meter Instruction Manual This page intentionally left blank...
-
Page 17: Eu Declaration Of Conformity
EN 61010-1:2010, and EN 61326:2013 and there were no major technical changes affecting the latest technical knowledge for the products listed above. Product Markings: Signed for and on behalf of Precision Digital Corporation: Name: Jeffrey Peters Company: Precision Digital Corporation... - Page 18 Call: (800) 343-1001 or (508) 655-7300 Fax: (508) 655-8990 Email: sales@predig.com • For the latest version of this manual please visit www.predig.com PRECISION DIGITAL CORPORATION 233 South Street • Hopkinton MA 01748 USA Tel (800) 343-1001 • Fax (508) 655-8990 www.predig.com LIM662_I SFT054 Ver 1.800 &...
