pd6600 series
Loop Leader Loop-powered process Meter

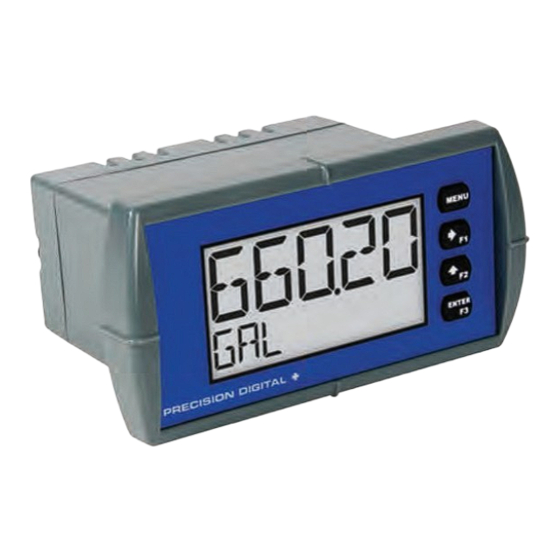

pd6602/6 decimal display
Iecex
pd6606 & pd6607, pd6608 only
•
4-20 mA Input
•
Loop-powered process Meter
•
1.5 Volt drop (4.7 Volt drop with Backlight)
•
Loop-powered Backlight with red Backlight for Alarm conditions
•
NeMA 4X, Ip65 Front
•
-40 to 167°F (-40 to 75°c) safe Area operating Temperature range
•
Free pc-Based UsB programming software
•
5-digit Alphanumeric Top Line
•
8-digit Alphanumeric Bottom Line
•
displays Level in Feet & Inches up to 999 Feet, 11 & 15/16 Inches
•
20-segment Bargraph with Numeric percent Indication
•
conformal coated pcBs for dust & Humidity protection
•
Two open collector outputs standard
•
optional Loop-powered solid-state relays
•
optional 4-20 mA Analog output
•
relay pump Alternation Based on Level and runtime
•
display relay runtime and cycle count
•
UL & c-UL 61010 Listed for electrical safety
•
UL & c-UL Listed as Intrinsically safe and Nonincendive
•
ATeX and Iecex certified as Intrinsically safe
Precision Digital corPoration
pd6603/7 Feet & Inches display
pd6604/8 decimal display with Bargraph
Loop-powered process
www.predig.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Precision Digital Corporation Loop Leader PD6602/6
Summary of Contents for Precision Digital Corporation Loop Leader PD6602/6
- Page 1 Alternation Based on Level and runtime • display relay runtime and cycle count • UL & c-UL 61010 Listed for electrical safety • UL & c-UL Listed as Intrinsically safe and Nonincendive • ATeX and Iecex certified as Intrinsically safe www.predig.com Precision Digital corPoration...
- Page 2 pd6600 series Loop Leader Loop-powered process Meter pd6602/6 process Meter with decimal display NEMA 4X, IP65 Front PV, Max (Peak), Dual-Line LCD with Min (Valley) 5-Digit Alphanumeric Top Line and 8-Digit Alphanumeric Bottom Line Front Panel Buttons for Setup, Preprogrammed Programming, and or Custom Operation...
-
Page 3: Display Features
pd6600 series Loop Leader Loop-powered process Meter pd6603/7 Feet & Inches Level NEMA 4X, IP65 Front Meter with Bargraph Feet & Inches Five (5) 0.7" Large Designation Digits on Top Line in Feet & Inches Front Panel 8-Digit Alphanumeric Buttons for Setup, Bottom Line for Tag Programming, and or Dual Scale... - Page 4 pd6600 series Loop Leader Loop-powered process Meter oUTpUTs Bargraph provides Quick Understanding To help users get a quick understanding of where their process is Loop Leaders are available with two open collector outputs as at, certain Loop Leader models are available with a 20-segment bar- standard and two solid state relays and 4-20 mA output as options.
-
Page 5: Pump Control
pd6600 series Loop Leader Loop-powered process Meter Timer Function Application pump Alternation Application The Loop Leader can be used as a pump controller to alternate Application Timers are used in everyday life; one of the most common two pumps and provide high and low level alarm indication. The examples is the microwave oven. - Page 6 pd6600 series Loop Leader Loop-powered process Meter sIGNAL INpUT coNdITIoNING Loop-powered Isolator for General purpose & Hazardous Areas To satisfy applications that require scaling in ways other than the usual 2-point linear method, the Loop Leader can also be scaled for The Loop Leader can be used as a loop-powered isolator for the square root (DP flow), programmable exponent (open channel flow) 4-20 mA signal in both general purpose and hazardous areas with...
-
Page 7: Mounting Dimensions
pd6600 series Loop Leader Loop-powered process Meter MoUNTING dIMeNsIoNs safe Area Input Loop (4-20 mA) connections The following figures show a 4-20 mA loop connected to the meter. Units: Inch (mm) 1.76" The first figure shows the connection without the backlight and (45mm) the second shows the connection with the backlight. -
Page 8: Specifications
pd6600 series Loop Leader Loop-powered process Meter safe Area open collector outputs specIFIcATIoNs Open collector output 1 and 2 connections are made to terminals Except where noted all specifications apply to operation at +25°C. Input labeled O1+ and O1-, and O2+ and O2-. Connect the alarm or pulse input device as shown below. -
Page 9: Common Open Collector & Relay (Alarm) Specifications
pd6600 series Loop Leader Loop-powered process Meter Approvals (select Models) common open collector & relay (Alarm) Specifications ATeX: II 1G, Ex ia IIC T4 Ga, Ta = -40°C to +70°C Certificate number: CML 17ATEX2015X High or Low Alarm: User programmable for high or low alarm Iecex: Ex ia IIC T4 Ga, Tamb = -40°C to +70°C Alarm deadband: 0-100% FS, user programmable Certificate number: IECEx CML 17.0008X... - Page 10 pd6600 series Loop Leader Loop-powered process Meter Free sIMpLe To Use MeTerVIew XL proGrAMMING soFTwAre Free, PC-based, MeterView XL software that connects to the meter via a micro USB cable is available for programming and setup of the meters. This software greatly simplifies the programming process and also allows the user to save configuration files for later use.
-
Page 11: Ordering Information
The information contained in this document is subject to change without notice. Precision Digital Corporation makes no representations or warranties with respect to the contents hereof, and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose. ©2018 Precision Digital Corporation. All rights reserved. LDS6602_F 04/18 Precision Digital corPoration www.predig.com... - Page 12 • Display Rate & Total Simultaneously • Loop-Powered Backlight with Red Backlight for Alarm Conditions • NEMA 4X, IP65 Front • -40 to 167°F (-40 to 75°C) Safe Area Operating Temperature Range • Free PC-Based USB Programming Software • 5-Digit Alphanumeric Top Line • 8-Digit Alphanumeric Bottom Line • 8-Digit Total & Grand Total Display, Up to 13 Digits Using Both Lines • 20-Segment Bargraph with Numeric Percent Indication • Conformal Coated PCBs for Dust & Humidity Protection • Two Open Collector Outputs Standard • Dual-Line Display • 1/8 DIN Shallow Depth Case • Optional Loop-Powered Solid-State Relays • Optional 4-20 mA Analog Output • UL & C-UL 61010 Listed for Electrical Safety • UL & C-UL Listed as Intrinsically Safe and Nonincendive • ATEX and IECEx Certified as Intrinsically Safe www.predig.com Precision Digital corPoration...
- Page 13 PD6620 Series Loop Leader Loop-Powered Rate/Totalizers 8-Digit Five (5) 0.7" Large Digits NEMA 4X, Alphanumeric on Top Line for Rate IP65 Front Bottom Line for Total, Grand Total, Bargraph Numeric and Predefined or Percent Indication Custom Units 8-Digit Total Front Panel includes Commas Buttons for Setup, for Easier Reading Programming, and...
- Page 14 PD6620 Series Loop Leader Loop-Powered Rate/Totalizers Display Flow Total and Toggle Between Units & Tag Bargraph Provides Quick Understanding To help users get a quick understanding of where their process is at, certain Loop Leader models are available with a 20-segment bargraph. This bargraph also includes a numeric value of the percentage the bargraph represents. The bargraph can be programmed to represent either the rate or total or it can be disabled.
- Page 15 PD6620 Series Loop Leader Loop-Powered Rate/Totalizers Predefined and Custom Units Sampling Relay The meter has six available preprogrammed unit classes, volume, A relay set to sample will trigger when the total or grand total value height, temperature, pressure, weight, and rate. When the desired has incremented by a programmed amount. The relay can be unit class or unit of measure within a class is not available, a custom programmed to stay on for a specified amount of time.
-
Page 16: Batch Control
PD6620 Series Loop Leader Loop-Powered Rate/Totalizers BATCH CONTROL The Loop Leader, when ordered with the two solid state relays, can be used as a simple, one or two-stage batch controller. The user enters a preset and preclose value and sets the Loop Leader to either count up or count down. The top display will show the total and the bottom display will show the preset batch amount. - Page 17 PD6620 Series Loop Leader Loop-Powered Rate/Totalizers TOTALIZER CAPABILITIES EASY PROGRAMMING AND SETUP Loop Leaders can be programmed and setup either by using the Loop Leader flow rate/totalizers can be programmed for a wide front panel buttons or free, PC-based software with USB interface. variety of totalizer applications. They can display total, grand total, or Front Panel Buttons for Easy Setup, non-resettable grand total;...
- Page 18 PD6620 Series Loop Leader Loop-Powered Rate/Totalizers APPLICATIONS Differential Pressure Flow The Loop Leader can display flow rate and total by extracting the The Loop Leader, in combination with an ultrasonic level transmitter, square root from the 4-20 mA signal from a differential pressure makes for an economical way to measure and display open channel transmitter.
-
Page 19: Connectors Labeling
PD6620 Series Loop Leader Loop-Powered Rate/Totalizers MOUNTING DIMENSIONS Safe Area Input Loop (4-20 mA) Connections The following figures show a 4-20 mA loop connected to the meter. Units: Inch (mm) 1.76" The first figure shows the connection without the backlight and (45mm) the second shows the connection with the backlight. The meter is powered by the 4-20 mA current loop. - Page 20 PD6620 Series Loop Leader Loop-Powered Rate/Totalizers Safe Area Open Collector Outputs Alarm Message: On or Off; user programmable, 8 characters maximum. Displayed every 10 seconds for 1 second on bottom line. Open collector output 1 and 2 Display Update Rate: Ambient > -10°C: 1 update/second Internal Internal connections are made to Ambient = -20°C: 1 update/2 seconds terminals labeled O1+ and O1-, From -20°C to -40°C the update rate slows down 1 second for every...
- Page 21 PD6620 Series Loop Leader Loop-Powered Rate/Totalizers Rate/Totalizer Solid State Relays Rate Display Capability: Top display: -9999 to 99999; bottom Rating: Resistive Load: 250 VAC/DC @ 1 A display: -9,999,999 to 99,999,999 (with commas) Inductive Load: 75 VA @ 0.6 A, 250 VAC/DC max (Safe Area only) Total & Grand Total Display Capability: Top display: -9999 to Noise Suppression: Metal oxide varistors across outputs Relay Assignment: Alarm, Sample, Timer, Batch, Stopwatch on/off, 99999;...
- Page 22 PD6620 Series Loop Leader Loop-Powered Rate/Totalizers FREE SIMPLE TO USE METERVIEw XL PROGRAMMING SOFTwARE Free, PC-based, MeterView XL software that connects to the meter via a micro USB cable is available for programming and setup of the meters. This software greatly simplifies the programming process and also allows the user to save configuration files for later use. The meter will also be powered by the USB connection so no additional power is needed during programming.
- Page 23 The information contained in this document is subject to change without notice. Precision Digital Corporation makes no representations or warranties with respect to the contents hereof, and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose. ©2018 Precision Digital Corporation. All rights reserved. LDS6622_F 04/18 Precision Digital corPoration www.predig.com...
