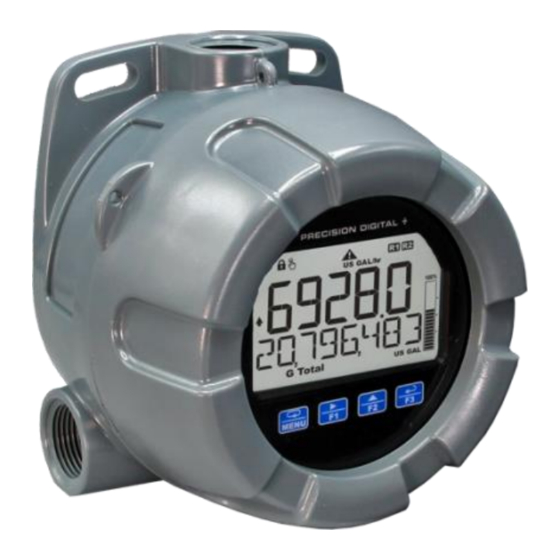

PD6928 Loop-Powered
Instruction Manual
Loop-Powered Field-Mount Flow Rate/Totalizers
4-20 mA Input Displayed with ±0.02% of Full-Scale Accuracy
1.5 Volt Drop (4.7 Volt Drop with Backlight)
0.7" (17.0 mm) 5 Alphanumeric Characters Top Display
0.4" (10.2 mm) 8 Alphanumeric Characters Bottom Display
20-Segment Bargraph Standard
Display Mountable at 0°, 90°, 180°, & 270°
CapTouch Through-Window Button Programming with Normal and Delayed Modes
Loop-Powered Backlight with Red Backlight for Alarm Conditions
8-Digit Total & Grand Total Display, Up to 13 Digits Using Both Lines
Display Rate & Total Simultaneously
Automatic or Manual Batch Control
Display Open Channel Flow with Programmable Exponent Feature
32-Point Linearization & Square Root Extraction
(2) Open Collector Outputs Standard; Assignable to Pulse, Alarm, Timer, or Stopwatch
(2) Optional Loop-Powered Solid-State Relays; Assignable to Alarm, Control, Timer, or Stopwatch
Stopwatch & Timer Functions to Drive Relays & Open Collectors
Optional Isolated 4-20 mA Analog Output
Display Relay Runtime & Cycle Count via Relay Info Menu
Free PC-Based MeterView XL USB Programming Software
®
HART
Protocol Transparent
Enable and Disable Backlight from Menu
Operating Temperature Range: -40 to 75°C (-40 to 167°F)
Conformal Coated PCBs for Dust & Humidity Protection
Password Protection
Flange for Wall or Pipe Mounting; Loop for Stainless Steel Tag; Holes for Tamper-Proof Seal
Plastic NEMA 4X, IP66 Enclosure
Three 3/4" NPT Threaded Conduit Openings (Two Plugs Installed)
3-Year Warranty
