- Page 1 KIT INSTRUCTIONS Biometrics with Biokey with UV Light Release 1.0 9700-0009-7761 Issue A...
- Page 2 NCR, therefore, reserves the right to change specifications without prior notice. All features, functions, and operations described herein may not be marketed by NCR in all parts of the world. In some instances, photographs are of equipment prototypes. Therefore, before using this document, consult with your NCR representative or NCR office for information that is applicable and current.
- Page 3 Revision Record Issue Date Remarks Aug 2016 First Issue...

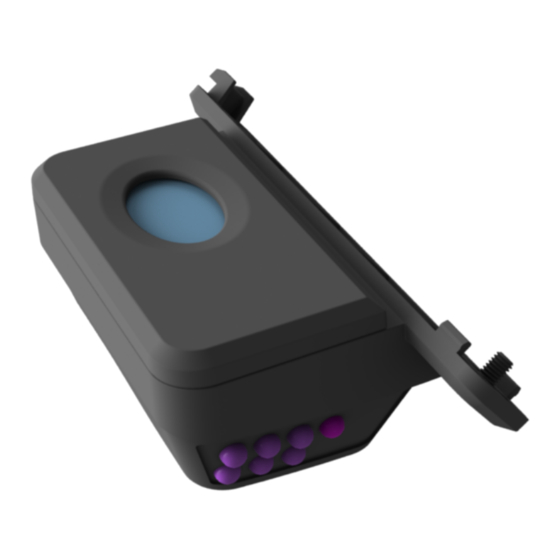

- Page 4 Biometrics with Biokey with UV Light Introduction This kit provides the components to add a Biometrics with Biokey with UV Light. Caution: Avoid looking directly at UV lights.
- Page 5 9700-0009-7761 (Biometrics with Biokey with UV Light) Installation Procedure 1. Remove the Blank Plate, if any, from the rear housing. 2. Disengage the UV Light from the biometrics. a. Remove the screws (2) that secure the UV Light.
- Page 6 9700-0009-7761 (Biometrics with Biokey with UV Light) b. Rotate the UV Light module until it is detached. 3. Route and connect the Biometrics and UV Light cables to the corresponding connectors through the opening in the bracket.
- Page 7 9700-0009-7761 (Biometrics with Biokey with UV Light) 4. Snap the UV Light into the bracket. Ensure the snaps are fully engaged. 5. Secure with screws (2). 6. Gently push the biometrics and UV light cables into the rear housing.
- Page 8 9700-0009-7761 (Biometrics with Biokey with UV Light) 7. Hook the biometrics and UV Light assembly into rear housing and snap into place. 8. Secure with screw (1).
