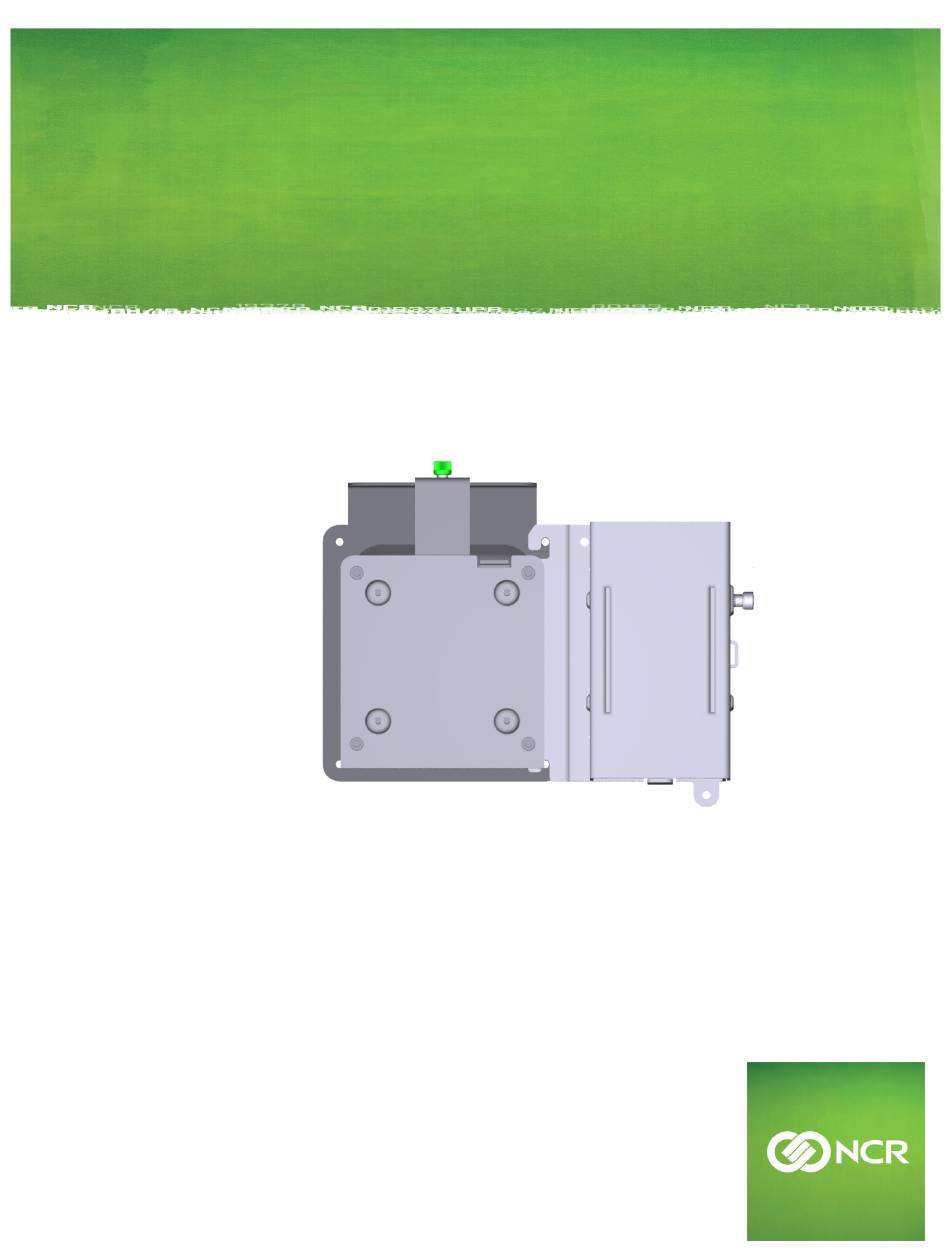

KIT  INSTRUCTIONS
Wall Mount with No Expansion
7761–K003
Issue B

Advertisement

loading
Need help?

Need help?

Do you have a question about the 7761-K003 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NCR 7761-K003

Summary of Contents for NCR 7761-K003

  • Page 1 KIT  INSTRUCTIONS Wall Mount with No Expansion 7761–K003 Issue B...
  • Page 2 NCR, therefore, reserves the right to change specifications without prior notice. All features, functions, and operations described herein may not be marketed by NCR in all parts of the world. In some instances, photographs are of equipment prototypes. Therefore, before using this document, consult with your NCR representative or NCR office for information that is applicable and current.

  • Page 3: Revision Record

    Revision Record Issue Date Remarks Jan 2016 First Issue May 2017 Removed reference to VESA...
  • Page 4 Wall Mount with No Expansion Introduction This kit provides a wall mount for the P1535/P1235 POS with no expansion module.

  • Page 5: Installation Procedure

    7761-K003 (Wall Mount with No Expansion) Installation  Procedure 1. Install the Wall Mount Spacer and Wall Mount Bracket (with thumbscrew facing up) onto the back of the terminal and secure with the supplied screws (8).
  • Page 6 7761-K003 (Wall Mount with No Expansion) 2. Secure the Mount Plate (with UP arrow pointing up) to the vertical surface using lag screws (4). Make sure you install the screws into the studs or that you use hardware of similar strength. Use the bracket as a template to mark the location...
  • Page 7 7761-K003 (Wall Mount with No Expansion) 3. Hang the terminal on the Mount Plate. a. Insert the mushroom studs on the Wall Mount into the elongated slots on the Mount Plate. b. Slide the terminal down to lock the brackets together.

  • Page 8: Power Supply Bracket

    7761-K003 (Wall Mount with No Expansion) Power Supply Bracket 1. Attach the Power Supply Bracket beside the Mount Plate. a. Loosen the screws (2) of the Mount Plate. b. Hook the Power Supply Bracket over the screws. Re-tighten the screws.
  • Page 9 7761-K003 (Wall Mount with No Expansion) 2. Insert the power supply into the bracket (AC Connector on top). 3. Install the front cover of the bracket. 4. Secure the bracket with the thumbscrew and the AC Power Cord with a cable tie.
