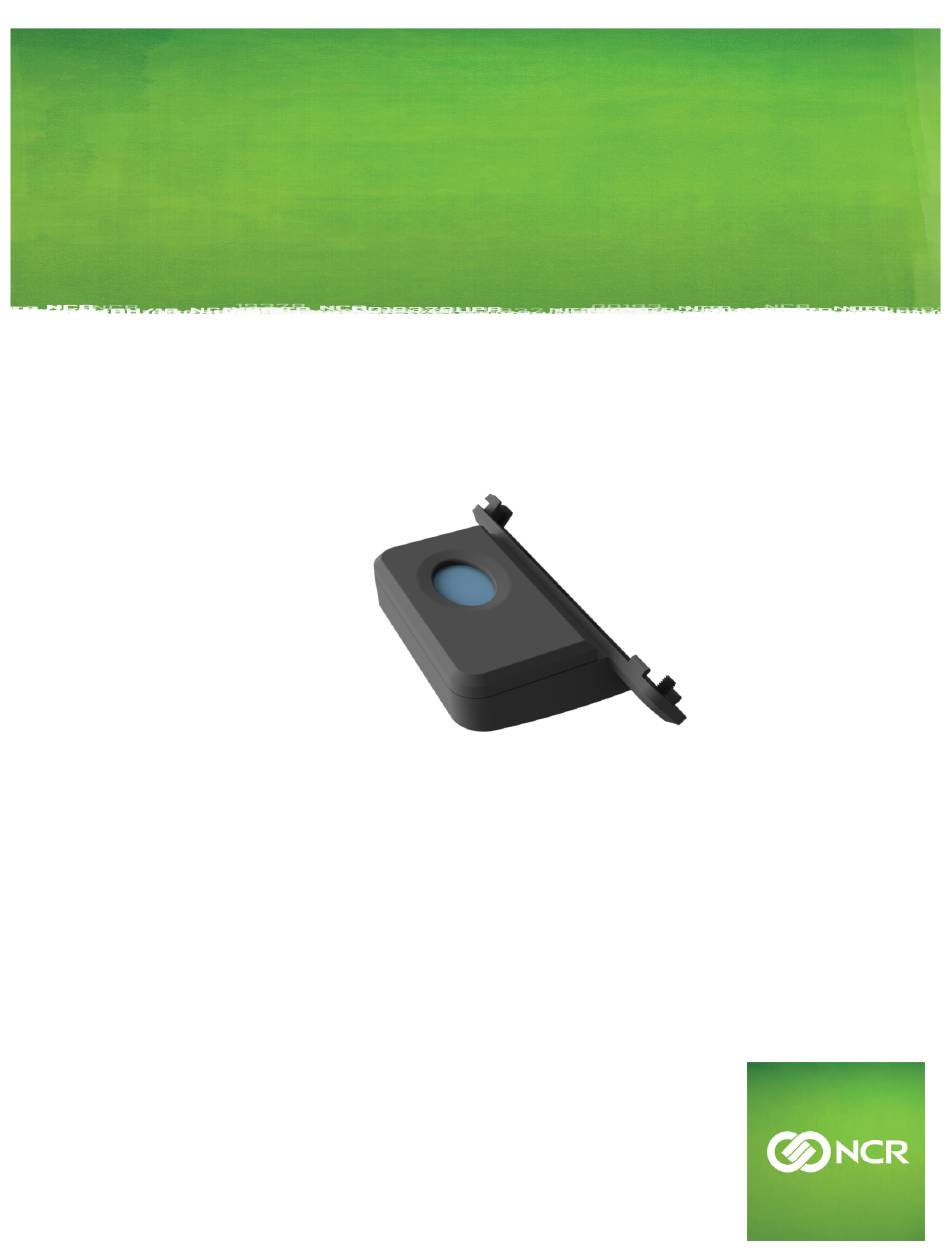

- Page 1 KIT INSTRUCTIONS Biometrics with Biokey with Bottom Blank Release 1.0 9700-0007-7761 Issue A...
- Page 2 NCR, therefore, reserves the right to change specifications without prior notice. All features, functions, and operations described herein may not be marketed by NCR in all parts of the world. In some instances, photographs are of equipment prototypes. Therefore, before using this document, consult with your NCR representative or NCR office for information that is applicable and current.
- Page 3 Revision Record Issue Date Remarks Aug 2016 First Issue...

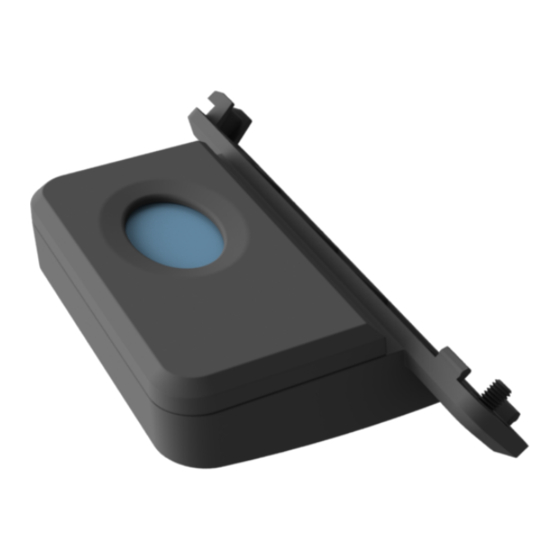

- Page 4 Biometrics with Bottom Blank Introduction This kit provides the components to add a Biometrics with Bottom Blank.
- Page 5 9700-0007-7761 (Biometrics with Bottom Blank) Installation Procedure 1. Remove the Blank Plate from the back housing. 2. Remove the Bottom Blank. a. Disengage the snaps.
- Page 6 9700-0007-7761 (Biometrics with Bottom Blank) b. Rotate the Bottom Blank until it gets detached. 3. Route and connect the Biometrics cable through the opening in the bracket.
- Page 7 9700-0007-7761 (Biometrics with Bottom Blank) 4. Snap the bottom blank into the bracket. Ensure the snaps are fully engaged. 5. Gently push the cable into the rear housing. 6. Hook the Biometrics module into the rear housing and snap into place.
- Page 8 9700-0007-7761 (Biometrics with Bottom Blank) 7. Secure the biometrics assembly with screw.
