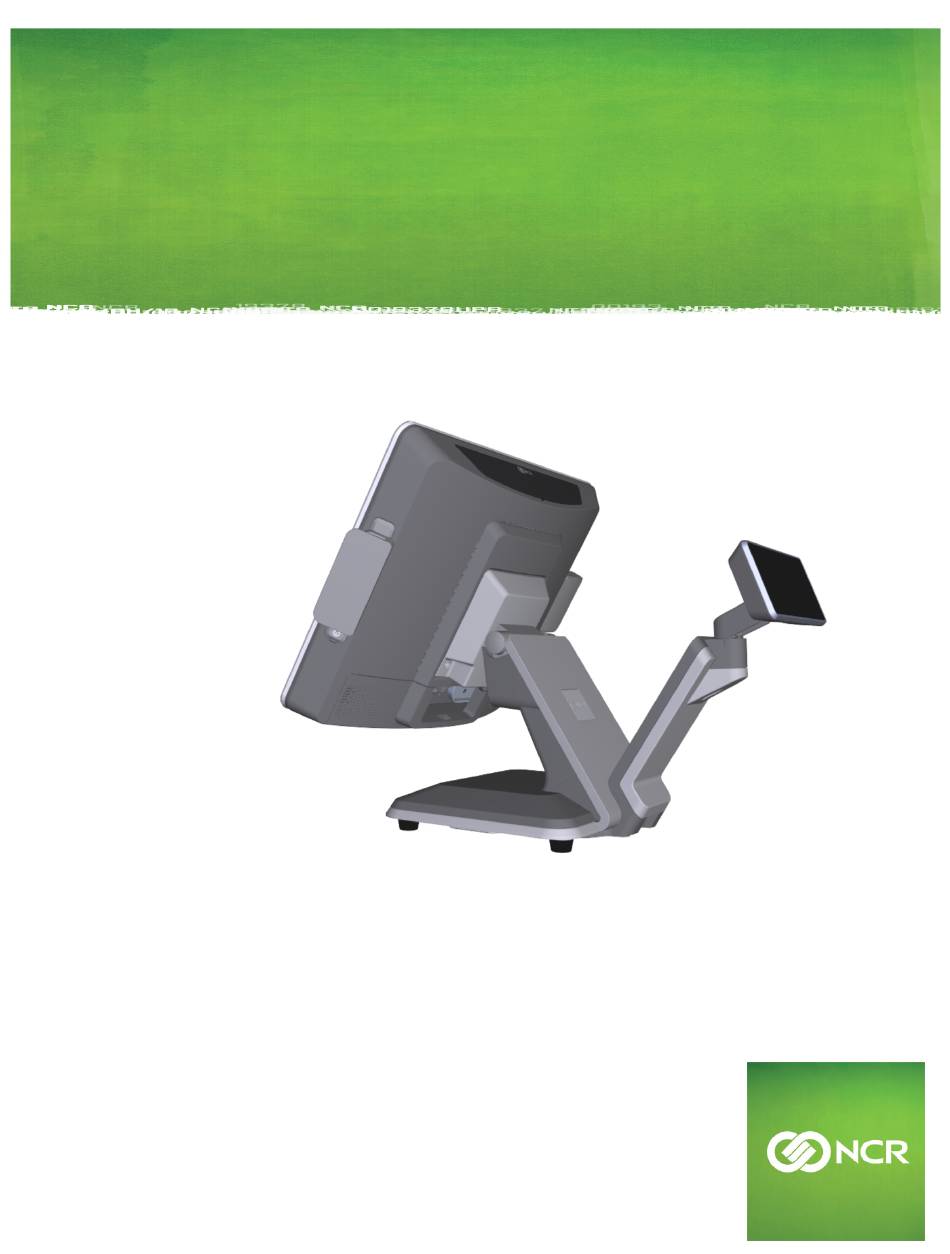

- Page 1 KIT INSTRUCTIONS 2x20 Customer Display on Arm Extension Mount 7761–K460 Issue A...
- Page 2 NCR, therefore, reserves the right to change specifications without prior notice. All features, functions, and operations described herein may not be marketed by NCR in all parts of the world. In some instances, photographs are of equipment prototypes. Therefore, before using this document, consult with your NCR representative or NCR office for information that is applicable and current.
- Page 3 Revision Record Issue Date Remarks Jan 2016 First Issue...
- Page 4 2x20 Customer Display on Arm Extension Mount Introduction This kit provides the components to add a 2x20 customer display. The display is mounted on an Arm Extension connected to the back of the P-Series Stand.
- Page 5 7761-K460 (2x20 Customer Display on Arm Extension Mount) Installation Procedure 1. Pivot the display back. 2. Remove the Upper Stand Cover by pivoting it away from the stand. The cover has a simple snap fit connection at the top.
- Page 6 7761-K460 (2x20 Customer Display on Arm Extension Mount) 3. Loosen the thumbscrew to open the Cable Door. 4. Route the USB Cable up through the stand and install the Spacer and 2x20 Customer Display Assembly onto the bottom of the stand and secure with screws (4).
- Page 7 7761-K460 (2x20 Customer Display on Arm Extension Mount) 5. Loosen the screw on the Terminal Cable Cover. To open, press on the indentations in the Cable Cover to unlatch the cover and then pivot the cover open. 6. Route the cable up through the P-Series Stand and connect it to the 12V USB + Power connector.
