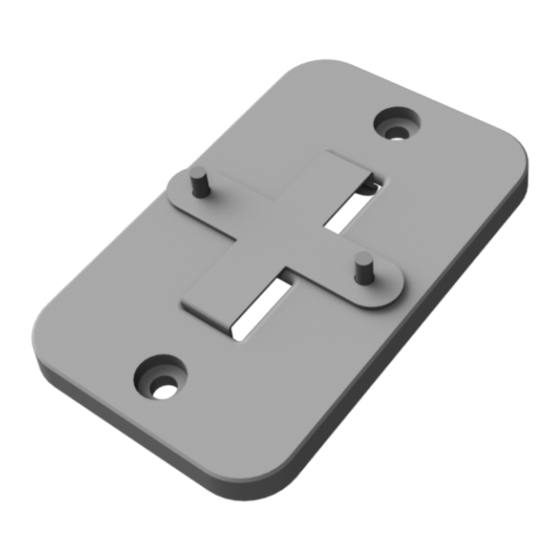

External 2in1 SignIn Device and Biometrics Mount Introduction This kit provides the mounting kit to install an external 2in1 signin device or biometrics.
Page 5
External 2in1 SignIn Device and Biometrics Mounting Kit Installation Procedure 1. Secure the mounting plate to the wall or countertop with screws (2). 2. Secure the External 2in1 SignIn Device or Biometrics to the mounting clip with screws (2).
Page 6
External 2in1 SignIn Device and Biometrics Mounting Kit 3. Snap the mounting clip to the plate to secure assembly. 4. Connect the USB cable to the POS.
